US$70,000.00-120,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Plastic Processed
Polyester
Product Type
Granulating Extruder
Assembly Structure
Integral Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Transport Package
Pallet; Wooden Box; Container
Production Capacity
1000 Units

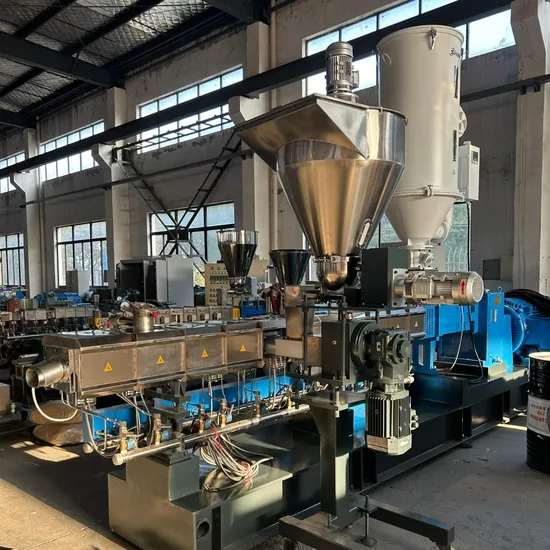

Product Description
Series standard configuration products
1. Suitable for economical granulation units with low to medium output
2. The transmission box adopts optimized design made in China, with medium torque, strong load-bearing capacity and other operational performance
3. Adopting wear-resistant, high-precision screw components and cylinder bodies to ensure the stability of quality.
4. Optimize the configuration design of the entire unit according to customer requirements
Model Mode | Screw diameter mm | Length-to-diameter ratio LD | Screw speed RPM | Motor power KW | Specific torque Nm/cm ³ | Yield kg/h |
SHJ-S-20 | 21.7 | 32-48 | 600 | 4 | 4-6 | 2-15 |
SHJ-S-25 | 25.0 | 28-64 | 600 | 4-7.5 | 4-6 | 5-60 |
SHJ-S-35 | 35.6 | 28-64 | 400/600 | 15-18.5 | 4-6 | 30-80 |
SHJ-S-50 | 50.5 | 28-64 | 400/600 | 45-75 | 4-6 | 150-250 |
SHJ-S-65 | 62.4 | 28-64 | 400/600 | 75-110 | 4-6 | 250-300 |
SHJ-S-75 | 71.0 | 28-64 | 400/600 | 90-160 | 4-6 | 300-600 |
SHJ-S-95 | 92.4 | 28-64 | 400/600 | 132-280 | 4-6 | 900-1200 |
SHJ-S-135 | 133.0 | 28-48 | 400/500 | 550-750 | 4-6 | 2500-3500 |
