Vt Type 3/4 Ton Lever Manual Chain Hoist
| US$33.14 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
PL2
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
12m
Chain Falls
2
Certification
CE, ISO9001:2000, GS
Condition
New
Color
Orange
Capacity
0.75 T 1.5 T 3 T 6 T
Hmin
3m 6m 9m 12m or More
Colour
Orange or as Your Request
Chain
G80 Black Lifting Chain
Transport Package
Carton
Specification
CE ISO9001 GS
Trademark
HAIYAN
Origin
China
HS Code
8425190000
Production Capacity
1000PCS/Week
Product Description
VT type 3/4 ton lever manual chain hoistVt leverblock features as belows: 1. capacity from 250kg to 9ton .
2. lifting height 1.5meters or as customers' request .
3. hoist covers are made of high strength alloy steel , and impact-resistance, well safety the inside parts .
4. upper and lower hooks are made of high strength casted alloy steel and heat treated , which prevent the hooks breaking even when overloading , with safety latch .
5. Load chain : G80 high strength alloy steel .
6. overload safetyion is optional .
Specifications of VT lever block as belows:
| Modle | VL0.75 | VL1.5 | VL3 | VL6 | VL9 | |
| Capacity TONS | 0.75 | 1.5 | 3 | 6 | 9 | |
| Standard lift M | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test load KN | 11 | 22 | 44 | 73.5 | 110 | |
| Headroom(drawn close up) Hmin MM | 315 | 365 | 490 | 620 | 800 | |
| Effort required to lift max. load N | 134 | 196 | 324 | 343 | 357 | |
| No. of falls of load chain | 1 | 1 | 1 | 2 | 3 | |
| Load chain MM | 6×18 | 8×24 | 10×30 | 10×30 | 10×30 | |
| Length of lever handle MM | 288 | 418 | 418 | 418 | 418 | |
| Dimensions(mm) | A | 147 | 178 | 203 | 203 | 203 |
| B | 87 | 105 | 110 | 110 | 110 | |
| C | 126 | 146 | 193 | 235 | 337 | |
| E | 26 | 31 | 40 | 45 | 57 | |
| Net weight KG | 7 | 11 | 20 | 30 | 54 | |

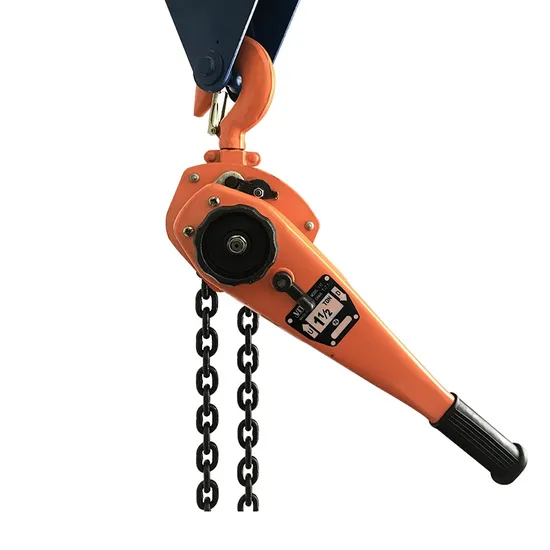

Vt lever block pics:
For newest price feel free to contact us!
