Horizontal Numerical Control Lathe 6150-1000

Product Description

1.The surface of the bedways is supersonic frequency hardened and precision grinding.
2.Independment headstock, also all gears and high-low headstock can be optional to fit different workpiece cutting.
3.Spindle bore 80mm,hydrualic chuck,4/6/8 station electrical and hydraulic chuck can be chosen.
4.Kinds of appearance, contral sysem and intergrated stand can be chosen.

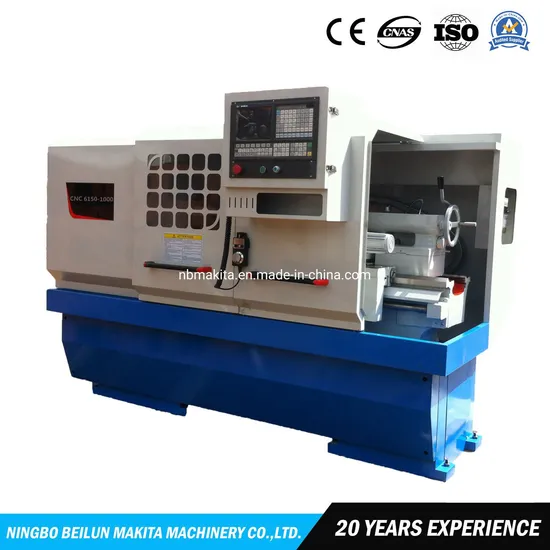

Product show
Specification

Item	Speicification	CNC6150
Capacity	Max swing overbed	500mm
	Max.swing over slide	250mm
	Bed width	360mm
	Max.workpiece length	1000mm
Spindle	Spindle transmission form	Spindle infinitely variable speed
	Maximum spindle speed	300-2000r/min
	Dia of spindle bore	80mm
	Spindle taper	MT6
	Sping nose type	ISO-A2-6
	X-axis rapid traverse	8m/min
	Z-axis rapid traverse	10m/min
	X-axis rapid traverse	250mm
	Z-axis rapid traverse	1000mm
Acurracy	Positioning accuracy	0.005mm
	Repeat positon accuracy	0.01mm
Chuck	Chuck type	Manual chuck (standard)
		3 jaw hollow Hydarulic chuck (optional)
	Chuck size	10inch 250MM
Tailstock	Type	Manual tailstock(standard)
	Sleeve diameter	65mm
	Sleeve travel	130mm
	Sleeve taper	MT4
Tool	Tool post/turret	Four station electric turret(standard)
		8 station electrical turret(optional)
	Shank size	25*25mm
Other	Min setting unit	X axis:0.001mm, Z axis:0.001mm
	Spindle motor power	5.5KW frequency main motor
	Dimension(L*W*H)	2450*1500*1800mm
	Weight	1450/1750kg

Standard Accessories:
1.Three jaw manual chuck 10inch
2.Coolant water pump
3.Leadscrew cover
4.One set of tool box
5.Oil gun
6.Work light
7.Standard safty cover
8.Paddings
9.Dead center and cener sleeve
10.Operation manual /packing list/test certificate
Optional Accessories:
1.Four jaw manaul chuck 10 inch
2.Steady rest&follw rest
3.Face plate
4.Live center(MT-4)
5.Drill chuck set
Our Company
Makita Machinery Co., Ltd. was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger.
Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence.
Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents.
Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise.
Packing & Delivery
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
Delivery Details : 15-60 days after PI confirmed and deposite received.
Quanlity& Honor
Exhibition photos
FAQ Q: Are you trading company or manufacturer ?
A: We are factory. Beilun makita machinery is a brother manufacture as shunfa,haishun and haihao company.In fact,we do export from 2008 under haishun company, our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.

Q: How long is your delivery time?
A: Generally it is 15-60 days ,it is according to different machine model and different configuration and order quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.

Q: Where is your factory located ? How can I visit there ?
A: We are located in Ningbo City. Which is only 2 hours' away from Shanghai by train.
Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.
