Basic Info.
Paper Thickness Range
30-210GSM(Carbon Paper, Offset Printing Paper, COA
Max. Counting Speed
1500PCS/Min
Paper Size
Min. 100×150mm, Max. 600×600mm
Paper Stacking Height
300mm(Max.)
Power Supply/Voltage
AC220±10V, 50Hz
Transport Package
by Strong Seaworthy Wooden Cases
Specification
900(W)× 1080(L)× 1500(H)
Product Description

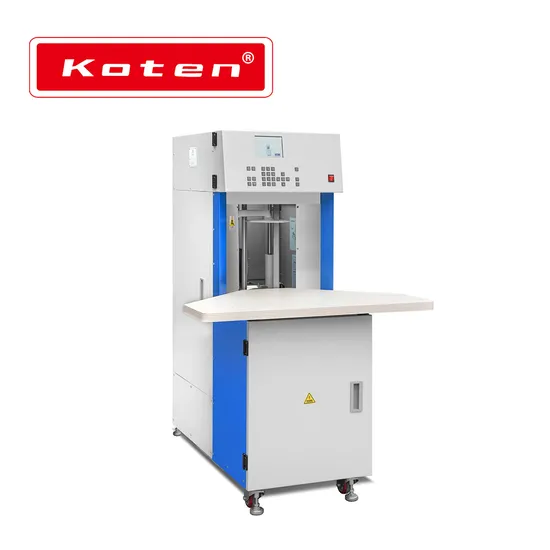

Product Description The paper counting machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. With superior performance, it has a 5.6-inch color screen computer, intuitive and simple user machine interface and adopts imported servo motor control the main motor. Features 1. Any kind and any thickness of paper within the parameter range can be precise and high-speed counting. Special paper depending on the actual situation.
2. In addition to the standard paper counting mode, there is the random paper label insert function. It can edit and save 99 program groups, each program group can edit a different number of papers; The paper quantity detection function is for the check whether the predetermined number and actual number matches or not; The specified number counting function is for sorting out the required number of paper from the paper-pile.
3. Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
4. It has a paper label fast changing structure. Detailed Photos
Main Specifications
Paper Thickness Range
| 30-210gsm(Carbon paper, offset printing paper, coated paper,etc.)
|
Max. Counting Speed
| 1500pcs/min
|
Paper Size
| Min. 100×150mm, Max. 600×600mm
|
Paper Stacking Height
| 300mm(Max.)
|
Power Supply/Voltage
| AC220±10V, 50Hz
|
Motor
| 0.4KW
|
Collecting Table Width
| 600×600mm(collecting table can be customized)
|
Collecting Table Height
| 760mm
|
Machine Size
| 900(W)×1080(L)×1500(H)
|
Machine Weight
| 230kg
|
Lable for Paper in Pile
| Width 5mm, Length 5-7cm(total label length: 70m)
|
Consumed Power
| 600W
|
Main Parameter
Configuration
| Country/Region
| Brand&Properties
|
CPU
| America
| ARM Core CPU Frequency:400MHZ
|
SDRAM
| Korea
| SAMSUNG DDR2,64MB
|
FLASH ROM
| Korea
| SAMSUNG 64MB
|
Paper Lift Motor
| China
| Listepping moto China
|
LCD
| TaiWan
| Foxconn 5.6 Inch
|
KEYPAD
| Japan
| OMRON
|
Paper Count Motor
| China
| Invt
|
Air Pump Sensor
| China
| Shanghai Yunwang
|
IF Motor
| Japan
| OMRON
|
Hall Sensor
| Japan
| OMRON
|
Switch Power
| Taiwan
| Meanwell
|
Cable
| America
| TE
|
