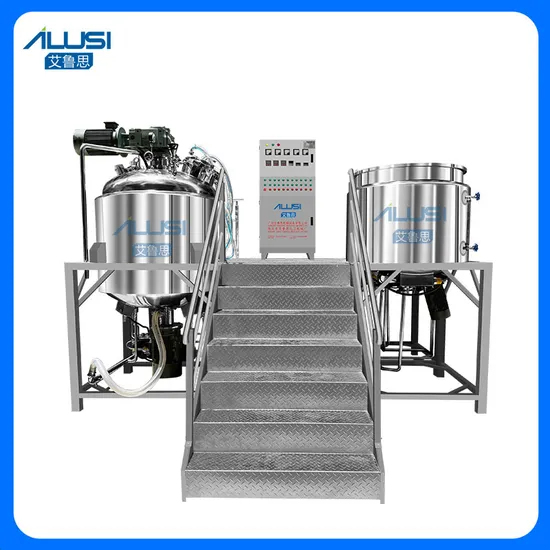

Ailusi Higher Shear Homogenizer Machine High Efficiency Vacuum Emulsifier Machine

Ailusi Higher Shear Homogenizer Machine High Efficiency Vacuum Emulsifier Machine

US$8,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
AVE
Application
Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Chemical, Daily Chemical, Food, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Buttons/PLC Control
Cooling Method
Water Cooling
Heating Method
Electric Heating/Steam Heating
Main Material
Stainless Steel
Mixing Capacity
100L-Above
Mixing Drum Shape
Drum
Speed Control
Variable Speed
Speed Range
0-62rpm
Stirring Type
Spiral
Temperature Control
with Cooling System/ with Heating
Working
Shear Mixer
Product Name
Vacuum Emulsifying Mixer
Model No.
Ave
Material Processed
Chemicals, Food, Cosmetic
Jacket
3 Layers
Warranty
1 Year
Motor Brand
ABB/Simense
Applicable Industries
Hotels, Garment Shops, Building Material Shops
Function
Mixing, Homogenizing, Emulsion
Discharge
Tilting Discharge and Stator Homogenizing
Voltage
120V/220V/380V/440V
Layout Type
Verticle
Material
SUS304, SUS316L
Marketing Type
Ordinary Product
Mixing System
0-62rpm
Homogenizer System
0-2880rpm
Transport Package
Wooden Box
Specification
2200*650*2200mm, 650kg
Trademark
AILUSI
Origin
China
HS Code
8479820090
Production Capacity
1000 Pieces/Year

Product Description

The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory.Especially designed for the production ofstable emulsions creams, milk, gels, balms,lotions, ointments, toothpastes,etc. havingextremely small particles for chemical,cosmetics, pharmaceutical and food industries.
ModelCapacityStirringHomogeneousOil and water potVacuum pump
KWSpeedKWSpeedCapacityKWSpeed
AVE-200L60-200L30.62rpm5.50-2880rpm80L/180L0.75/0.751440rpm1.5
AVE-250L60-250L30.62rpm7.50-2880rpm100L/225L1.5/1.51440rpm1.5
AVE-300L90-300L30.62rpm7.50-2880rpm120L/270L1.5/1.51440rpm1.5
AVE-350L100-350L30.62rpm7.50-2880rpm140L/315L1.5/1.51440rpm2.2
AVE-500L150-500L5.50.62rpm110-2880rpm200L/450L2.2/2.21440rpm2.2
AVE-1000L300-1000L7.50.62rpm150-2880rpm400L/900L2.2/2.21440rpm3
AVE-2000L600-2000L110.62rpm18.50-2880rpm800L/1800L2.2/41440rpm4
AVE-3000L800-3000L110.62rpm220-2880rpm1200L/2700L2.2/51440rpm5.5
AVE-5000L1500-5000L220.62rpm300-2880rpm2000L/4500L4/7.51440rpm7.5
1. DOUBLE JACKET HEATING AND COOLING SYSTEM
The pot body adopts three layers of stainless steel imported plate welding composition, tanks and pipes for the mirror polishing, in line with GMP requirements; according to the process requirements, the tank can be heated and cooled materials, steam heating and electric heating.
2. MIXING SYSTEM One-way frame mixing with scraping edge and bottom, customized two-way screw belt mixing available, so that make the material fully and quickly fused and uniform, the contact material is made of SS316L, the scraper ismade of PTFE, frequency conversion speed control.
3. HOMOGENIZING SYSTEM In the narrow gap between the stator and rotor, it is subjected to hundreds of thousands of times of hydraulic shear centrifugal extrusion, impact, tearing and other comprehensive effects per minute,
instantly and uniformly dispersed and emulsified, and after high-frequency cycling, it obtains fine and stable high-quality products without air bubbles.
4. ELECTRIC BOX CONTROL SYSTEM Optional button control system/Siemens touch screen PLC system; in order to ensure the stability of the whole set of machine control, the electrical appliances are imported configuration, which can reach the international standard.5. OUTLET
Bottom top valve outlet
Top of the valve is flush with the pot
Quick discharge
No residue6. WATER AND OIL TANKS MIXING SYSTEM
With stirring and dispersing function, the material can be dissolved and pre-treated first to improve production efficiency; triple sandwich structure, optional electric heating or steam heating, in line with CMP standards. AILUSI.PROFIL
Guangzhou Ailusi Machinery Equipment Co., Ltd. was established in 2014, the factory was founded in 2007, catering primarily to industries such as cosmetics, food. With advanced technology, production and inspection equipment and the specialized processes. We have garnered praise and trust both domestically and internationally. Moving forward, we aim to uphold tradition, foster innovation, and collaborate closely with our customers for a prosperous future together.1.Why choose us?
1.1-With industry-leading technical solutions and rich experience, we are able to provide tailor-made services;
1.2-Our team has professional knowledge and innovative ability, committed to providing customers with the best solutions, can help your company quickly improve production efficiency, optimize costs, so as to stand out in the fierce competition in the market;
1.3-Our products undergo strict quality control to ensure superior quality and have good after-sales service;
1.4-We focus on customer needs, communication and collaboration to ensure the successful implementation of the project.
1.5-If you are in the start-up stage and seeking capacity expansion, we can customize a whole efficient production line service program for you, and we are committed to the design and planning to the installation and commissioning, and then subsequent after-sales service support, will be the industry's top professional standards, to ensure that your production line can run smoothly!
2.What about after-sales service?
2.1- Before leaving the factory, the factory will strictly test whether the equipment operates normally or not, and before shipping, we will operate and debug the equipment again to ensure that the appearance of each machine has no external damage and functions normally, and provide operation videos and pictures to customers to confirm that there is no error, and then packaged for shipment.
2.2-For equipment that requires on-site installation and commissioning training, we can provide professional technicians to the customer's factory for installation and training teaching services, in the process of installation and commissioning, the technicians will provide on-site guidance to help customers familiarize with the operation and maintenance of the machine.
2.3-When customers encounter problems in the process of use, we provide a variety of convenient solutions [phone, e-mail, WeChat, video instruction and other ways]
3.How do you control the quality and delivery?
3.1-If you are worried about the quality, we can sign a quality assurance certificate, which can guarantee the interests of customers and ensure that our commitment is real and effective.
3.2-We will pack each machine in export wooden case before shipment, and provide pictures before and after packing to our customers to make sure the quality is worry-free before arranging shipment.
4. What about warranty and spare parts?
4.1-We offer a standard warranty of one year from the date of purchase. Within this one year, if the product has quality problems that are not caused by human damage, we will be responsible for repairing or replacing the corresponding parts free of charge.
4.2-We ensure that we provide our customers with sufficient spare parts support. During the warranty period, if the equipment needs to be replaced due to maintenance, we will provide the necessary spare parts to ensure that the product can be quickly returned to normal use. At the same time, we also provide a spare parts purchasing service for customers who exceed the warranty period, and we undertake to provide them at cost.
4.3 - We also offer a lifetime maintenance service for our machines! Even if the machine is out of warranty, you can contact us at any time to solve any problem.
5. Are your machines difficult to operate? How do you teach us how to use the machine?
Our machines are simple to operate and easy to learn; each machine comes with a detailed instruction manual and operating video, which contains a description of the machine's functions, operating procedures, safety precautions, machine maintenance, and troubleshooting guides.
6. Can you customize the machine?
As a machine manufacturer for 20 years with a professional engineering team and advanced production facilities, we have the skilled OEM know-how to design and build machines to your specific requirements that meet your standards.
7. What about delivery time?
In stock machines: 2-7 working days; Usually 7-40 working days (depending on the product).
