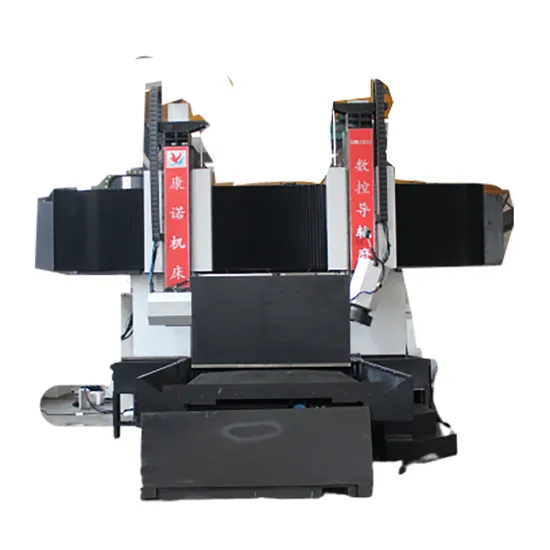

Customized Turkey Horizontal 2000× 1200 CNC Gantry Grinding Machine

Product Description

Product Specification

Parameter/Model		GM2015
Accuracy	Positioning accuracy	0.01/300mm
	Repeat positioning accuracy	0.005mm
orktable	Worktable size	125*150mm
	bed size	12-120mm
	Max. load	150Kg
Travel	X/Y/Z axis travel	100/120/140mm
	Gantry width	105mm
	Beam to worktable	100mm
	Spindle nose to worktable	140-280mm
Feed	Max. feeding speed G00	12m/min
	Max. working speed G01	8m/min
	X/Y/Z axis motor power	400/400/400w
Spindle	Spindle motor power	1.5KW
	Spindle Max. speed	24000rpm
	Tool holder	ER16(Φ3.17-Φ8)
Common	Power supply and total capacity	1P/220V/50Hz/5KVA
	Machine weight	5000Kg
	Dimension	1010*1050*1270mm
Main parts	Controller	Syntec 21MA/Taiwan
	AC servo motor(Driver)	Yaskawa/Japan
	Spindle inverter	Inovance/China
	Linear guide way	Hiwin,PMI/Taiwan
	Ball screw	Hiwin,PMI/Taiwan
	Electronic hand-wheel	EHDW-BA5S-1 Future/Taiwan
	Lubrication system	YET-A2P2 ISHAN/Taiwan

Product Details

Hot Products

Company Information
Company information
Cangzhou Kangnuo CNC Machine Tool Manufacturing Co., Ltd. is located in Botou CNC machine tool Industrial Park, Hebei Province,The company set r & D, design, production, sales, service in one, has a high-quality staff. The company's main products are: CNC screw milling machine, vacuum pump screw special CNC spiral rotor milling machine, CNC screw turning and milling compound machine tool, CNC gantry grinder, CNC worm grinder, Special cnc spiral screw compressor rotor milling machine, CNC internal thread milling machine CNC spiral rotor grinder, CNC whirlwind milling machine, cnc milling machine, various types of semi-finishing convex contour shape of the camshaft, and can realize automatic clamping, cutting all. in addition our company also produces multi-station CNC machine tool, mainly used in the pump body, valve body and machining of class multistep, a clamping, Can complete a number of end face, flange, drilling and other processes of processing. High processing efficiency, can effectively
save production costs, improve processing efficiency.
Kangnuo machine stable performance, high technology content, and a number of well-known enterprises to maintain long-termcooperation. We can also make various special machine tools according to user requirements, welcome foreign customers to negotiatecooperation.
Package&Transport


FAQ

1: How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or
you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in machines ,such as CNC screw milling machine ,vacuum pump screw special CNC spiral rotor milling machine
,Turning Milling Machines .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Botou CNC machine tool Industrial Park, Hebei Province China. You are warmly welcomed to visit us.
4: What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set
