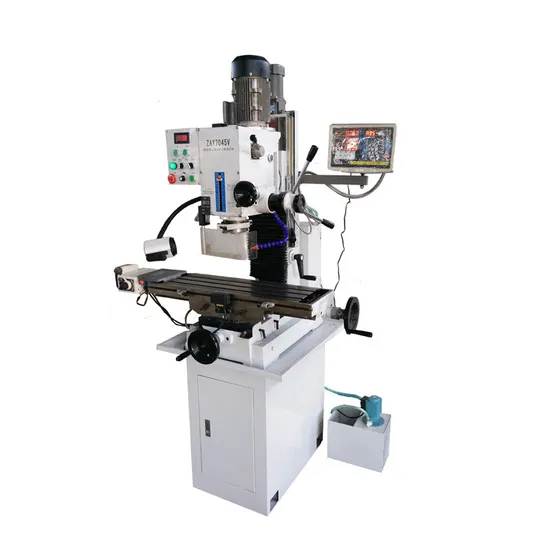

China Conventional Milling Machinezx7550cw Drilling and Milling Machine Price
| US$2,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Power Type
Electric
Drill Capacity
16mm-35mm
Mill Capacity
30mm-150mm
Driver Type
Gear
Transport Package
Wooden Box
Specification
16mm-45mm
Trademark
boli
Origin
China
HS Code
8459290000
Production Capacity
5000
Product Description
BF20/BF20L/BF25/BF25L/BF32/BF32L Drilling and Milling MachineConvincing arguments: quality, efficiency and price:
> Spindle sleeve feed via star grip(drilling)
> Fine crossfeed of spindle sleeve when milling
> Feed spindles can be adjusted without clearance due to adjustable spindle nuts
> Stable and precise dovetail control adjustable with V-ledges
> Expansion bellow as guide protection
> Easy and clear operation due to adjustable control panel
> All travels are readable on scales
> Electronic infinitely variable drive
> The drill head can be inclined by ±90°, thus permitting milling and drilling operations at any angular position
> Accurate infeed by positioning graduated collar on any handwheels
Standard Accessories
> Draw bar
> Morse taper MT2/B16-M10
Optional Accessories
> Morse collet chuck MT2/M10
> End mill cutter kit HSS 12pcs/set
> Keyless chuck 1-13mm/B16
> Milling chuck kit Q24-16(8pcs/set)
> Machine vice QG100
> Face milling cutter ø63/MT2
> Stand & chip tray
Technical Parameters
| Model No. | Unit | BF20/BF20L | BF25/BF25L | BF32/BF32L |
| CAPACITY | ||||
| drilling capacity(max.) | mm | Ø20(0.79") | Ø20(0.79") | Ø32(1.26") |
| milling capacity cutter head(max.) | mm | Ø63(2.48") | Ø63(2.48") | Ø76(3.00") |
| milling capacity end mill cutter(max.) | mm | Ø20(0.79") | Ø20(0.79") | Ø20(0.79") |
| SPINDLE HOLDING FIXTURE | ||||
| spindle taper | MT2/M10 | MT3/M12 | MT3/M12 | |
| sleeve diameter | mm | Ø60(2.36") | Ø60(2.36") | Ø70(2.76") |
| sleeve travel | mm | 50(1.97") | 50(1.97") | 50(1.97") |
| distance spindle-column | mm | 201(7.91") | 201(7.91") | 240(9.45") |
| DRILL-MILL HEAD | ||||
| spindle inclined angle | ° | ±90 | ±90 | ±90 |
| spindle speed | rpm | L: 90-1480 H: 150-3000 | L: 90-1480 H: 150-3000 | L: 50-2250 H: 50-5500 |
| CROSS TABLE | ||||
| tabel(L×W) | mm | 500×180/700×180(19.69"×7.09"/27.56"×7.09") | 500×180/700×180(19.69"×7.09"/27.56"×7.09") | 700×210/900×210(27.56"×8.27"/35.43"×8.27") |
| Y-axis travel | mm | 175(6.89") | 175(6.89") | 210(8.27") |
| X-axis travel | mm | 280/480(11.10"/18.90") | 280/480(11.10"/18.90") | 450/650(17.72"/25.59") |
| Z-axis travel | mm | 380(14.96") | 380(14.96") | 380(14.96") |
| T-slot size/distance/number | mm | 12/63/3 | 12/63/3 | 12/63/3 |
| distance spindle-cross table(max.) | mm | 380(14.96") | 380(14.96") | 360(14.25") |
| ELECTRIC SUPPLY | ||||
| motor | W | 850 | 850 | 1100 |
| DIMENSIONS AND WEIGHT | ||||
| size(L×W×H) | mm | 722×550×770 | 722×550×770 | 772×870×710 |
| packing size(L×W×H) | mm | 620×560×920 | 620×560×920 | 710×890×860 |
| N.W./G.W. | kg | 105/145 | 105/145 | 220/265 |
