5000K Aluminum Housing Indoor Warehouse Factory 200W LED High Bay Lights

5000K Aluminum Housing Indoor Warehouse Factory 200W LED High Bay Lights

US$100.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
OAK-HBL
Power
90W-1000W
Usage
Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel, Hangar, Working Shop, etc.
Lifespan
100,000hrs
IP Rating
IP67
Certification
CE, C-tick, EMC, ETL, LVD, RoHS, SAA, SASO, Pvoc, Coc, etc.
Beam Angle
15, 25, 40, 60, 90, 120 Degree
LED Chips
CREE, Brideglux
Power Supply
Meanwell Driver
Lamp Wattage
90W, 100W, 120W, 150W, 200W, 240W, 300W, 360W, etc
Luminous Efficiency
170lm/W
Working Voltage
100-305V AC
Housing Material
Aluminum
CCT
1700K-10,000K
CRI
>80ra
PF
>0.95
IP Rate
IP67
Ik Class
Ik08
Color
Silver, Black, and Customized Colors
Dimming Options
1-10V / PWM / Dali
Working Temperature
-40c~+60c
Shipping Ways
by Sea, Air, Express, Train, etc
Warranty
5 Years
Transport Package
Cardboard Box or Wooden Case
Specification
1pc/box or 1pc/carton
Trademark
OAK LED
Origin
China
HS Code
9405429000
Production Capacity
50000 PCS/Year

Product Description

Product Description

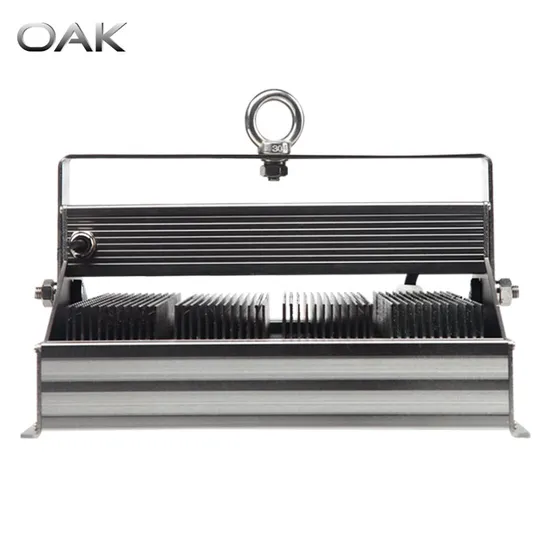

5000K Aluminum Housing Indoor Warehouse Factory 200W LED High Bay Lights
1. CREE/Bridgelux COB LEDs from USA original, in-bulit Meanwell power supply.
2. Optical PC lens and leds 100% match to make the light more focused, reducing light loss.
3. Anti-glare lighting system designed for interior and exterior lighting projects.
4. 5-10 times brighter than conventional LED lamps, 200W LED High Bay Lights can directly replace 400W-1000W metal halide/halogen lamps.
5. Different dimming system like DALI, DMX, PWM remote dimming for option, easy to control the on/off of LED High Bay Lights.
6. Special thermal system to increase heat dissipation and extend lifespan of OAK LED High Bay Lights.
7. Lifespan over 100,000 hours, 5 Years warranty with 100% after-sales service.
8. Available to provide customized lighting design for sport stadium, airport/seaport, warehouse/factory, workshop/hangar, highways/crossroads, indoor and outdoor lighting projects.
Product Parameters

Supporting to offer 90W-1000W LED High Bay Lights according to to different lighting requirements.

Product Name: High Brightness OAK LLED High Bay Lights
Power Standard wattage: 90W/100W/120W/150W/160W/200W/240W/300W/360W/480W
Customized wattage: >500W
LED Source Cree/Bridgelux COB LEDs
Luminous Efficiency 170lm/w
Power Supply Meanwell driver
Working Voltage 100-305V AC, 50~60Hz
Beam Angle 15°, 25°,40°,60°,90° (for option)
Color Tempereature 2700K-6500K (Cree), 1700K-10,000K (Bridgelux)
Housing Material Aluminum+PC lens
CRI >80Ra
Dimming Function DALI, DMX, PWM dimming (for option)
Power Efficiency >95%
Operation Temperature -40C~+60C
Waterproof Rating IP66~67
Lifespan 100,000hrs
Warranty 5 Years


Project References
OAK LED High Bay Lights mainly used for warehouse, factory, workship, hangar, shopping mall, exhibition, mine, gymnasium, tunnel, etc, different applications.
If your current project need any lighting adivde, OAK LED can provide the customized lighting plan for you basing on your project information.

About Us

OAK LED Co. LTD, a factory specialized in manufacturing high quality LED lights and offering the best lighting solution for different sports lighting, airports/seaports lighting, warehouse/factory lighting, highways/crossroads lighting, square/tower facade lighting, etc.
Products scope involves LED Flood Light, LED Sports Lights, LED Street Lights, LED High Bay Lights, LED Studio Lights, All-in-one Solar Street Lights, etc.

FAQ
Q1: Are you the manufacturer or trading company?
A1: We are manufacturer. Welcome to inspect our factory at anytime.
Q2: Can you provide customized services?
A2: Yes, we can provide one-stop solutons, such as OEM/ODM service, lighting solution, print customized logo, change color, etc.
If any need, please inform us formally before production.
Q3: What is your terms of payment?
A3: In general, we accept T/T and PayPal. For regular orders, 50%-60% deposit before production, clearing balance payment before shipment.
Q4: What about the lead time?
A4: For regular orders, 5-7 working days for sample, 10-15 working days for bulk order.
Q5: Do you offer guarantee for the products?
A5: Yes, we will provide professional after-sales service and 5 years warranty.
If the lamps is not damaged by human, we can send free spares or full lighting fixture for replacement during the period of 5 years warranty.
WELCOME TO CONSULT WITH OAK LED IF YOU HAVE ANY PURCHASING NEED OR TECHNICAL PROBLEMS.
