Large Output Vibrating Screen in Sand Crushing and Screening Plants

Large Output Vibrating Screen in Sand Crushing and Screening Plants

US$800.00-2,000.00 1 set (MOQ)

Basic Info.

Model NO.
DY-1000-1S
Application
Vegetables, Flowers, Fruit
State
Granular
Validity
Long-term
Physics State
Solid
Infection On Soil
Rotary Vibrating
Chemical Character
Chemical Neutral
Raw Material
Manure, Municipal Sludge, Garbage, Industrial Waste, Agricultural Waste
Type
Sieving Machine
Product Name
Rotary Vibrating Screen
Material
Carbon Steel or Stainless Steel
Motor
Vertical Vibrating Motor
Power
1.5kw
Voltage
380V
Warranty
18 Monthes
Capacity
100-300kg/H
Layers
1--5layers 3 Layers Suggested
Noise
< 80dB
Mesh Size
2-300
After-Sales Service Provided
Online Support, Video Technical Support
Weight
150kg
Transport Package
Wooden Box, Container
Specification
1160*1160*880
Trademark
DY-1000-1S
Origin
Henan
HS Code
8474100000
Production Capacity
100sets/Month

Product Description


Product Description
Introduction

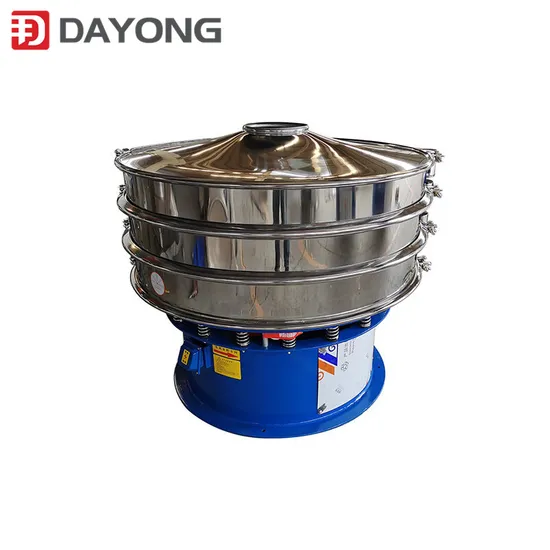

Rotary vibrating screen uses upright motor as the source of vibration, and it is equipped eccentricity hammer on the both sides of motor. Adjust the phase angle on the both sides of the top and bottom to change the movement orbits of the screen surface. It can be equipped with screen cloth cleaning device to avoid clogging effectively. The vertical horizontal and inclined movement of the machine, the track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.
Detailed Photos
Main Features 1.Small size, light weight, saving space.
2.The direction of the discharge port can be adjusted, coarse and fine material automatically discharged.
3.No mesh plug, no powder flying, the smallest screen can be up to 500 mesh (28 microns), the smallest filter up to 5 microns.
4.Single layer rotary vibration screen with unique grid design, long-term use of screen, easy to change screen mesh, only 3-5 minutes, simple operation, easy to clean. 5.No mechanical action, easy maintenance, can be single or multi-layer, contact part of the material is made of stainless steel (except for medical use).
6.Any solid, liquid, powder, granules, slurry materials within a certain range can be screened.
Product Parameters

DY-600-1S
DY-600-2S
DY-600-3S
0.35-0.55kw
550mm
800*800*680
800*800*780
800*800*880
1
2
3
DY-800-1S
DY-800-2S
DY-800-3S
0.55-0.75 kw
750mm
900*900*780
900*900*930
900*900*1080
1
2
3
DY-1000-1S
DY-1000-2S
DY-1000-3S
0.75-1.5 kw
950mm
1160*1160*880
1160*1160*1030
1160*1160*1180
1
2
3
DY-1200-1S
DY-1200-2S
DY-1200-3S
1.5-1.75 kw
1150 mm
1360*1360*980
1360*1360*1160
1360*1360*1360
1
2
3
DY-1500-1S
DY-1500-2S
DY-1500-3S
1.75-2.2 kw
1450mm
1850*1850*1130
1850*1850*1330
1850*1850*1550
1
2
3
DY-1800-1S
DY-1800-2S
DY-1800-3S
3 kw
1750mm
2200*2200*1360
2200*2200*1460
2200*2200*1680
1
2
3

Customer Case
Application Industry
Applicable Industry
1) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
2) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
3) Medicine Industry: Pills, tablets, capsules, granules
4) Abrasive material and ceramic industry
5) The Building industry: sand , cement,Pebble
6) Plastics industry.
7) Organic fertilizer industry.
8) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc
9) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. Company Profile
Xinxiang Dayong Vibration Equipment Co., Ltd. is a international manufacturing factory with research and development, design, production and sales services, it is committed to providing customers with reasonable and efficient screening, conveying and crushing equipment design solutions. The company have more than 100 employers, and setted with R & D, technology and other departments, of which graduate students, college education accounted for more than 80%. The company is located in Henan, Xinxiang province. The main products are divided into: Fine screening equipment (lab sieve shaker; vibro screen; ultrasonic vibrating screen; flour screen; rotary sifter; liquid sifter; tumbler screener; linear vibrating screen; gyro screen, etc.); Mining screen equipment (roller or trommel screen, circular vibrating screen; heavy linear vibrating screen; probability screen; dewatering sieve; stack sieve etc.) Conveyor equipment (belt conveyor, screw conveyor, bucket elevator, etc.) Crushing equipment (hammer crusher, jaw crusher, etc.) The pruducts has passed the ISO9001 quality system and CE certification, and all the equipment fittings are famous brand in China. The equipment is not only popular in China and have been exported to the United States; Australia; Russia; Britain; Spain; Germany; Japan; Holland; Poland; Turkey; Oman; Philippines; Thailand; Indonesia; Singapore and other countries and regions.
Certifications
Related Products

a: Customers who are familiar with technical performance and parameters can directly order.
It appreciate If you send us the pictures you have ever used.
b: Customers who need us to choose the models, please tell us follow the information:
Name and feature of the raw material? Aim of using: get rid of impurity, filtration, grading Handling capacity: kg /h, L/h The raw material size: (mesh or mm) How many final materials you want, or how many layer you need? It appreciate If you send us the relevant pictures about the details.
c: How many kinds of material are supported?
All stainless steel (304, 316L) All carbon steel Q235A Contact part Stainless steel.
d: Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
