Annular Cutter Magnetic Drill Machine Jc2331 Jc2332 Jc3201 Jc3202

Product Description

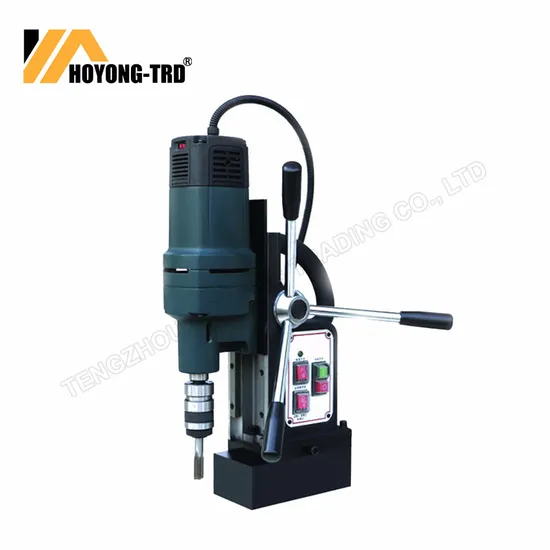

Magnetic Drill:
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of working
metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive power controlled by
electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick. They are built with
durability and heavy use in mind and feature powerful motors and strong magnetic bases.
Magnetic Drill Usage:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform, very potable and universal drilling machine for its
light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is an ideal
machine in steel construction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal working, boilers,
machinery manufacturing, environmental protection, oil and gas pip line industries.

MODEL	JC2331	JC2332 (The base is rotatable)
Voltage	220V	220V
Motor power (w)	1500	1500
Speed (r/min)	200-550 (6step)	200-550 (6step)
Magnetic adhesion(N)	>15000	>15000
Core drill(mm)	12-55	12-55
Twist drill (mm)	1-23	1-23
Max.Travel(mm)	190	190
Min.steel plate thickness(mm)	10	10
Spindle taper	Morse2#	Morse2#
Tapping	M22	M22
Weight (kg)	23	25
Rotation Angle	/	Left and right 45°
Horizontal Travel(mm)	/	20
