Double Slits

Double Slits

Product Details

Product Details

Product Description

Product Description

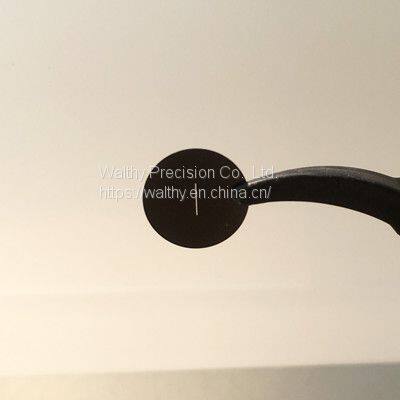

Unmounted Precision Slits
Slits width ranging from 5-1000um
Application
1.Optical Systems and Educational Optical Experiments 2.For Spectrophotometer Image Analysis
Standard Slits Dimension and Material
1. Slit Material:304 Stainless Steel
2. Thickness:0.05mm
3. Slit Width Available:10 to 1000um
4. Slit Length:3mm
5. Outer Diameter:9.5mm
6. Finish: can be blacked
7. Pinholes are also available.
Standard Slits Dimensions:
Item
Slit Width
Tolerance
Slit Material
S10
10um
±1um

304 Stainless Steel
S25
25um
±2um
S50
50um
±2um
S75
75um
±4um
S100
100um
±4um
S200
200um
±4um
S300
300um
±8um
S400
400um
±10um
S500
500um
±10um
S1000
1000um
±10um

If not listed, please contact us.
We can aso customized slits according to your requirements.
We can fabricate from different substrate materials,diameter,different slit width and length, and different slits configuration.Shape of the substrates can be customized too.
