Qm B Series Zhg Socket Amphenol Alternative Aviation Push-Pull RJ45 M12 Connector Banana Plug Socket Terminal Connector

Qm B Series Zhg Socket Amphenol Alternative Aviation Push-Pull RJ45 M12 Connector Banana Plug Socket Terminal Connector

US$3.00-10.00 10 Pieces (MOQ)

Basic Info.

Model NO.
ZHG
Interface Type
HDMI
Shape
Round
Protection Level
IP50
Numbers of Inserts
>5000
Vibration
10-20000Hz, 15g
Temperature Rang
-55c~ +150c
Mechanical Shock
100g.6ms
Salt Spray Corrosion Test
96h
Quality
Waterproof
Condition
New
Series
B Series
Brand
Qm
Material
Aluminium Alloy
Pin
Multi Pin
Transport Package
Standard Box as Required
Specification
0B 1B 2B 3B
Trademark
QM
Origin
China
HS Code
8536700000
Production Capacity
5000000PCE/Year

Product Description

Product Description

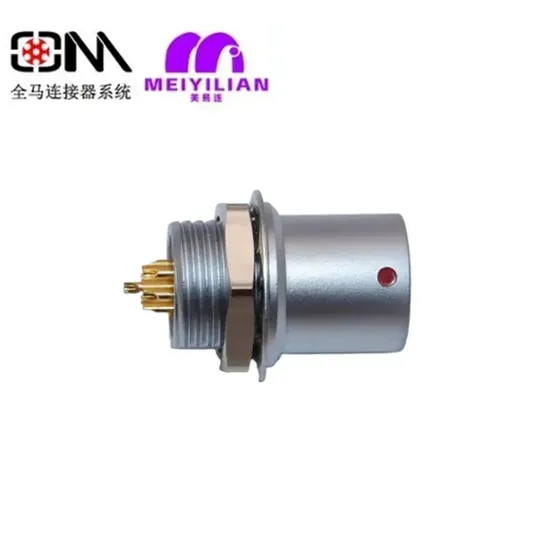

ZHG socket: B series push-pull self-latching connector has the characteristics of fast separation, simplicity, convenience, firmness, and reliability; This connector is suitable for installation with minimal installation space inside the chassis.
Product Features
Nut installation in the chassis
Various positioning pins to prevent mis-insertion
Protruding housing to reduce the size of the chassis
Related Applications
Drones
Lithography Machine
Automobile dynamic performance test system
Detailed Photos
Features
Main features of B series metal connectors
Fast push-pull self-latching system
Welding, crimping, and PCB(Printed Circuit Board) pin core
Straight type, 90° angle type

Various locating pins options can avoid mixed insertion between similar connectors
All-round shielding effect could anti-electromagnetic interference
2-40 multi-cores can be selected, high-density installation can save space
Locating pin system, G is a standard locating pin, used for connector alignment
Specification
Technical characteristics of B series metal connectors
Specification
Number of inserts >5000
Humidity At 60ºC, the highest humidity can reach 95%
Temperature rang -55ºC ~ +150ºC
Vibration 10-20000Hz, 15g
Mechanical shock 100g.6ms
Salt spray corrosion test >96h
Protection level IP50
Connecting mode Push pull self-locking
How to choose model
Product Parameters
Technical parameters of ZHG socket
Category: B Series
Model: ZHG
Series:0B,1B,2B,3B,4B
Item Size
Series Model A B e E M L S1 S3
0B ZHG 10 12.4 M9x0.5 2 11.5 19.5 8.2 11
1B ZHG 14 15.8 M12x1.0 4 12 21.7 10.5 14
2B ZHG 18 19.2 M15x1.0 5.1 12.5 23.9 13.5 17
3B ZHG 22 25 M18x1.0 8.0 13.5 30.7 16.5 22

Company Profile
QM connector is a Chinese manufacturer of waterproof push-pull connectors. We aim to provide high-quality connectors for our customers. The push-pull connector is a small and convenient spare part for your equipment. It can be used in medical devices such as endoscopies, can be used in national defense garments, base stations for telecommunication, and automatic machines such as dispensing machines, etc. Our waterproof self-locking connectors have different series that will fit your requirement in different equipment. We also provide customize service if reach the MOQ. QM always keeps in faith that we should do our best to help our customers. Your satisfaction is our motivation!
a) Good after-sale service, all questions will be replied to within 12 hours.
b) Customized design is available. ODM&OEM are welcome.
c) We can provide a free sample, but the buyer should handle the posting fee.
d) Convenient transportation and fast delivery, all available shipping ways could be applied, by express, air or sea.
e) High quality and the most competitive price.
f) Advanced produce and inspecting equipment.
How to produce?
We provide Lemos-compatible connectors. waterproof push-pull circular M12 metal waterproof connector. Our factory is located in Shenzhen, China. If interested. feel free to contact us for samples, specifications, and quotations. Looking forward to receiving your message and solving your connection problem. PUSH PULL WATERPROOF CONNECTOR LEMOS-LIKE B SERIES CONNECTOR CUSTOMIZED CABLE ASSEMBLY 20 YEARS EXPERIENCE IN CONNECTOR CE/ ISO9001(2008)/GJB9001C-2017/ROHS/SGS CERTIFICATE MEDICAL/INDUSTRIAL/OPTICAL/MEASURE/NAVIGATE/DRONE PROVIDE SAMPLE AND TECHNOLOGY SUPPORT
FAQ
Q1. Are you a manufacturer or trading company?
QUANMA: We are a professional manufacturer of push-pull connectors our sales service
department is in Shanghai and our factory is in Shenzhen Q2. What's the lead time after placing an order?
QUANMA: Normally we will deliver your order 7-12 working days after placing the order. Q3. Is your connector compatible with another brand connector? QUANMA: B series is compatible with the LEMOS connector.
Q4. How many fields can be used for this kind of connector? QUANMA: QUANMA connector is now widely used in the fields of measurement, medical,
audio-video, national defense use, navigation, security, aviation, industrial control, automotive and power, etc.
Q5: How are our orders packed and delivered? QUANMA:
Our connector will pack and ship to you safely. We will pack it as you required. Check our package and warehouse below!
