Fabric Hydrostatic Head Pressure Tester

Product Description

Product Description

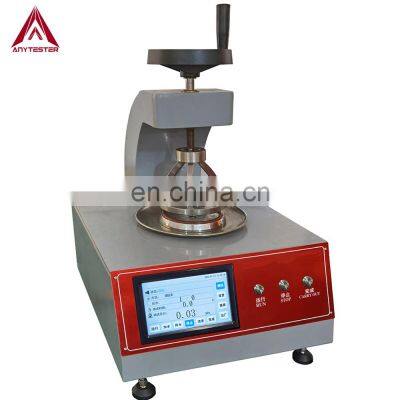

ApplicationHY0812D Hydrostatic Head Tester is used to determine the resistance of fabric to water penetration under pressure while firmly clamped in the test ring of standard area, by means of dynamic test method and static test method.Standard AATCC 127ISO 811BS EN 20811BS 3321, 3424-26JIS L 1092A/BERT 120-2-02GB/T 4744FZ/T 01004 Note: this Hydrostatic Head Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.Features1. Microcomputer control, digital setting 2. Adopt high precision pressure sensor, more accurate 3. 3 kinds of pressure range selectable4. Four display unit free to change, Kpa, mmH2O, cmH2O and Bar5. Built-in professional LED light, easy to observe drops6. Two test modes: supercharge method and crooked & relaxation method7. Stainless steel clamp, more stable and durable Specification ModelHY0812D-5Hydrostatic Head TesterHY0812D-20Hydrostatic Head TesterHY0812D-50Hydrostatic Head TesterTest ring diameter 113mm or customizedTest area 100cm2, (7.8cm2 optional) or customizedMeasuring range 500Pa ~ 50kPa500Pa ~ 200kPa5kPa ~ 500kPaWater pressure rising rate1~20kPa/min or customized, digital setting Working mode 2 kinds Water tank capacity 1000mlPower supply AC220V±10%, 50HzPower 200wDimensions550×400×600mmWeight 100kg
