115W Lithium Battery Charger for Self Balancing Electric Scooter

Product Description

Product Description

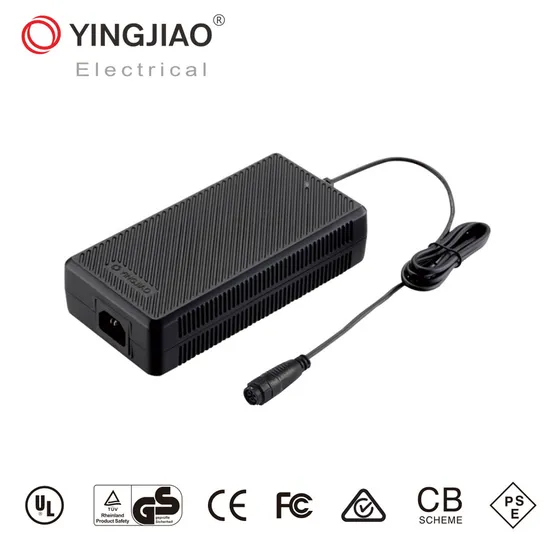

Lithium Battery Charger
With red /green LED indicator
Input:100-240VAC 50/60Hz
Input inlet:IEC320-C8 /IEC320-C14
Output power cord:1m UL2464
CC-CV charging output: 115WMAX
Dimension:196*98*47mm
Warranty: 3 years
Product features:
1. Universal AC input/full range
2.No load power consumption <1.0W
3.Constant current and voltage(CC,CV mode)
4.Protections: Short circuit / Overload / Over voltage / Over temp
5.LED indicate for charging status
6.Fully enclosed plastic case
7.High reliability
Approvals: UL / CUL / CB / FCC / CE
Application:
e-Bike,balance car,Electric scooter,etc
DATA:

Model	Output		Note
YS200-67201700	0 67.2V	1.7A	(Specialized exports exports interface, the metal does not show)
YS200-54602100	54.6V	2.1A	-
YS200-42002700	42V	2.7A	-
YS200-29403900	29.4V	3.9A	-

Related Products Products Catalog
Why Choose Us
Yingjiao Electrical Co., Ltd., established in 1995, is a leading manufacturer and exporter of Switching and Linear Power Adapters, Transformers, Chargers, Car Chargers and Power Cords. We can also design and manufacture power supply products with specifications according to the various demands of different customers.
Located in Ningbo, a coastal city in East China, we possess convenient location and transportation facility. We built up an area of 15,000 square meters working building, have about 600 skillful employees, and have 12 pieces for high frequency transformers, and an independent power cord workshop. We also imported some advanced equipments for production, including 2 sets the most advanced Panasonic high speed SMT, 2 sets lead-free wave soldering machine and 16 sets big plastic injection machine etc.
Being exported to over 30 countries and regions, such as Europe, America, Japan, Australia, Africa, Middle-East, South America, our products have won good comments from our customers.
We have a strict quality control and guarantee system and have been ISO9001:2000 certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese Quality Certification Center. Besides, we also carry out the international authoritative certifications, such as UL, CUL, TUV, CSA, and GS, etc.
We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.
ODM/OEM partners are welcomed too.
