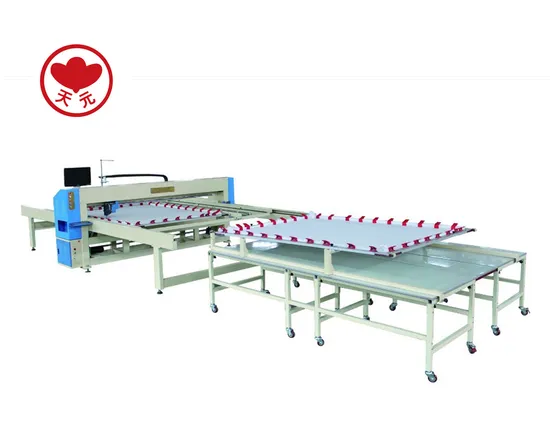

Single Head Computerized Quilting Machine for Mattress

Single Head Computerized Quilting Machine for Mattress

US$10,000.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HFJ-26A-2
Certification
ISO, CE
Condition
New
Number of Head
1
Voltage
220V
Type
Computerized Quilting Machine
Maximum Quilt Size
2600mm*2400mm
Maximum Needle Drop Size
2400mm*2200mm
Packing Type
Wooden Case/Plywood Case
Packing Size
3590mm*760mm*1770mm
G.W.
1440kg
N.W.
1300kg
Working Style
Head Movable
Certificate
ISO9001, SGS
Max.Speed
3000GSM
Transport Package
Wooden Case
Specification
SGS, ISO9001: 2000
Trademark
Tian Yuan
Origin
Wuxi City, Jiangsu Province, China
HS Code
8447203000
Production Capacity
10 Sets/Month

Product Description

HFJ-26A-2 Single needle single head computerized quilting machine for mattress,comforter,duvets,etc
Usages:
Suitable for quilting patterns on duvet, mattress pad, bedcover, garments, etc. Can also quilt on sponge and leather.
Specifications:
1) 19"LCD with Chinese and English version. With 538 patterns already in the computer; Lockstitch, high precision
2) Power supply: 220V, 50Hz, 2kw
3) Automatically stops if thread breaks
4) Automatically stop against malfunction of computer, motor, and display
5) Pattern form: . DST DAT
6) USB interface
7) Single stitch length: 2-7mm
8) Needle type: DP5 18~22#
9) Max. Speed: 3000rpm
10) Max. Thickness: 1500 GSM
Specification B: HFJ-26A-2
Max quilt size: 2400 (W) × 2600 (L) mm
Max needle drop size: 2200 (W) × 2400 (L) mm
M/C dimension: 5000 (L) × 3420 (W) × 1780 (H) mm
Packing size: 3590 (L) × 760(W) × 1770 (H) mm
N. W.: 1300kg; G. W.: 1440kg
Specification B: HFJ-28A-2
Max quilt size: 2600 (W) × 2800 (L) mm
Max needle drop size: 2400 (W) × 2600 (L) mm
M/C dimension: 5200 (L) × 3700 (W) × 1780 (H) mm
Packing size: 3890 (L) × 760(W) × 1770 (H) mm
N. W.: 1440kg; G. W.: 1580kg
Specification B: HFJ-30A-2
Max quilt size: 2800 (W) × 3200 (L) mm
Max needle drop size: 2600 (W) × 3000 (L) mm
M/C dimension: 5600 (L) × 3900 (W) × 1780 (H) mm
Packing size: 4090 (L) × 760(W) × 1770 (H) mm
N. W.: 1520kg; G. W.: 1660kg
Specification B: HFJ-32A-2
Max quilt size: 3000 (W) × 3200 (L) mm
Max needle drop size: 2800 (W) × 3000 (L) mm
M/C dimension: 5600 (L) ×4100 (W) × 1780 (H) mm
Packing size: 4290 (L) × 760(W) × 1770 (H) mm
N. W.: 1600kg; G. W.: 1750kg
Specification B: HFJ-35A-2
Max quilt size:3200 (W) × 3500 (L) mm
Max needle drop size: 3000 (W) × 3300 (L) mm
M/C dimension: 5900 (L) × 4220 (W) × 1780 (H) mm
Packing size: 4390 (L) × 760(W) × 1770 (H) mm
N. W.: 1700kg; G. W.: 1820kg
FAQ:
1,How to contact you?
You could contact us via TM,email or call us directly.

2,Are you factory or trading company?
More than 20 years ago we only had 1 factory but now we developed as a big united group with 2 factroies and 1 trading company.We produce machines by our 2 factories and export machines to different countries by our own trading company.We belonged to one boss:Mr.Chen who is a good and famous business man.Welcome to visit our factory.

3,How many countries have your products been exported to?
Until now our machines have been already exported to more than 100 countries.

4,Which payment term is accepted?
30% in advanced payment by T.T and 70% paid before shipment by T.T.

5,Can you make speicial voltage of the machines?
yes,usually the machines are made with 380v,50hz,3 phases or 220v,50hz,single phases.If you need different, please inform us and we customize.

HFJ-26A-2 HFJ-28A-2 HFJ-30A-2 HFJ-32A-2 HFJ-35A-2
Max quilt size 2400×2600mm 2600×2800mm 2800×3200mm 3000×3200mm 3200×3500mm
Max needle drop size 2200×2400mm 2400×2600mm 2600×3000mm 2800×3000mm 3000×3300mm
Machine dimension 5000×3420×1780mm 5200×3700×1780mm 5600×3900×1780mm 5600×4100×1780mm 5900×4220×1780mm
Thread type LOCK STITCH LOCK STITCH LOCK STITCH LOCK STITCH LOCK STITCH
Max quilting speed 3000rpm 3000rpm 3000rpm 3000rpm 3000rpm
Max quilting thickness 1500gsm 1500gsm 1500gsm 1500gsm 1500gsm
Stitch length adjustment 2-7mm 2-7mm 2-7mm 2-7mm 2-7mm
Needle model DP5 18-22# DP5 18-22# DP5 18-22# DP5 18-22# DP5 18-22#
Pattern format .DAT, .DST .DAT, .DST .DAT, .DST .DAT, .DST .DAT, .DST
USB YES YES YES YES YES
Thread break detection YES YES YES YES YES
Monitor 19" LCD 19" LCD 19" LCD 19" LCD 19" LCD
Voltage 220V/ 50HZ 220V/ 50HZ 220V/ 50HZ 220V/ 50HZ 220V/ 50HZ
Power 2.0KW 2.0KW 2.0KW 2.0KW 2.0KW
Packing dimension 3590×760×1770mm 3890×760×1770mm 4090×760×1770mm 4290×760×1770mm 4390×760×1770mm
Gross weight/Net weight 1440kg/1300kg 1580kg/1440kg 1660kg/1520kg 1750kg/1600kg 1820kg/1700kg
