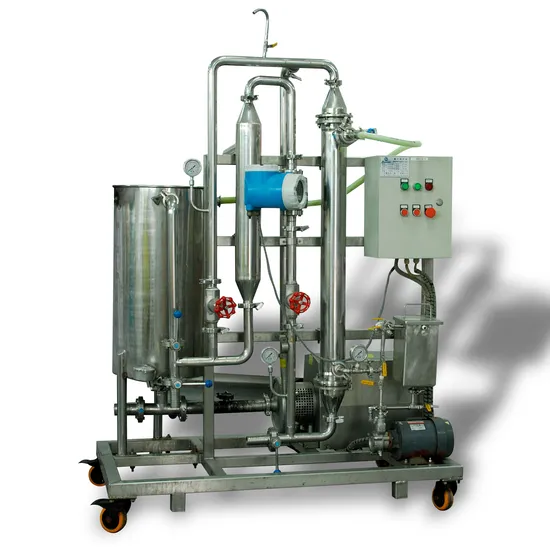

Ceramic Membrane Test Plant for Pilot Scale

Product Description

Ceramic membrane test plant can be widely applied to the liquid solid separation, clarification, bacteria and impurity removal, emulsion treatment, wastewater treatment and other experimental researches. Various configurations, pore size, diameter, length &channel quantity can be selected in accordance with the fluid viscosity, suspended solids concentration to clarify, remove impurity and separate.
Advantages:Compact structure designEasy to operate and maintainSmall holdup volumeReliable test result, good reference for industrial designEasy to cleanLong service lifeSpecification

Scale	Unit	Pilot scale
Model		SPPM-C-50
Purpose		For process development and obtain the industrial design parameter
Membrane module		One module with 3 pcs of membrane, up to 1200mm length
Membrane area	m²	0.4-0.69
Operation pressure	bar	2-6
Operation temperature	ºC	≤90
pH range		1-14
Holdup volume	L	10
Installed power	kW	5.5
Dimensions	m	1.11×0.88×2.175

Membrane Features:Advantages:Resistance to strong acid, alkali and oxidationResistance to organic solvents Resistance to high temperature (up to 150ºC)Wearing resistance High separation precisionHigh strength and long lifetimeHigh flux and available backwash Simple operation and low maintenance costApplicationIndustrial Wastewater Treatment Oily wastewater from cold rolling, metal cleaning, cokingParticles separation from: Titanium washing liquid and catalysts recoveryOil field injection water treatment; Grinding and micro-electronics wastewater treatmentFood, Fermentation IndustryBroth clarification and purification; Soy sauce and vinegar filtration; Juices, beverages and liquor clarification and filtration; Milk standardization and sterilization; Fermentation product separation and refining;Bio-pharmaceutical industry Herbal extraction and purification; Oral clarification and filtration; Biological products purification and refining; Activated carbon separation and recoveryOthersDust removal from high temperature gas; Natural pigment productionBrine purificationRare metal enrichmentSeparation and preparation of new materialsInorganic membrane catalytic reactorConcentration and purification of nanomaterials
