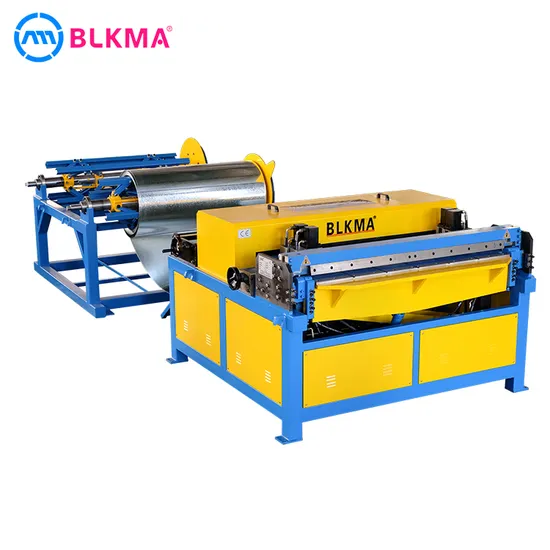

Sheet Metal Auto Duct Production CNC Auto Duct Line 3/Coil Duct Line 3

Sheet Metal Auto Duct Production CNC Auto Duct Line 3/Coil Duct Line 3

US$14,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ADL-3-1300
Theory
Auto Duct Line
Application
Industry
Type
Pipe Production Line
Power
7.5kw
OEM
Available
Certification
CE ISO
Color
Optional
Sheet Thickness
0.5-1.2mm
Weight
3.5t
After Warranty Service
Field Maintenance and Repair Service, Free Spare P
After-Sales Service Provided
Installation, Training, Oline, on-Site Service
Transport Package
Wooden Box or Container
Specification
18000*3000*1500
Trademark
Blkma
Origin
China
HS Code
8462219000
Production Capacity
100000/Year

Product Description

sheet metal auto duct production CNC auto duct line 3/Coil duct line 3
YOUTUBE VIDEO
https://cnblkma.en.made-in-china.com

Function:
Duct production line 3 can drive blanking for duct. Meantime, it's very suitable for diversified production like TDF/angle steel/inserted flange forming; the angle steel flange and inserted flange can be bent into a square-shaped pipe automatically.
Main import Configuration:
Japan Mitsubishi CNC system+Schneider electrical system Beijing Huade plus hydraulic system from Taiwan Japan Omron encoder Basic Configuration: One electric coil cradle(two material trays) One set of leveling and beading equipment Hydraulic angle-shearing machine with four sets of die Hydraulic sheet-shearing machine, hydraulic bending machine, hydraulic press machine A set of CNC computer control system and production software
Model Sheet thickness(mm) Max width(mm) Max working speed(mm) Coiler max weight(T) Dimensions
(mm)
Power
(kw)
Weight
(T)
ADL-3-1300 0.5-1.2 1300 15 7 5500*1950*1350 7.5 3.5
ADL-3-1500 0.5-1.2 1500 15 7 5500*2150*1350 7.5 4

Packing and Delivery:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union, and so on. TT, 30% in advance, 70% balance before the shipment.
4. OEM is available?
Yes.
