US$5.00-39.90
|
1 Set
(MOQ)
|
Basic Info.
Kind
Thermoplastics Pipes
Contraction Percentage
<0.4%
Colors
White/Black/Grey/Yellow/Green/Purple
Option
Nist Connection/DIN/BS/Afnor Probes
Transport Package
Carton/Pallets
Specification
1/4", 5/16"
Production Capacity
5000000m/Day
Product Description

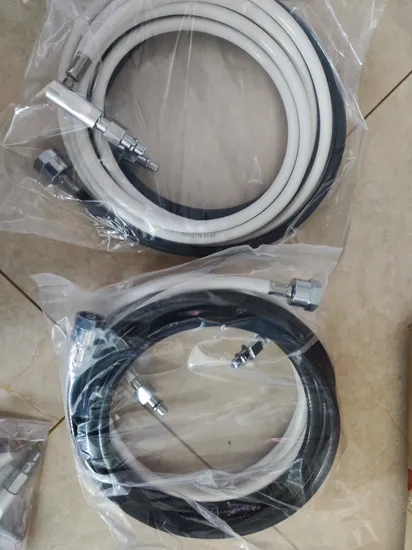

MEDICAL HOSE ASSEMBLY / NIST TO DIN 13260-2
MEDICAL HOSE ASSEMBLY / NIST TO BS5682
Medical Gas | ISO Colors | USA colors | China Colors |
Oxygen | White | Green | Blue |
Medical Air 4 | Black | White | Yellow | Black |
Medcical Air 7 | Black | White | Red | Black |
Vacuum | Yellow | White | Yellow |
N20 | Blue | Blue | White |
CO2 | Grey | Grey | White |
WAGD | Purple | Purple | Purple |
Nitrogen | Black | Black | Black |
Helium | Brown | Brown | Brown |
Medical Hose is suitable for transfer of low pressure gas in the food systems of medical tools.3 layer non-toxic PVC with texile reinforce,high flexibility without silicon and heavy metals.This hose is suggested for the transportation of oxygen,nitrogen oxide,air,helium,xeno,and nitrogen mixture,air for surgical tools.
Product Dimension: 1/4" MEDICAL HOSE Inner Diameter:6.3MM 1/4 inch Outer Diameter:12MM 0.47inch Thickness:2.85mm 0.11inch Weight per meter: 102 GR/M Material:Non-toxic PVC Working temperature: -15+50 celsus degree Working pressure:20 Bar Burst pressure:60 Bar Layers Adherence:12-15N/m
Product Dimension: 5/16" MEDICAL HOSE Inner Diameter:8MM 5/16 inch Outer Diameter:14MM 0.55inch Thickness:3mm 0.12inch Weight per meter: 131 GR/M Material:Non-toxic Medical Grade PVC Working temperature: -15+50 celsus degree Working pressure:20 Bar Burst pressure:60 Bar Layers Adherence:12-15N/m
MAIN TECHNICAL FEATURES:
-High Flexibility without silicon and heavy material
-Smooth sureface
-UV resistance
-Ozone resistance
-3 layer atoxic PVC with textile reinforce
