PVC Pulverizer Milling Machine Grinder Machine Plastic Pulverizer PVC Pipe Machine Plastic Recycling Powder Making Machine PVC Grinder Machine

PVC Pulverizer Milling Machine Grinder Machine Plastic Pulverizer PVC Pipe Machine Plastic Recycling Powder Making Machine PVC Grinder Machine

US$5,500.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
MF400, MF500, MF600, MF800
Material Processed
Plastic Pellet,Granule,Flake
Plastic Type
PVC,PE,PP,Pet,ABS,etc.
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008
Knife Classsification
Blade/Disc
Contactor
Siemens
Inverter
ABB
Voltage
380V or Customized
Application
for PVC Pellet Milling
Lead Time
45working Days
Transport Package
Seaworthy Package
Specification
MF400, MF500, MF600, MF800
Origin
China
HS Code
84798200
Production Capacity
5000sets/Year

Product Description

Keep on going for new technology on plastic extrusion is our target. Welcome to contact us!
Goods Description New design Plastic grinding /plastic pulverizer/Miller/ Milling machine
Here are two types of Plastic Pulver,
1. Blade type.
The new series plastic pulverizer mainly used in the field of hard PVC recycling, for example in the recycling of pipes and profiles to grind PVC waste, and the powder produced will be mixed with new PVC materials, and then used in the new extrusion production of pipes ,profiles, boards.
The machine is mostly suitable for the PVC raw material with higher percentage of CACO3 as filler.
Here is the machine Technical Parameter,
Specification SMP-500 SMP-600 SMP-800
Blade Quantity 1 set 1 set 1 set
Rotation speed 2950rpm 2950rpm 2950rpm
Motor 37Kw 45/55Kw 75/110Kw
Prodution output 80-280Kg/h 150-480kg/h 300-880kg/h
Finess 20-80 mesh 20-80 mesh 20-80 mesh
Weight 1280kg 1680kg 2880kg

Advantages:
a. compare with similar Pulverizer, the output is greatly improved at the same power(increaded by 20%-50%) ,and saving energy.
b. The dust collector is added to reduce dust pollution effectively.
c. Automatic regrinding fuction reduced the labor intensity.
d. The door cover of machine can be opened, it is convenient to do maintenance and blade/knife replacement.
e. The wind-water cooling system is adopted to reduce the working temperature of machine, which make the material abrasive not easy to be changed.
f. Adjustable powder screen(20-100mesh).

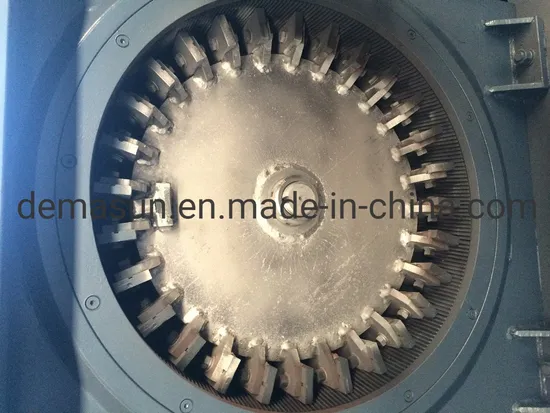

2. Disk type.
MF series grinder/miller/pulverizer can grind various theremoplastic material economically and efficiently at normal temperature. It can produce high-quality powder(free-flowing powder with high bulk density) for rotational molding applications. Such as the material of PE, PVC, PP, ABS, PA, EVA, PET, PS, EPS,PC, Foam, cowhide,etc.
Our MF series grinder/miller/pulverizer mainly usedf for grinding PE in the rotational molding industry. In this process, a virating screen must be used to ensure that the powder with uniform fineness is screened.
It is mainly used for PE, PP,PET,ABS pellets/flake,etc, and also for PVC pellets with lower percentage(within 50%) of CACO3 as filler.
Application field,
1. Fine plastic recycling.
2. Engineering plastic mixing.
3. Extruded plastic recycling.
4. Composite plastic production.
5. Proudction and recycling of rotational molding powder.
6. Plastic pipe, board crushing and recycling.
Technical Parameter,
Specification MF400 MF500 MF600 MF800
Main Motor 22kw 37kw 45kw 75kw
Blade Diameter Φ400 Φ500 Φ600 Φ800
Draft Fan 4kw 5.5kw 7.5kw 11kw
Rotary Valve 0.75kw 0.75kw 0.75kw 1.1kw
Production output 50~300kg/h 80-500kg/h 120-800kg/h 200-1200kg/h
Dimension 2800*2600*3700mm 3000*2800*3900mm 3200*3000*4200mm 4000*3500*4500mm

Adavantages,
a. Simple adjustment of grinding disc clearance.
b. Easy to do maintenance and control.
c. Automatic regrinding coarse powder.
d. water-wind dual cooling system.
e. Provide differenty types of grinding disc configurations.
f. Maximum powder size distribution control.
