US$9,750.00-125,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO 9001
Name
Galvanized Steel Belt Fertilizer Bucket Elevator
Traction Type
Belt Type or Chain Type
Bucket Width
160~630mm or Customized
Lifting Height
5~45m, or Customized
Driven Device
Motor+Fluid Coupling+Gearbox
Belt Type
Special Polyester Canvas Belt
Chain Type
Good Grade Link Chain
Machine Material
Galvanized, Stainless Steel, Carbon Steel
Application
Agriculture, Cement, Gravel, Sand, Bulk Material
Motor Brand
ABB, Sew, Siemens
Transport Package
Seaworthy, Wooden Package, Container
Origin
Xinxiang City, China
Production Capacity
10 Sets Per Month
Product Description
About Us Headquartered in Xinxiang City, Henan Province, China, domestic well-known screening and conveying equipment city, PK Machinery has enjoyed more than 50 steady years of successful growth, and now it has been widely acknowledged as a trustworthy and professional manufacturer in the field of bulk material handling equipment, including vibrating screen, vibrating feeder, belt conveyor, bucket elevator, screw conveyor, scraper chain conveyor and associated spare parts in complete specifications.
Product Description Application and Working Principle
TDG/THG Efficient Bucket Elevator with SH Type Hopper is used for lifting dry, bulk, fluidity powder, granular and block material, where as hopper is often used for lifting slight moist, easy caking, bad fluidity powder material.
THG Type Bucket Elevator is using high strength ring chain as it traction component, the maximum material temperature can be reach to 250 ° C. TDG type bucket elevator's traction component is EP belt and steel belt. Common belt used in bucket elevator is able to lifting material with temperature less than 80 °C while the material temperature by heat-resistant belt should be less than 120 °C.
Performance and Features
1)Wide range of bulk materials can be handled, including powder, granular and block materials.
2)Large capacities for conveying in a compact space.
3)Completely enclosed for dust-tight operation, improve the working conditions and prevent the environmental from being polluted.
4)Reliable electrical device and mechanical safety device.
5)Flexible installation and maintenance.
6)Construction available in carbon steel, stainless steel.
7)Engineered and manufactured to meet specific customer requirements.
Product Parameters
Efficient Bucket Elevator -- Belt Type
Model | TDG 160 | TDG 200 | TDG 250 | TDG 315 | TDG 400 | TDG 500 | TDG 800 | TDG 1000 | TDG 1250 | THG 160 | THG 200 | THG 250 | THG 315 | TDG 630 |
Capacity (m3 /h) | 32 | 45 | 72 | 101 | 158 | 220 | 492 | 788 | 1220 | 30 | 50 | 70 | 100 | 348 |
Bucket Volume (L) | 2.6 | 4.1 | 6.5 | 10 | 16 | 25 | 64 | 102 | 161 | 2.6 | 4.1 | 6.5 | 10 | 40 |
Bucket Pitch (mm) | 260 | 300 | 325 | 360 | 420 | 460 | 580 | 650 | 720 | 270 | 270 | 336 | 378 | 520 |
The Weight of Every Meter Belt With Bucket (kg/m) | 22 | 21.5 | 33 | 33.2 | 42.2 | 62.3 | 106 | 145 | 155.5 | 31 | 31.85 | 33.4 | 43.25 | 78.53 |
Bucket Speed (m/s) | 1.2 | 1.2 | 1.34 | 1.34 | 1.5 | 1.5 | 1.65 | 1.86 | 1.86 | 0.93 | 0.93 | 1.04 | 1.04 | 1.68 |
Lifting Height (m) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 60 | 60 | 80 |
Efficient Bucket Elevator -- Ring Chain Type
Model | THG 400 | THG 500 | THG 630 | THG 800 | THG 1000 | THG 1250 |
Capacity(m3 /h) | 160 | 210 | 350 | 475 | 715 | 1120 |
Bucket Volume (L) | 16 | 25 | 40 | 64 | 102 | 161 |
Bucket Pitch (mm) | 420 | 480 | 546 | 630 | 756 | 756 |
The Weight of Every Meter Belt With Bucket (kg/m) | 60.9 | 79.6 | 88.66 | 107 | 150 | 187.6 |
Bucket Speed (m/s) | 1.17 | 1.17 | 1.32 | 1.31 | 1.47 | 1.47 |
Lifting Height (m) | 60 | 60 | 60 | 55 | 55 | 40 |
Model Selection Guidelines
Material property | Technical requirements |
Material name | | | Capacity | | TPH |
Density | | T/m3 | Height between the inlet and outlet | | |
Moisture content | | % | Chain type or belt type | | |
Temperature | | ºC | Equipment material | | |
Particle size distribution percentage | | % | Voltage , frequency | | V, Hz |
Chemical property | | | Motor brand | | |
Pictures is better | | | Installation space limit | | mm |
Technology : The machines before and after the vibrating screen |

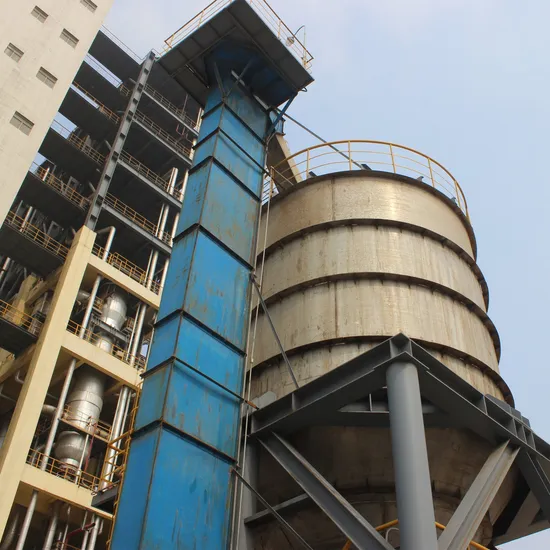

Producing Spot
