US$6,800.00-19,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Stacking Length
900-1350mm
Stacking Width
800-1200mm
Length of Single Board
900-1350mm
Width of Single Board
50-200m
Single Board Thickness
3-4 Minutes/1 Cube
Total Power
12kw Timber Stacker
Receipt
Automatic Wood Pallet Stacker
Number of Operators
1-2 People
Stacking Lifting Method
Mechanical
Equipment Area
8.6 M*6.3 M*2.7 M
Color of Timber Stacker
Customized According Customer Demand
Transport Package
Standard Export Package of Timber Stacker
Production Capacity
300sets/Month
Product Description
Euro & America Pallet Wood Boards Automatic Stacking Machine Timber Stacker Machine Price
Product Description
Description of Automatic Timber Stacker Machine:
1). Timber finishing equipment is suitable for batch wood finishing.
2). It can be used for the preparation of wood in the early stage of the equipment, or for the drying/finishing of wood.
3). The equipment has high operating efficiency, simple operation, numerical control operation, and the number and height of
stacking can be set.
Product Parameters
Technical Parameter of Wood Plank Stacker Machine :
Device model | LB-8010 Timber Stacker |
Operation mode | CNC/Auto |
Stacking length | 900-1350mm |
Stacking width | 800-1200mm |
Stacking height | 0-1100mm |
Length of single board | 900-1350mm |
Width of single board | 50-200mm |
Single board thickness | 15-100mm |
Capacity | 3-4 minutes/1 cube |
Total power | 12KW |
Unwind | Artificial |
Receipt | automatic |
Number of operators | 1-2 people |
Stacking lifting method | mechanical |
Equipment area | 8.6 m*6.3 m*2.7 m |
Length of discharge table | Standard 3.6 meters (length can be customized) 1.2 meters multiples |

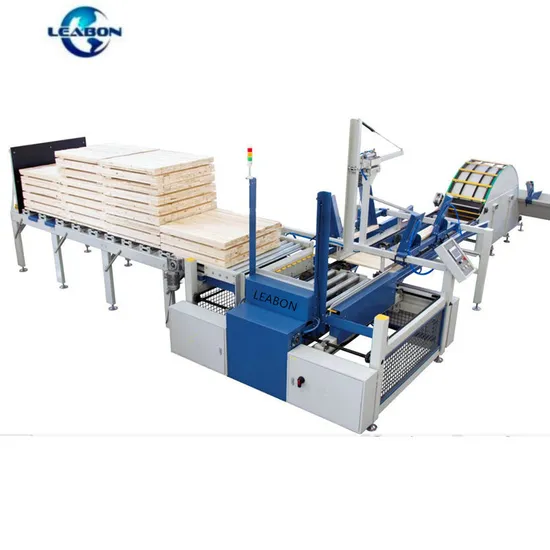

Detailed Photos
More Details Pictures of Stacking Machine for Wood Planks :
Final Stacking Timbe Product Showing :
Realted Product:
Automatic Euro Type and America Type Wood Pallet Nailing Machine Price
1. Applicable tray type, European and American tray
2. Maximum size: 1300x1300x150mm (length x width x height)
3. Production efficiency: up to 60 per hour
4. Number of operators: 1
5. Use nailing tools: automatic air nail gun
6. Power consumption: less than 7.5kw
7. Position and type of nailing: each position can hit 2-4 nails
8. Mould: each tray with different size and structure requires two moulds
Different America & Euro Type &Size Wood Pallet:
More details Pictures of Wood Pallet Nailing Machine:
Pls contact us if you are insterested in our Automatic Timeber Stacker Machine
Contact :Rita Zhang
