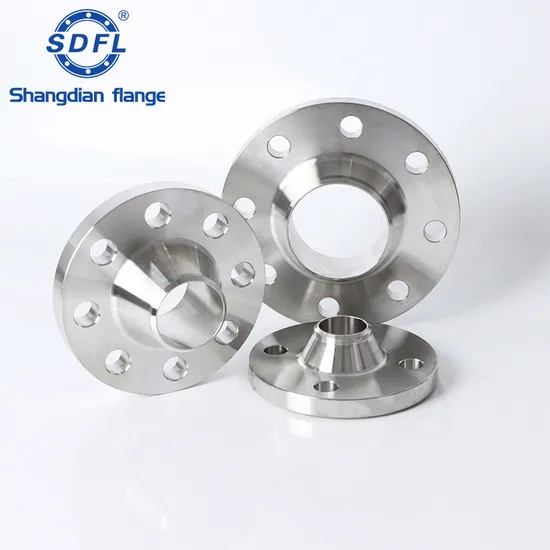

JIS DN25 304L/316L Stainless Steel Forged Pipe Flange - Customized

JIS DN25 304L/316L Stainless Steel Forged Pipe Flange - Customized

US$0.20
10-99 Pieces
US$0.10
100-999 Pieces
US$0.05
1,000+ Pieces

Basic Info.

Model NO.
WN Flange
Material
Stainless Steel
Structure
Flanges
Connection
Welding
Sealing Surface
RF
Manufacturing Way
Forging
Flange Type
Wn
Executive Standard
ANSI B16.5
Shipping
Land Air Sea
Payment
T/T
Transport Package
Wooden Box
Specification
DN15-DN1200
Trademark
SDFL
Origin
China
HS Code
7307210000
Production Capacity
500000

Packaging & Delivery

Package Size
60.00cm * 60.00cm * 40.00cm
Package Gross Weight
1000.000kg

Product Description

Basic Info.
Flange TypeflangeManufacturing wayForging
SizeDN15-DN1200Pressure15#-2500#
Transport PackageWooden BoxesTransport WayBy Sea
SurfaceMachined by CNCSealing FaceRF FF RJ
TrademarkSDFLOrigin China
HS Code7307210000Production Capacity250ton/Week

Product Description
WE PRODUCE FORGED FLANGES
Specification
Product Name304/316 Stainless Steel Flange and Pipe Fittings RF/RJ/FF/M/FM ANSI/JIS/DIN/EN/BS/GOST Cl150/Pn10/Pn16 Forged Stainless Steel Plain Welded Flange
SizeDN15-DN1200, biggest outside diamater can be up to 6000mm
Pressure150#-2500#,PN0.6-PN400,5K-40K
StandardGOST 12820-80,ANSI B16.5,EN1092, BS4504, JIS B2220-2012, DIN, AMSE B16.5,UNI etc.
Wall ThicknessSCH5S, SCH10S, SCH10, SCH40S,SCH20,SCH30,SCH40, SCH60, SCH80, SCH160
MaterialStainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc.
Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP, A48CP, E24 , A515 Gr60, A515 Gr 70 etc.
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.
Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3,15Crmo, etc.
ApplicationPetrochemical industy;pharmaceutical industry;gas exhaust;power plant;ship buliding;water treament,etc.
Advantagesready stock,faster delivery time;available in all sizes,customized;high quality

Products Detail Show
1.Sealing Face: Can be Raised Face(RF), Full Face(FF), Ring Joint(RTJ) , Groove, Tongue, or customized.
2.Standard:EN1092/JIS B2220-2012/ASME B16.5/GOST 12820-80/DIN etc.
3.Material:A182F304/304L, A182 F316/316L, A182F321, 317/317L etc.
Face finish: The finish on the face of flange is measured as an Arithmetical Average Roughness Height(AARH). The finish is determined by the standard used. For example, ANSI B16.5 specifies face finishes within a range 125AARH-500AARH(3.2Ra to 12.5Ra). Other finishes are available on requst, for example 1.6 Ra max,1.6/3.2 Ra, 3.2/6.3Ra or 6.3/12.5Ra. The range 3.2/6.3Ra is most common.
Marking and Packing
1. Each flange or pipe fittings is wiped after ultrasonic cleaning.
2. Each flange or pipe fittings is individually packaged with bubble protective film and placed in a wooden box.
3. All products are packed in plywood boxes. For larger size flanges, packed in plywood pallets. Or you can customize the packaging by yourself.
4. Shipping marks can be made as required
5. Product label can be engraved or printed. Accept OEM.
Inspection
1. Spectral detection
2. UT test
3. PT test
4. Size test
Before delivery, our QC team will arrange NDT testing and dimension inspection.
TPI (Third Party Inspection) is also accepted.
FAQ
Q: Can you accept L/C deferred 30, 60, 90days?
A: We can.
Q: Can you supply invoice and CO with chamber of commerce?
A: Yes, we can supply.
Q: Can you supply Form e, Cerficiate of origin?
A: Yes, we can supply.
Q: Can you accept O/A payment?
A: We can.
Q: Can you supply samples?
A: Yes, some samples are free.
Q: Can you supply the products which comply with NACE?
A: Yes, we can.
FlangeType
plate flangeSlip on flange
Long weld neck flange
blind flange
lap joint flangeloose flange
threaded flangesocket weld flangeorifice flange
anchor flangetubesheet flange
spectacle blind
Non-standard customized flange

Related products
We can offer 45 90 180 degree elbow,Tee,Ecc Reducer,Stub end,Cap and other pipe fittings.
We can offer stop valve, ball valve, check valve and other valves.
Why choose us
China shangdian stainless steel flanges and pipe fittings Co.,Ltd (we are a factory, 100+ workers, 500+ customers, 10+ years of experience):
We have ISO certificate, accept OEM, ODM. And can produce customized products and supply design services. For normal and standard products, the MOQ can be 1 piece.
We also provide:
1. FORM E/Certificate of Origin and other export certificates.
2. NACE material
3. 3PE coating
4. Data sheets and drawings
5. T/T, L/C payment
6. What is business to us? It's for sharing, not for making money. We hope to meet more and better us together with you.
