Tqsx200 Energy-Saving Reasonable Price Destoner Seed Cleaner De Stoner Machine

Product Description

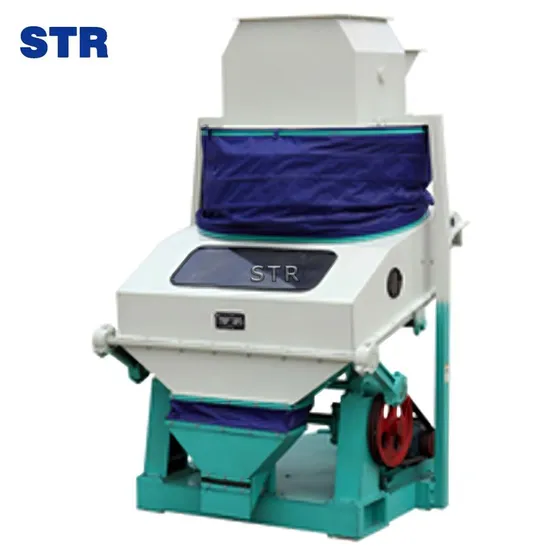

TQSX200 Energy-Saving reasonable price destoner seed cleaner de stoner machine
Product Description
Product Usage
TQSX rice destoner is mainly used to remove heavier impurities than the grains such as stones which are of approximately the same size and shape with grains.It can be used for rice paddy and other grains before going into rice husker machine or grain processing machine.
The stones are separated automatically by air-pressure and vibration.The paddy moves in OPPOSITE direction of stone on the sieve to be separated effectively.There will be no paddy left in the separated stones.
Product Features
1.The material layer on sieve is suspended by suction type fan,and with fully closed structure, no dust spreads on both sides of the screen and so no dust spills out of the machine.
2.The bearings are made of rubber, which perform good anti-vibration property with lower noise.
3..Using vibration motor as driving equipment,the destoner is very firm,works smoothly, with stable technological performance.
4.There are four cleaning holes that make cleaning easy.
5. With air-pressure meter monitoring,the air pressure and volume can be easily adjusted in a wide range.
6.With light in the machine,we can easily observe the material movement.
7.According to different materials, stone sieve plate Angle is within 10-14 degrees can be adjusted, in order to obtain the best process effect.
Working principle
It uses the difference of specific gravity and suspension speed between stone and rice,so as to separate them into two layers.The stone and sand go down to the lower layer and go upward along the sieve surface with the reciprocating movement of screen,then discharge from outlet.The rice suspends in upper layer with semi-suspended state,and goes down the sieve surface under the function of gravity and the continuous feeding.Thus achieve the separation.
Main Technical Parameters:

Item	TQSX56	TQSX85	TQSX100	TQSX125	TQSX168
Output (t/h)	Wheat3-~3.5	Wheat5.5-~6.5	Wheat6.5-~7.5	Wheat9-~10.5	Wheat10-~14
	Rice2.5~3.5	Rice5.5~6.5	Rice6.5~7.5	Rice9~10.5	Rice9~12
Spindle speed (r/min)	485±15	485±15	485±15	485±15	485±15
Sieve angle(°)	10~14	10~14	10~14	10~14	10~14
	Wheat 12	Wheat 12	Wheat 12	Wheat 12	Wheat 12
Sieve width (mm)	510	800	950	1200	1630
Air volume (m3/h)	2100~2300	3200~3400	3800~4100	5400~6200	9100~9600
Resistance (mmH2O)	20~30	40~50	40~50	40~50	40~50
Power (kw )	0.55	0.75	0.75	1.1	1.5
Weight(kg)	260	350	380	480	600
Dimension(mm)	1680*720*1610	1600*970*1840	1514*1124*1809	1514*1375*1809	1514*1709*1809

Detailed Photos
Packaging & Shipping
1,Standard export package or according to clients' requirement;
2,We cooperate with MAERSK,MSC,CMA,COSCO,and other big shipping company with long term cooperation contract,to ensure the safety of machines,to ensure the in time delivery.
Company Profile
Built in 1937,as the first manufacturer of rice mill machine in China,Rizhao Stream(STR) mainly produces Grain Cleaner,Rice Mill,Rice Huller,Rice Grader,Rice Polisher,Rice Packing Machine,Grain Dryer,Grain Silo,Rice Parboiling Machine,Bucket Elevator, Crusher Machine...
STR is experienced in complete set of fully automatic rice milling equipment with daily output of 20-600 tons, wheat flour plant 5-500 tons per day, maize flour plant 5-500 tons per day.
Rizhao Stream(STR) is 'Famous brand of china machinery industry' and 'Shandong famous brand',with a more perfect quality management system.Our company won 'two grade national enterprise' honor in 1989; Won 'Shandong Quality Management Award' in 1991; Passed ISO9000 in 1997; Passed 'CCC 'in 2006; Recently,won 'Top ten industrial enterprises all the region ' 'Top ten integrity taxpayers of RIZHAO City ', and so on.
Certifications
Contact Information


Our Advantages
1, Relatively cheaper price in grain processing field
2, High quality steel as raw material which is thicker
3, With more than 80 years experience in grain machine,our engineers are professional in design
4 , Unique design for your rice/maize/wheat milling plant
5, Good after sale service.We will answer you in 2 hours and offer solution in one day
6, Better service for spare parts
FAQ
Q1:Who are you?
A1:We are leading manufacturer of rice/maize/wheat milling machine.
First built in 1937 as government enterprise.
Q2:What can you do for us?
A2:We can supply higher quality machines and instruct the installation & training.Service is life long. Q3:Why would I buy from your factory?
A3:Using thicker steel,high quality spare parts,our machines can work for 10 years at least. Q4:How do you ensure the quality of your machines?
A4:Most of our QC workers have more than 20 years experience.
All machines are tested before leaving factory. Q5:What is your leading time and delivering time?
A5:Normally it is 25 working days.
For big project,it is about 2 months.For small machines,in 3~7 days.
We will confirm the exact delivering date when contract. Q6:What size of workshop we should build?How many land do we need?
A6:Once you confirm the machine model,our engineers will design the layout for you accordingly. Q7:What is your warranty?
A7:It is at least 12 months or longer.
