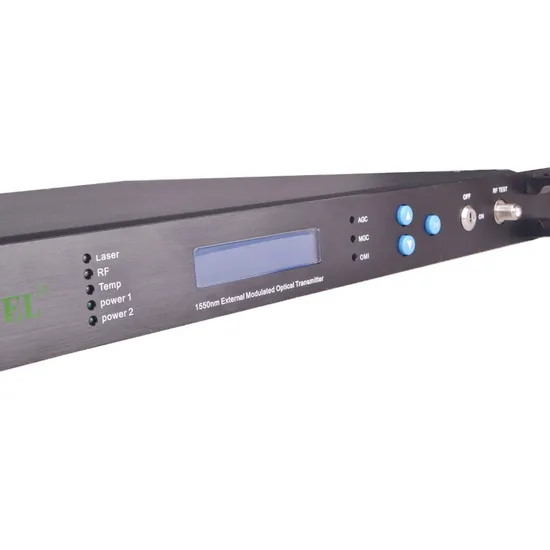

1550nm External Optical Transmitter for Distribution Network

1550nm External Optical Transmitter for Distribution Network

US$1,000.00-3,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ST1550E
Condition
New
Fiber Optical Transmitters Wavelength
1550nm
Optical Transmitter Snmp Interface
RJ45
Optical Transmitter RF Bandwidth
47-862MHz
Optical Transmitter Receiver Sbs
13~20dBm Adj
Optical Transmitter Serial Interface
RS232
Transport Package
Standard Export Package
Specification
55x55x14cm
Trademark
SOFTEL
Origin
Zhejiang, China

Product Description

1550nm External Optical Transmitter For Distribution Network
ST1550 series Advanced type Externally Modulated CATV optical transmitter adopts low noise, narrow bandwidth, and continuous wave laser as its light source. It uses high linearity LiNbO3 external modulator to modulate signal. It eliminates the Chirp Effect of 1550nm direct modulation laser. Due to adopting owned system optimized control technology & using top grade key parts , the machine's technique performance index achieves the standard of same advanced products in the world totally.
PARAMETERS FOR 1 OUTPORT
Performance Index Supplement
Optic feature Operating wavelength (nm) 1540~1563
ITU-TG.692
Wavelength adjustable range (nm) ±1.6 (±200GHz)
Wavelength adjustable mode ±0.05nm stepping
Linewidth (MHz) ≤1 FWHM(Δλ)
Side mode suppression ratio (dB) ≥45 SMSR
Equivalent noise intensity (dB/Hz) ≤-160 RIN (20~1000MHz)
Output power (dBm) 1×5 Optional 1×3, 1×6, 1×7
Return loss (dB) ≥55
optical fiber connector SC/APC Optional FC/APC,LC/APC
RF feature Work bandwidth (MHz) 47-862 47~1000, 47~1080 optional
Input level (dBmV) 18~28 AGC
Flatness (dB) ≤±0.75 45~862MHz
≤±1.5 862~1000MHz (optional)
Return loss (dB) >16
Input impedance (Ω) 75
RF port F-Female
Link feature Transmit channel PAL-D/60CH PAL-D/99CH
CNR1 (dB) ≥52 ≥50.5 Back to back
CNR2 (dB) ≥50.5 ≥49 50Km optical fiber, 0dBm receive
CTB (dB) ≤-65 ≤-65
CSO (dB) ≤-65 ≤-65
SBS restrain (dBm) 13
General feature SNMP network management interface RJ45
Communication interface RS232
Power supply (VAC) 90~265 50/60Hz
(VDC) -48 30~72
Power Consume (W) ≤50 Single power works
Operating temp. (°C) 0~50 Machine temp. control automatically
Storage temp. (°C) -40~85
Operating relative humidity (%) 5~95
Size (") 19×14.5×1.75 (W)x(D)x(H)

PARAMETERS FOR 2 OUTPORT
Performance Index
Wavelength ADJ. Range (nm) ±1.6 (±200GHz)
Wavelength ADJ. Mode ±0.05nm stepping
Side mode suppression ratio (dB) ≥45
Equivalent noise intensity (dB/Hz) ≤-160
Input level (dBmV) 18~28
Input impedance (Ω) 75
RF connector F-Female
SNMP NM interface RJ45
Communication interface RS232
Linewidth (MHz) Typ.=0.65
Output power (dBm) 2*3,2*5, 2*6, 2*7, 2*9, 2*10, 2*11 optional
Return loss (dB) ≥50
Link feature Transmit channel PAL-D/60CH CNR1 (dB) ≥53
CNR2 (dB) ≥51.5
CTB (dB) ≤-65
CSO (dB) ≤-65
Transmit channel PAL-D/99CH CNR1 (dB) ≥51.5
CNR2 (dB) ≥49.5
CTB (dB) ≤-65
CSO (dB) ≤-65
SBS restrain adjustable (dBm) 13~18
Optical fiber connector SC/APC

Company information
Shipping & Package
Customer feedback
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and ****** Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
