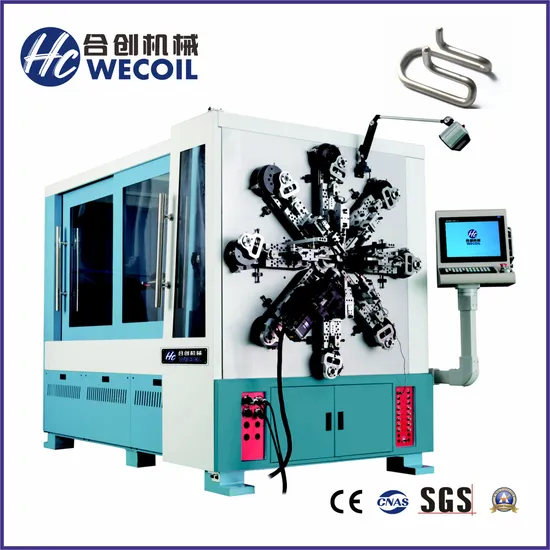

HCT-1245WZ  CNC Wire bending machine

HCT-1245WZ CNC Wire bending machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
HCT-1245WZ
Certification
ISO, CE
Wire Size Range
1.2-4.5mm
Total Axis
12 Axis
Servo Motor Brand
Yaskawa
Feeding Roller Pairs
3 Pairs
Max Outside Diameter
Φ120mm
Spring Index
4
Max Feeding Speed
120m/Min
Dimension
L2700mm*W2000mm*H1900mm
Weight
5000kg
Quill Motor
1.3kw
Forming Motor
1.8kw*8
Feeding Motor
4.4kw
Spinner Motor
1.0kw
Transport Package
Vacuum Packaging
Specification
L2700mm*W2000*H1900mm
Trademark
WECOIL
Origin
China
HS Code
8463300000
Production Capacity
500 Sets

Product Description

The feeding system are equipped at the rotation system of the machine, it has 4 pairs feeding rollers, 2 rollers as one pair, different wire size need different feeding rollers, the computer controls the feeding system, the moving unit is 0.01mm, the maximum moving length is 99999.99 unit.
HCT-1245WZ 12 axis Camless CNC Versatile Spring Rotating Forming Machine, is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, Feeding axis, Quill rotating axis, Wire rotating axis and Spinner axis. It composed of crank connecting link system, feeding and rotating system, coiling straightening system and quill system. It can install the device of hydraulic pressure scissors, low noise; the damage is zero on mandrel and machine. It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and such highly difficult springs. Largely increased the spring making range, it is precise, stable and easy to operate.
The crank connecting link system are include eight knife rest, eight knife rest are separately driven by eight Yaskawa servo motor through VRB reducer, no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire rotation system synchronous through CNC program, at the same time the feeding accuracy can be reach within 0.1mm during wire rotation.
