40cr Rod Deep Hole Processing Special Purpose Deep Hole Drilling Machine Manufacturer

Product Description

40Cr Rod Deep Hole Processing Special Purpose Drill Machine Manufacturer

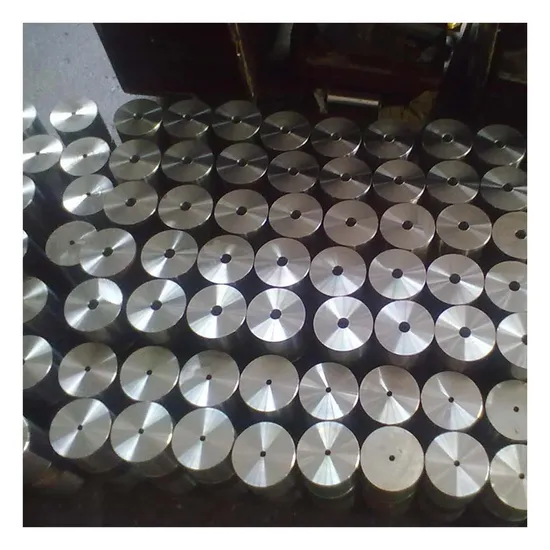

This machine is designed and developed for processing bar shaft products. Uniaxial, biaxial, four axis are optional according to user' S demand. Three jaw chunk or self drive cone disc are adopted , to provide the most appropriate solutions to users .
CNC Deephole drilling machine suited for drilling 3-D or 2-D hole system. It is adopting chip moved outer, with high efficiency, high accuracy , drill small-holes by "gun-drilling "method. It can instead of drilling,counting,reaming by one drilling process obtain sourcing accuracy. Bord accuracy is IT7-IT10, roughness Ra3.2-0.04µm, linearity<=0.05mm in 100mm length. It is used widely in plastic and rubber industry, hydraulic mechanism, automobile and tractor, generator and aviation industry for machining deephole porforation; such as cooling hole, elecheating hole, valve distributor, pump steering sharft, spindleheat-exchanger, plate, etc. Applications
At present, deep hole drilling is mainly used in the industries as following:
1,Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
2,Hydraulic machinery industry: valve, distributor and pump, etc..
3, Automotive industry: cylinder, fuel supply system and other partso Aerospace industry: the propeller, landing gear and other parts.
4, Chemical and generator industry: heat exchange parts. In the future, deep hole driling will be more widely used in different fields, and will have moreexcellent performance.
Product Parameters

ltems		Z500	Z1000	Z1500
Processing Capacity	Machining aperture range	4~30mm	4~30mm	4~30mm
	Maximum drilling depth	500mm	1000mm	1500mm
	The maximum length of workpiece	600mm	1100mm	1600mm
Spindle	Qty, of spindle	1(Or2~3)	1(Or2~3)	1
	Spindle centerline spacing	200mm	200mm	200mm
	Maximum Speed of spindle	4500rpm	4500rpm	4500rpm
	Spindle feed speed	100mm/min	100mm/min	100mm/min
	Spindle fast moving speed	1000mm/min	1000mm/min	1000mm/min
Power	Spindle Motor	7.5kw	7.5kw	7.5kw
	Total Power	18kw	18kw	18kw
Cooling System	Pressure range of cooling liquid	2~10MPa	2~10MPa	2~10MPa
	Flux range of cooling liquid	0~200L/min	0~200L/min	0~200L/min
Machine Tool	Floor Area of Machine Tool(Length*Width)	4300×2700×1900mm	4800×2800×1900mm	5000×2600×2000mm
	Weight	5ton	7ton	10ton

FAQ
Q.What are your normal lead times?
A.Our company lead times range from 30-45 days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, Cash, Gredit Card etc.
Q.What kind of package do you offer?
A.Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification?
A.Yes, we have CE certification, machine quality is one year guaranteed.
After sales services:
We have Local After-sales Service in India and Vietnam.
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
