001X7 Styrene Series Gel Strong Acid Cation Exchange Resin for Water Softening

Product Description

Company Profile
Product DescriptionStrongly Acidic Styrene-Based Cation Exchange Resin for Hardness Removal
PRODUCT DATA SHEET:
001×7 is a gel-type strongly acidic cation exchange resin of the polystyrene series, containing a sulphonic acid functional
group. It has excellent physical and chemical stability and thermostable performance. With its additional fine selectivity
and high exchange capacity, it is mainly applied in water demineralization system of various industries such as metallurgy,
chemical engineering, electric power, electronics, semiconductor, food& beverage, cosmetics and pharmaceuticals.
PROPERTIES:

TECH-INDEXES:	SPECIFICATIONS:
Matrix:	Styrene-divinylbenzene copolymer
Functional groups:	_HSO3-

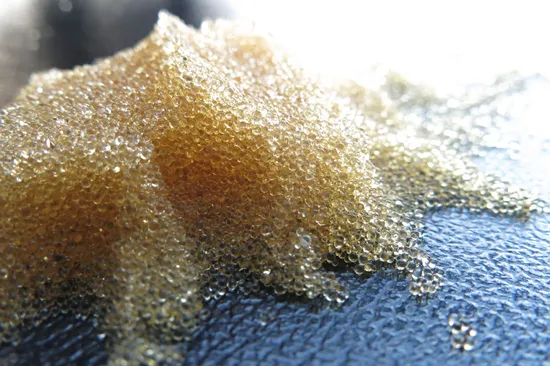

Physical form:	Claybank transparent particles
Ionic form as shipped:	Na+form
Moisture holding capacity(%):	45 to 55%
Total mass exchange capacity:	≥4.6mmol/g
Total bulk exchange capacity:	≥1.9mmol/mL
Moisture true density:	1.24~1.28g/mL
Moisture bulk density:	0.77~0.87g/mL
Particle size:	0.315~1.25mm
Uniformity coefficient:	≤1.6
Integrated beads ratio after grinding test:	≥95℅
Swelling rate of resin after ionic state transition:	Na+ ->H+ : 8~10%

SUGGESTED OPERATING CONDITIONS:

Maximum operating temperature:	120°C
Applicable PH range:	0~14
Minimum bed depth:	800mm
Service flow rate:	2~10 BV/h
Backflush flow rate:	4~10 BV/h
Maximum service velocity:	40 m/h

Regenerant:	NaCl	HCl	NaOH
Level(Counted by 100%):	80~220g/L	50~150g/L	60~150g/L
Concentration:	5~10℅	3~5℅	2~4℅
Flow rate:	2~8 BV/h	2~5 BV/h	2~8 BV/h
Minimum contact time:		30min
Slow rinse:		2BV at regeneration flow rate
Fast rinse:		4~8 BV at service flow rate
*1 BV(Bed Volume)= 1m3 solution per m3 resin
