CNC-6034 5 Axis Double Column Machining Center Gantry Type Milling Machine

CNC-6034 5 Axis Double Column Machining Center Gantry Type Milling Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
CNC-6034
Application
Glass, Wood, Steel, Metal, Iron, Aluminum, etc.
Process Usage
Metal-Cutting CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
SGS
Condition
New
Transport Package
Wooden Box
Trademark
LiSN
Origin
China
HS Code
8457103000
Production Capacity
10000pieces/Year

Product Description

Product Description

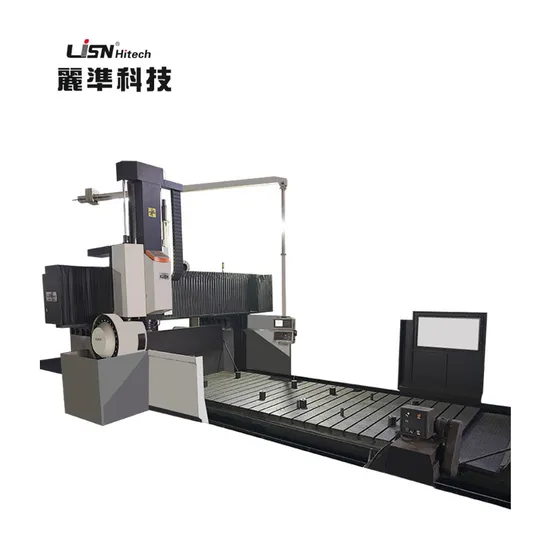

The CNC-6034 is a 5 axis double column mahining center. It has the characteristics of high speed, high performance and high precision, and excellent stability. The body of the machine is made of high hardness and high rigidity materials which provies the machine extremely stability. The machine use the heavy box structure, all castings are made of excellent cast iron, and the ribs inside the fuselage have been strengthened to provide excellent rigidity for the whole machine.

This machine is also equioed a high rigidity, high precision and high speed spindle. The speed range of the spindle is 4000RPM. This spindle performance is excellent, not only can achieve high speed precision cutting, but also can achieve low speed heavy cutting. The travle distances of the X, Y and Z axis are 6200/4000/1250. The machine is widely used in aerospace, shipbuilding, energy, rail transit, construction machinery, automobile, mold and other industries.

This machine can be selected 4 axis or 5 axis version base on your processing requirements.


Product Parameters
ITEM MODELS CNC6034
WORKTABLE (WIDTH*LENGTH) mm 6000*2600

MAX LOAD BEARING OF WORKTABLE
t 28
X/Y/Z AXIS TRAVEL mm 6200/4000/1250
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 350-1600

SPINDLE HOLE TAPER

SPINDLE SPEED RANGE
r/min 4000

TRANSMISSION OF SPINDLE BOX

BELT/DIRECT
Optional

DISTANCE BETWEEN TOW COLUMNS
mm
X/Y/Z RAPID FEED SPEED m/min 8/10/10

MAX CUTTING FEED SPEED
m/min 7
X/Y/Z POSITION ACCURACY mm 0.021
X/Y/Z RE-POSITION ACCURACY mm 0.02

MACHINE DIMENSION
mm 15000*7500*6500

MACHINE WEIGHT
T 90
POWER DEMAND KVA ≥6
AIR PRESSURE m ³mim ≥0.5

Standard Configuration for Gantry Series 1. Spindle temperature control system
2. Central automatic lubrication system
3. Fully sealed sheet metal
4. Cutting fluid system (with pump and tank)
5. Strong double - spiral iron chip roller
6. Chain type iron chip conveyor and collecting bucket
7. Foundation bolts and level adjusting screws
8. Adjusting tool
9. Warning lights
10. Blow air cleaning device
11. Automatic power failure system
Optional Configuration for Gantry Series 1. 8000/10000RPM Direct Driven Spindle
2. Handle and broach bolt: DIN50/CAT50/ISO50
3. Increase the height of the column by 200mm
4. 40 tools magazine tool
5. XYZ three axis optical ruler (HEIDENHAIN)
6. Spindle temperature rise heat compensation function
7. Oil circuit tool handle connection
8. Spindle center water outlet system
9. Automatic tool length measuring device
10. Automatic workpiece measuring device
11. CNC rotary worktable
12. Disc type oil-water separator
13. Spray cooling system

Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
