Single or Multistage Stage Variable Pitch Air Cooled Oilless Oil Free Electrical Dry Rotary Screw Vane Vacuum Pump For Vacuum Industry

Product Description

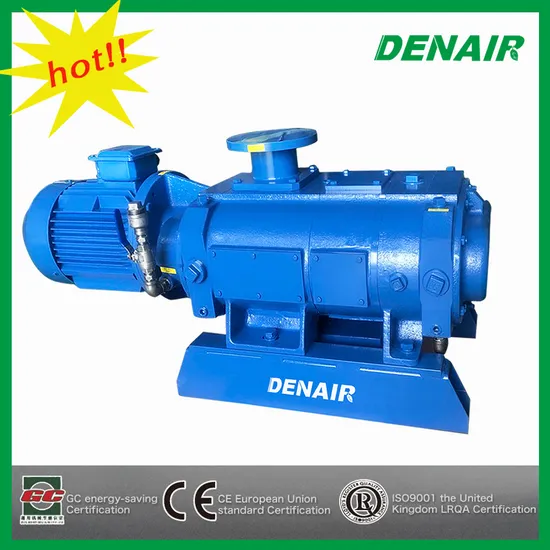

DS Series Dry Screw Vacuum Pump
Features
1.Exhaust Path Is Short, Reduce The Deposition Of Reactants.
Comparing with other types of dry vacuum pump,DENAIR screw vacuum pump has the shortest gas path in the vacuum pump and that could reduce the contamination of process gas. Screw rotors can play as a powder transmission mechanism,we runs well even there has lots of contamination inside the pump.
2.The Optimal Linear Sealing, The Pump Performance.
Patented rotor profile can provide rotor excellent sealing effects thus a larger clearance is allowable in between.Pump rotor wesring and rotor jam by the process contamination can be reduced by larger allowable clearcance.
3.Simple Structure, Low Fault Rate And Easy Maintenance
Screw type vacuum is composed by a pair of screw rotor and isolation plates are required in different between rotors and isolation plates can also be avoided.Overhaul Hanbell dry pump is much easier than other type of dry pump,so the erpair time is shorter and the cost is saver.
4.Microcomputer Operation, Remote Monitoring, Considerate Protection
Microprocessor controller provides lots of pump parameters for running status monitoring.Pump can be easily operated and monitored by the operation panel.Remote control software can help the customer monitor the pump running status remotely.
DS Vacuum Pump Speed Curve
Advantages 1.Special cooling liquid cooling, to avoid the cooling water may cause corrosion to the hull.
2.Mobile operation interface, convenient operation; Display and the actual work of vacuum pump and can be selected to both languages, according to the real close to the customer.
3.Catch the power connector, safe and convenient.
4.The nitrogen gas heater, make the vacuum pump is more suitable for CVD, PECVD and other semiconductor technique process.
5.The control signals and communication signal interface, remote monitoring was carried out on the vacuum.
Application 1.The health care industry.
2.Lighting industry.
3.A variety of analytical instruments.
4.Electronics, semiconductor industry.
5.The power industry.
6.Refrigeration industry.
Technical Prameters

Type	Unit	DS180		DS250		DS360		DS540		DS720
		50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz
Pumping speed	m3/hr	180	216	250	300	360	432	540	650	720	850
	L/min	3000	3600	4200	5000	6600	7920	9000	10800	12000	14400
	L/S	50	60	70	84	110	132	150	180	200	240
Extreme pressure	mbar	0.02	0.01	0.02	0.01	0.02	0.01	0.02	0.01	0.02	0.01
	Torr	0.015	0.0075	0.015	0.0075	0.015	0.0075	0.015	0.0075	0.015	0.0075
	Pa	2	1	2	1	2	1	2	1	2	1
Power	kW	7.5	7.5	7.5	7.5	11	15	18.5	18.5	22	22
Speed	RPM	2900	3550	2900	3550	2900	3550	2900	3550	2900	3550
Inlet diameter	mm	65		80		100		150		150
Outlet diameter	mm	40		40		65		65		65
Gear chamber oil content	L	0.85		0.85		1.40		2.00		2.00
Cooling water	L/min	2.50		2.60		2.80		3.00		4.00
	gal/min	0.67		0.70		0.75		0.80		1.07
Weight	Kg	295		350		480		520		680
Noise level	dB(A)	75		78		81		85		86
Room temp	ºC	5-40
Maximum permissible humidity		90%

Type	Unit	DSV250		DSV360		DSV540		DSV720		DSV1200
		50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz
Pumping speed	m3/hr	250	300	400	480	580	700	800	960	1200	1440
	L/min	4200	5000	6600	7920	9600	11500	13200	15800	19800	23700
	L/S	70	84	110	132	160	192	220	264	330	396
Extreme pressure	mbar	0.02	0.01	0.02	0.01	0.02	0.01	0.02	0.01	0.02	0.01
	Torr	0.015	0.0075	0.015	0.0075	0.015	0.0075	0.015	0.0075	0.015	0.0075
	Pa	2	1	2	1	2	1	2	1	2	1
Power	kW	5.5	7.5	7.5	11	11	15	15	18.5	22	22
Speed	RPM	2900	3550	2900	3550	2900	3550	2900	3550	2900	3550
Inlet diameter	mm	65		80		100		150		150
Outlet diameter	mm	40		40		65		65		65
Gear chamber oil content	L	0.85		0.85		1.4		2		2
Cooling water	L/min	2.50		2.50		2.60		2.80		3.50
	gal/min	0.67		0.67		0.70		0.75		0.94
Weight	Kg	295		350		480		520		680
Noise level	dB(A)	72		73		75		78		80
Room temp	ºC	5-40
Maximum permissible humidity		90%

Note:
1.The amount of oil listed above is for reference only and is usually fluoride and mineral oil. The device is equipped with pump oil and grease oil.
2.The amount of cooling water is based on the ambient temperature of 30ºC and the cooling water inlet temperature of 20ºC . The use of circulating water will vary, and the water pressure will be 0.15-0.2Mpa.
*) Specifications are subject to change without prior notice
