Rbt Machinery Making Suitcase Luggage Helmet Plastic Thermoforming Machine

Rbt Machinery Making Suitcase Luggage Helmet Plastic Thermoforming Machine

US$16,000.00-17,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RB-A8-1
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Life Time
OEM
Can Be Customized Per Required
Suitable Industry
Luggage Suitcase
Application
Luggage Vacuum Forming
Leadtime
15days
Column Number
Four Coloumn
Molding Method
Vacuum Forming
Transport Package
Plastic Stretch Film and Wooden Pack
Specification
L2600*W1300*H2460mm
Trademark
RBT
Origin
Quanzhou, China
HS Code
8477409000
Production Capacity
20set/Month

Product Description

Products Description:

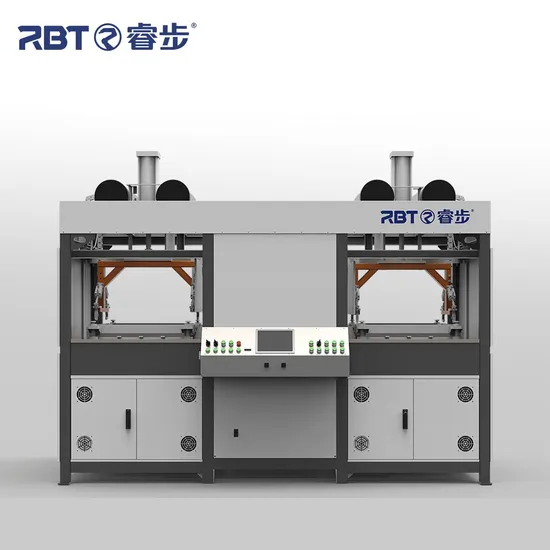

RBT Machinery Automatic Plastics-Sucking Vacuum Forming Luggage/Suitcase Making Machine
Parameters:
RB-A8-20/24/28 Luggage vacuum forming machine
Model RB-A8-20 RB-A8-24 RB-A8-28
Sheet Material and Thickness ABS,PC etc;1-4mm
Input power 380v±10%,50HZ
Vacuum capacity (M³) 0.2M³ 0.3M³ 0.35M³
Vacuum pressure (MPA) -0.07 ~ -0.09MPA
Air pressure (MPA) 0.65-0.75MPA
Air consumption (L / MIN) 550L/MIN 650L/MIN 800L/MIN

Total machine power (KW) 39.5KW 49KW 55KW
Working power (KW) 35KW 44KW 50KW
Power copper wire model 16mm2 16mm2 25mm2
ABSABS case max. output (pcs / H) 110 105 90
PCPC case max. output (pcs / H) 85 80 70
Machine Type 20inch 24inch 28inch
Maximum mold size (L*W*H ) 600*420*200MM 690*510*200MM 780*600*200MM
Maximum sheet size (L*W*H ) 730*550MM 830*650MM 930*750MM
Maximum frame size (L*W) 680*500MM 780*600MM 880*700MM
Machine weight (T) 2.0T 2.0T 2.1T
Overall dimensions(L*W*H ) 3000*1700*2450MM 3300*1700*2450MM 3600*1850*2500MM




Machine Advantage Features: 1. Precision Molding: Ensures accurate and consistent shaping of suitcases, resulting in high-quality end products.
2. Versatility: Capable of processing a variety of materials, including ABS, PC, and polypropylene, making it suitable for diverse luggage designs.
3. High Efficiency: Streamlined production processes reduce manufacturing time, increasing overall output.
4. Cost-Effective: Reduces material waste and labor costs through efficient design and automation, leading to lower production costs.
5. User-Friendly Interface: Many machines come equipped with advanced control systems that make operation and adjustments easy for operators.
6. Durability: Built with robust materials and engineering, these machines offer long-lasting performance and reliability under continuous use.
7. Customizable Designs: Offers flexibility for producing various suitcase styles and sizes, accommodating unique customer requirements.
8. Environmentally Friendly: Some models are designed with energy-efficient features and the capability to work with recyclable materials, reducing
the environmental impact.
9. Rapid Production: Facilitates quick changeovers and setup, allowing manufacturers to respond swiftly to market demands.
10. Advanced Cooling Systems: Helps in maintaining optimal temperatures during the forming process, ensuring higher quality and consistency in the final product.

Application:
RBT luggage vacuum forming machine is suitable for forming of such sheet as ABS,PC or recycled material.It is special for processing luggage/trolley case shell professionally with fast speed and high quality. This machine provided with automatic separated frame operation and upper-lower double heating with PLC intelligent control system.Machine can be customized as customer requirement.
About Us:

RBT Machinery is your go-to intelligent equipment integrated solution provider, with over 25 years of experience in R&D, manufacturing, sales, and technical services. We take pride in being the best quality Chinese supplier of luggage production machinery!
We are CE and ISO9001:2008 certified, with a comprehensive running system covering design, development, production, installation, and service. Strong partnerships with globally renowned luggage manufacturers such as Samsonite, Crown, VIP, and others.

Service Advantage: With a comprehensive running system covering design, development, production, installation, and service, we ensure
seamless integration of our machinery into your production processes. Technology Advantage: Our partnership with globally renowned luggage manufacturers and the experience of over 25 years in the industry give
us a technological edge in delivering efficient solutions.
Since our inception, we have focused on continuous innovation and improvement, establishing strong partnerships with leading industry players and
expanding our global reach.
After Sales Service:
Installation training (3 options) :A. We will provide installation, operation, maintenance and troubleshooting training videos and user manuals in English, as well as technical guidance via email, fax, phone /Messenger/WhatsApp, etc. if you encounter problems with installation, use or adjustment.
B. You can come to China for training. We will also provide accommodation during the training.
C. China's strong after-sales service team. Our engineers (staff) can speak English to communicate and solve problems. Flights can also be arranged.
Training time: 3-7 working days (recommended).For installation, commissioning & training (maintenance and operation of the machine) to the user's personal work site, it shall be provided free of charge by the supplier. The Supplier's airfare (round trip), food, accommodation, local transportation, translation, Internet, communication and visa costs at the Buyer's site shall be borne by the Customer in accordance with the actual documents.
Certificate:
Some Cooperation Customers:
Packing&Shipping:
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
Exhibition:


FAQ:
Q1. When was your factory established?We have been specialized in the R&D, manufacturing and intelligent manufacturing solutions of CNC Machining since 2000, mainly focusing on CNC Machining for plastic luggage suitcase, thermoformed plastic, composite parts, patterns & moulds, aluminum/ paper honeycomb, and soft metal like aluminum/brass/ zinc from R & D, design, production, sales to after-sales technical service.Q2. What should I do if there is a problem with this machine during the warranty period?The quality assurance period is 12 months from the date the goods arrive at the destination port. Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period. After the quality assurance period, if you need to repair or replace parts, you must pay.Q3. How to install and use?We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the machine. When you encounter installation, use or adjustment problems, we will provide technical guidance by email, fax, telephone/Messenger/WhatsApp, etc.Q4. What should I do if there is an after-sales problem?You can directly describe your problem to the after-sales staff. China's strong after-sales service team. Our engineers (employees) can communicate and solve problems in English, and can be arranged once a day per person when you need it. If I need to go to your place to help, I will quickly arrange to go there and quickly fly to help you.Q5. How about wholesale price?If you are a wholesaler, distributor or agent, please contact us to get wholesale price.
