Vertical Drilling and Milling Machine Zx7550 Zx7550W Zx7550c Zx7550cw
| US$4,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX7550 ZX7550W ZX7550C ZX7550CW
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month
Product Description

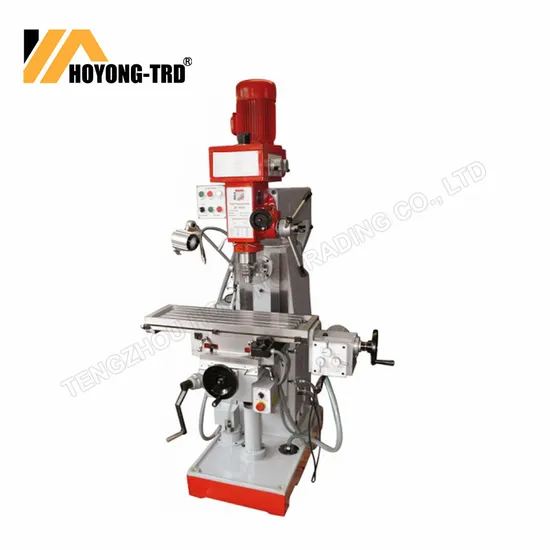

VERTICAL MILLING AND DRILLING MACHINE:
1. Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With V-belt spindle drive and gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
SPECIFICATIOS:
| MODEL | ZX7550 | ZX7550C | ZX7550W | ZX7550CW |
| Max.drilling dia (mm) | 50 | 50 | 50 | 50 |
| Max.horizontal milling dia (mm) | 100 | 100 | 100 | 100 |
| Max.vertical milling dia (mm) | 25 | 25 | 25 | 25 |
| Max.boring dia (mm) | 120 | 120 | 120 | 120 |
| Max.tapping dia | M16 | M16 | M16(Vertical) | M16 |
| Distance.spindle to table surface (mm) | 140-490 | 90-490 | 80-460 | 90-490 |
| Spindle speeds range (r.p.m) | 230-1825 | 115-1750 | 230-1825(Vertical) 80-1300(horizontal) | (Vertical)115-1750 (Horizontal)60-1350 |
| Spindle travel | 120 | 120 | 120 | 120 |
| Table size (mm) | 800×240 | 800×240 | 800x240 | 800×240 |
| Table travel (mm) | 400×230 | 400×230 | 400x230 | 400×230 |
| Overall dimensions (mm) | 1100×1100×2080 | 1100×1100×2080 | 1280×1100×2080 | 1280×1100×2080 |
| Motor (Kw) | 0.85/1.5 | 0.85/1.5 | 0.85/1.5(Vertical) 1.1(horizontal) | ( Vertical)0.85/ 1.5 (horizontal)2.2 |
| N.W/G.W (Kg) | 610/770 | 610/770 | 700/880 | 850/1000 |
