Factory Price CNC Machine Tools Suitable for Thermostatic Valves CNC Machine

Factory Price CNC Machine Tools Suitable for Thermostatic Valves CNC Machine

US$14,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DY-3D-TV08-15HSP
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Name
CNC Machine Tool
Turret Driven Type
Servo Motor
Applicable
Filter, Thermostatic Valve, Pressure Reducing Valv
Workbench Operation Mode
8 Divisions
Fixture Type
Hydraulic Synchronous Clamp
Transport Package
Packaged Into Wood Carton
Trademark
Haochen
Origin
China
HS Code
8458190000
Production Capacity
100 Sets Monthly

Product Description

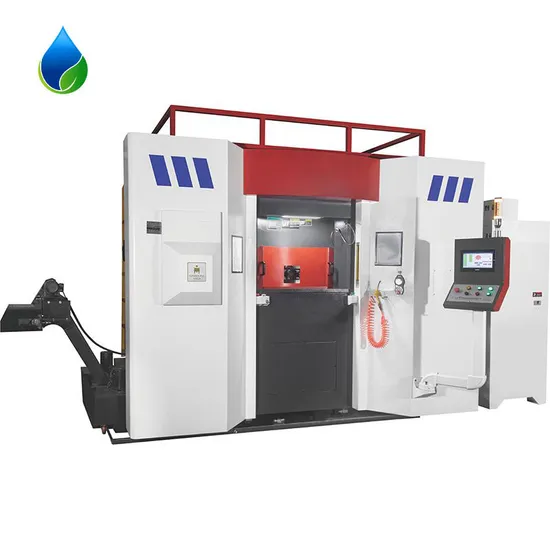

High Speed CNC Full Servo Multi Axis Horizontal Combination Special Machine
Product Description
Suitable for: filters, thermostatic valves, pressure reducing valves.
Feature
1. This machine tool adopts a simplified CNC program operation interface. (CNC numerical control system)
2. The structure adopts HT300 integral casting technology and undergoes three aging treatments to ensure accuracy without deformation.
3. Processing purpose: Suitable for products and drawings provided by customers, or customized.
4. Action section: Layout according to the requirements of the processed product.
5. Workbench operation mode: 8 divisions (servo turntable), 1/8=1 second.
6. Fixture type: hydraulic synchronous clamp.
7. Equipment is equipped with a sales machine.
8. Blade display function: Standard CNC lathe function, capable of machining NPT threads and arcs with tooth picking.
9. Using absolute coordinates and M3 bus.
10. Processing efficiency: 6-12 seconds per piece.
Product Parameters
Project Parameters Project Parameters
NC system XINJE (optional) Servo turntable repeated positioning accuracy <0.01mm
feed motor 1.5kW high inertia servo Y-axis repeat positioning accuracy <0.01mm
The turntable spins the motor 3.0kW high inertia servo X-axis repeat positioning accuracy <0.01mm
Spread tool broaching motor 0.75kW high inertia servo Y-axis travel 120mm
Borehole rotary machine 4kW spindle servo (optional) Spindle form BT40
Pick teeth rotary motor 3.0kw High inertia servo (optional) Spindle through hole diameter 18
Spindle speed (boring shaft) 0-2200r/min Overall dimensions/weight of the machine 6000x2800x3000mm/15000kg

Detailed Photos

hot selling product

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
