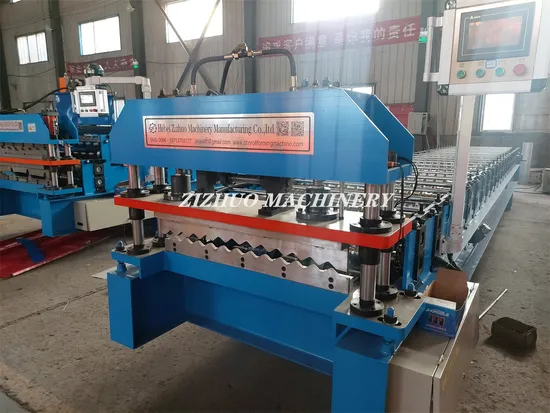

High Speed Galvalume Color Steel Metal Corrugated Sheet Roof Cold Roll Forming Machine

High Speed Galvalume Color Steel Metal Corrugated Sheet Roof Cold Roll Forming Machine

US$11,000.00-18,500.00 1 Set (MOQ)

Basic Info.

Tile Type
Colored Steel
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof
Transmission Method
Hydraulic Pressure
Color
Green, Blue, Red
Voltage
220V, 380V, 400V, 415V
Cutting Device
Hydraulic Cutting
Chain
1′′
Plant Area
5000 M2
Wall Thickness
16mm
Motor Power
7.5kw+4kw
Machine Weight
6500kgs
Transport Package
Nacked
Specification
11*1.6*1.75m
Trademark
zz
Origin
China
HS Code
8455221000
Production Capacity
50sets/Year

Packaging & Delivery

Package Size
1100.00cm * 165.00cm * 175.00cm
Package Gross Weight
6500.000kg

Product Description

Corrugated sheet Galvanized G550 Steel Roofing Sheet Cold Roll Forming Machine Factory Price Detailed Photos
5Ton passive decoiler

Feeding table with hand pre-cut, when a customer wants to change the production line, the pre-cut can cut the material easily, saving cost.
The roller and shafts are high-precision, solid shafts, and the finished product keeps an error less than 2mm
The guide column type hydraulic shear is more stable, and the blade material is Cr12
Delta PLC control system, touch screen, easy operate
The hydraulic pump station, when a customer wants to run the machine, please fill in 2/3 hydraulic oil.
Receiving table is normally 2.5 meters long.
Product Parameters

No. Item Parameter Remark
1 Suitable material Type Color steel, galvanized steel
Thickness(mm) 0.15-0.3mm Test material standard 0.45mm
Yield strength
(Mpa)
≤300mm
Width (mm) About 1000mm
2 Forming speed About 15-20 m/m Not include cutting time
3 The motor of forming system (kw) 7.5kw Depends on the final design
4 Hydraulic station power(kw) 4kw Depends on the final design
5 Voltage requirements AC380V, 50Hz, 3phase According to the customer's request
6 Roller material #45 steel with heat treatment 58-62 degrees
7 Shaft diameter 70mm solid
8 Control system PLC with touchscreen Delta brand

Packaging & Shipping
Exhibition and customers
Why choose us
1. Unique coil processing solutions for metalworking?Hebei Zizhuo Machinery Manufacturing Co., Ltd is aimed at providing our customers with the best quality metal rolling automation solutions and after-sales service.2. Equipment research and developingOur company commits to providing customized coil processing solutions according to each customer's specific metalworking process. With an experienced technical team and continuous research investment, we are capable of offering coil handling solutions that meet higher international standards.3. Manufacturing quality controlWith precision machine tools and skilled workers, from spare parts preparation to equipment assembly, our machine can offer real-time manufacturing updates for our valued customers.
From raw material control, spare parts inspection, and machine assembly, our factory implements a strict quality control process. We commit to offering coil performance.
ll work is just for making sure all the products of machines are qualified.
