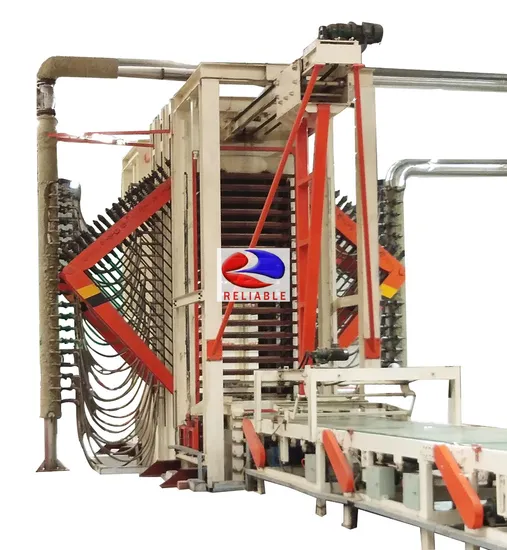

Woodworking Machine Particle Board Hot Press of Pb Line

Woodworking Machine Particle Board Hot Press of Pb Line

US$600,000.00-1,500,000.00 1 Set (MOQ)

Basic Info.

Model No.
Rlpb001
Capacity
30000/60000/80000/120000cbm
Controlling Mode
PLC + HMI
Automatic Grade
Automatic
Application
Woodworking Factory,Furniture Lamination
Trade Mark
Reliable
Pressure Board
2600*1400mm
Heating Method
Steam or Heating Oil
Transport Package
Well Packed in Container
Specification
4*8ft/6*9FT
Trademark
RELIABLE
Origin
Shandong
HS Code
84793000
Production Capacity
10 Sets Per Year

Product Description


Product Description
full automatic chipboard production line for chipboard making machine
1 working layers:18
Loader SET layers distance:220mm
lifting cylinder:φ140mm
pushing cylinder:φ140mm
mat size:3200X1350X18(mm)
1 total pressure:1200T
Hot press SET working layers: 18
with symultaneous system and pressure tank hot platen size:1550x2700x100(mm)
top beam thickness: 1000mm
standby pump+motor connecting to the hydraulic middle beam thickness: 450mm
tank and panel bottom beam thickness: 1000mm
Hydraulic pump: Shanghai Aviation frame thickness: 40mm
layers distance:120mm
Solenoid valve: Yuken cylinder:φ320X6 wuxi made
press weight only: 130 tons
loader&unloader frame size: 180X180X7mm
PLC electroic panel Mitsubishi
hydraulic package complete with 4 pumps
hydraulic tank: 4000X1500X1500 and main pipe: 159mm
accumulator capacity: 9m3 plate thickness: 20mm
press thickness bar: 18.5mm one set
1 working layers:18
Unloader SET layers distance:220mm
lifting cylinder:φ140mm
1 belt width:700mm
Board unloading conveyor SET speed:40m/min
1 speed;40 m/min
Board infeed roller SET motor power: 1.5Kw
1 cooling layers: 72
parallel cooling star SET RPM 1r/m
motor: 7.5kw

Detailed Photos
Packaging & Shipping

Company Profile
Weihai Reliable Imp&Exp Corp., Ltd is located in Linyi city, Shandong province, China, where is famous for the wooden panels and woodworking machinery. Our company was established in 2004, and have been engaged in the manufacturing and supply of woodworking machines since then, Including plywood production machinery, Particle Board production machinery (Linyi Factory), short cycle lamination machinery (Wuxi Factory) and other relevant machinery, and our customers are coming from all round the world, like India, Vietnam, Indonesia, Bangladesh, Sri Lanka, Saudi Arabia, Malaysia, Iran etc.
Our company has more than 10 experienced mechanical and electrical engineers, and they mainly focus on the research and development of the woodworking machinery. Meanwhile our factories are fully equipped with advanced lathe machine, grinding machine, planner and welder, which together contribute to the high precision machinery. Also we have a very strong and experience after-sale team, they are doing all commissioning and maintenance work for our customers.
Our company culture is "Quality is our for-ever goal, after-sale Service is our priority, win-win with customers", and we would like to cooperate with the friends from all around the world.
FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
