Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Transport Package
Iron Pallet
Production Capacity
1000PCS/Year
Product Description

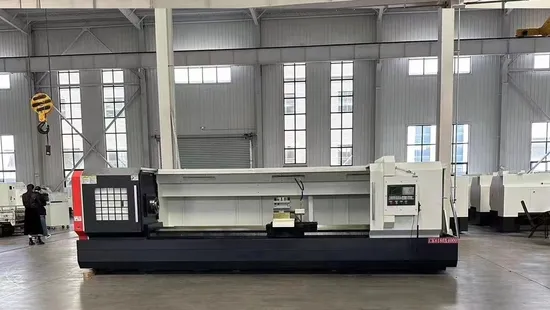

CLK61100E ONE-PIECE CASTING BED CNC LATHE
1. CLK61180E ONE-PIECE CATING BED CNC LATHE SPECIFICATION
2. With semi-closed loop function, the workpiece loading capacity is up to 10 tons,it is suitable for machining variuos heavy-duty shafts, sleevs and discs parts, with complex shapes, such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, grooving, chamfering, and threading. it is easy to program and simple to operate and is ideal for heavy duty machining equipment.
| CLK61180E |
Max. swing over bed | 1800mm |
Max. swing over cross slide | 660mm |
Max. processing length | 3000/4000/5000mm/6000/8000/10000/12000 |
Spindle transmission type | Four-gear, step-less in gear |
Spindle speed steep | 5-320 |
Spindle nose | A2-15 |
Spindle bore | Φ130mm |
Spindle taper | 140 1: 20 |
Spindle motor | 30KW |
Max. tool-post travel | X:700 mm |
Rapid feed speed | X:3000mm/min Z:5000mm/min |
Position accuracy | X:0.025 mm Z:0.03mm |
X, Y and X axes repeatability | X:0.01mm Z:0.015mm |
Processing accuracy | IT7 |
Workpiece surface roughness | Ra1.6 |
Tailstock sleeve dia. | Φ220mm |
Tailstock sleeve travel | 300mm |
Tailstock sleeve taper | MT6# |
Tool-post | 4-statin electric turret |
Tool-post at optional | 6-station or 8-station electric turret |
Toolbar section size | 40*40mm |
Controller | GSK980TDC |
Controller at optional | GSK,FANUC,Siemens |
2.CLK61180E CNC LATHE MACHINE FEATURES
Guide width 970mm
higher stability one-piece machine bed
3 gear spindle speed, stepless in gear
higher rigidity pedestal
wider layer board
integrated automatic lubrication system
3. CLK61180E CNC LATHE MACHINE UASGE
This machine is suitable to process the middle and large size work piece in steel, cast iron, non-ferrous metal material. With the feature of big power and higher rigidity, this machine is applied to heavy-cut the inner circle, ex-circle, end surface and thread in both metric and English system, and could drill and bore holes.
4.CLK61180E CNC LATHE MACHINE STANDARD ACCESSORIES
GSK980TDC or Siemens 808d NC system
30 kw common main motor and frequency changer
4 station electric turret
800mm manual chuck
manual tailstock
automatic integrated lubrication system
coolant system
lighten system
half cover
three-step spindle speed
5.CLK61180E CNC LATHE MACHINE OPTIONAL ACCESSORIES
Fanuc 0I mate TD NC system
6 station or 8 station electric turret
steady rest
follow rest
30 kw servo motor
full cover
