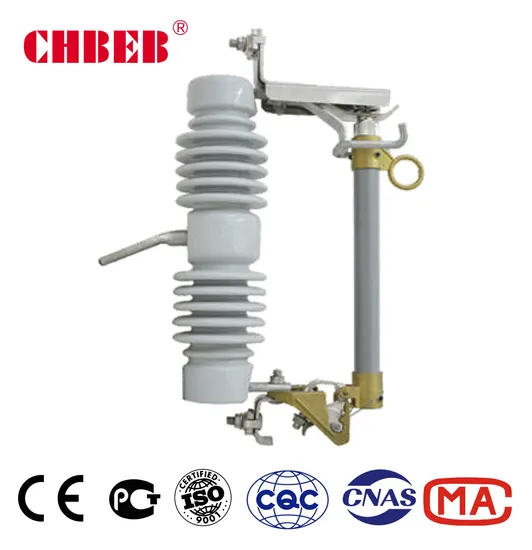

Outdoor High Voltage Fuse with Arc Extinguishing Device, RW (F) Type

Outdoor High Voltage Fuse with Arc Extinguishing Device, RW (F) Type

US$1,000.00-5,000.00 5 Pieces (MOQ)

Basic Info.

Model NO.
(H)RW(F)
Usage
High Voltage
Shape
According to Customer Requirements
Fusing Speed
FF
Fusing Device
According to Customer Requirements
Standard
IEC/ANSI/IEEE
Customizable
OEM/According to Customer Requirements
Model Number
RW3-12 / RW4-24 / RW5-36 / RW10-40.5
Rated Voltage
3kv / 6kv / 12kv / 24kv / 36kv / 40.5kv
Rated Current
10A / 50A / 100A / 200A / 400A
Fuse Type
Drop-out Fuse / Expulsion Fuse / Current Limiting
Transport Package
Standard Shipping Packing
Specification
50.00cm * 30.00cm * 25.00cm
Trademark
CHBEB
Origin
China
HS Code
8535100000
Production Capacity
1000 PCS/Month

Packaging & Delivery

Package Size
80.00cm * 25.00cm * 40.00cm
Package Gross Weight
20.000kg

Product Description


Product Description (H) RW(F) series outdoor high voltage AC drop fuse (hereinafter referred to as "fuse") is applicable to the outdoor overhead distribution systems with a rated frequency of 50Hz and rated voltage of 10kV(12/15/35/40.5). It is used as a protective element of circuit or electrical equipment in case of overload or short circuit fault of a power system. When traveling normally, the fuse is connected in series in the power line, the fuse is in a tensioned state, and the movable joint is locked. When the line fails, the fault current causes the fuse to blow, the movable joint is released, the fuse tube is quickly dropped, and the circuit is cut off, which plays a role in safety protection for the maintenance of the line and equipment. The load type fuse is added with elastic contact and arc extinguishing cover on the basis of the ordinary type, which is used to open and close the load current in the power system.
The fuse shall comply with technical standards such as GB / T 15166.3 - 2008 high voltage AC fuses - Part 3: injection fuses, DL / T 640 - 1997 outdoor AC high voltage drop tested fuses and fuse links ordering technical conditions.
Working Environment:
Ambient temperature: -40C +40C;
Relative humidity: the daily average is not more than 95%, and the monthly average is not more than 90%;
The altitude does not exceed 3000m;
Outdoor wind speed not exceeding 34 meters/second;
Installation site: no fire, explosion hazard, chemical corrosive gas and well-ventilated place.
Note: When the above normal use conditions are exceeded, the user can negotiate with the company.(Updated2025.3.5day)
Detailed Photos

Product Parameters echnical parameters
Note: Our company can supply products according to user requirements.
Model

Rated


Voltage
kV

Rated


Current
A

Rated
maximum


breaking current
kA

1min power
frequency
dry
withstand

voltage
(valid value)
kV

1min power
frequency
wet
withstand

voltage
(valid value)
kV

Rated
lightning
impulse
withstand

voltage
(peak)
kV
Opening
and
closing


load current
A
XS-12/100(200)
12
100
(200)
6.3
(12.5)
42
30
75
/
XS-15/100(200)
15
PD-12/100(200)
12
100
(200)
6.3
(12.5)
42
30
75
/
PD-15/100(200)
15
(H)RW3-10/100(200)
10
100
(200)
6.3
(12.5)
42
30
75
/
(H)RW3-12/100(200)
12
(H)RW4-10/100(200)
10
100
(200)
6.3
(12.5)
42
30
75
/
(H)RW4-12/100(200)
12
(H)RW7-10/100(200)
10
100
(200)
6.3
(12.5)
42
30
75
/
(H)RW7-12/100(200)
12
(H)RW10-10/100(200)
10
100
(200)
6.3
(12.5)
42
30
75
/
(H)RW10-12/100(200)
12
(H)RW10-10F/100(200)
10
100
(200)
6.3
(12.5)
42
30
75
10
(200)
(H)RW10-12F/100(200)
12
(H)RW11-10/100(200)
10
100
(200)
6.3
(12.5)
42
30
75
!
(H)RW11-12/100(200)
12
(H)RW11-10F/100(200)
10
100
(200)
6.3
(12.5)
42
30
75
10
(200)
(H)RW11-12F/100(200)
12
(H)RW12-10/100(200)
10
100
(200)
6.3
(12.5)
45
30
(38)
105
/
(H)RW12-12/100(200)
12
(H)RW12-15/100(200)
15
(H)PRWG1-10F/100(200)
10
100
(200)
6.3
(12.5)
42
30
75
10
(200)
(H)PRWG1-12F/100(200)
12
(H)RW33-12/100(200)
12
100
(200)
6.3
(12.5)
42
30
75
/
(H)RW33-15/100(200)
15
(H)RW5-35/100(200)
35
100
(200)
6.3
(12.5)
95
86
185
/
40.5
(H)RW10-35/100(200)
35
100
(200)
6.3
(12.5)
95
86
185
/
40.5
(H)PRWG2-35/100(200)
35
100
(200)
6.3
(12.5)
95
86
185
/
40.5
