Basic Info.
Type
Powerful Plastic shredders
Raw Material
Plastic Wood Rubber Paper
Knife Classification
Piece Knife Crusher
Knife Roll
Solid Knife Roller
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Name
Waste Plastic Shredder
Key Word
Single Shaft Shredder
Temperature Control
Ormon
Shaft Design
Single Shaft
Motor
55kw Can Customized
Blades
SKD11/D2/9crsi Customized
Material
PP PE Pipe Plastic Lumps Films Wood
Application
Recycled Industry
Transport Package
Wood Case Covered by Plastic Film
Specification
2300mm*1200mm*2000mm
Origin
Zhangjiagang Jiangsu China
Production Capacity
50set/Month
Packaging & Delivery
Package Size
150.00cm * 100.00cm * 167.00cm
Package Gross Weight
3000.000kg
Product Description

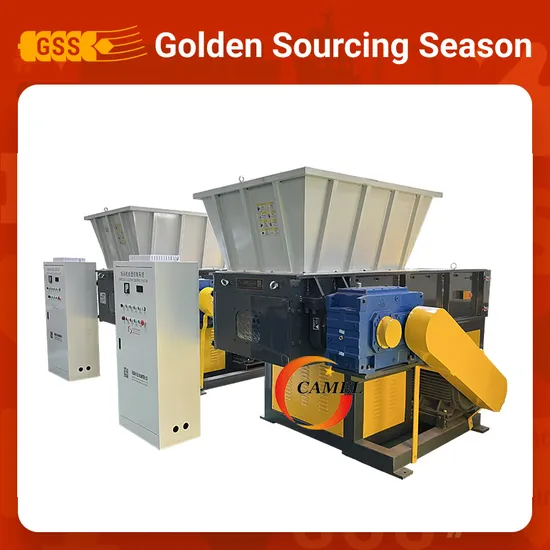

Single Shaft Shredder
Product Description
1.The single shaft plastic shredder is mainly used in all kinds of hollow or solid plastic material. The shredder machine is suitable to PE, PP, PET, ABS, PVC and engineering plastics.
2.This single shaft plastic shredder is new designed especially for shredding various big solid materials, unmanageable materials, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
3.The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.
Here are some shredding examples:
Product Parameters
WD Series Single Shaft Shredder
Model | Power (kw) | Number of rotary knife | Knife size (mm) | Shaft Rotating diameter (mm) | Dimension of crushing chamber (mm) | Output (kg/h) | Weight (kg) |
WD-500 | 18.5 | 28 | 40*40 or 50*50 | φ280 | 500*550 | 300~500 | 2800 |
WD -600 | 22 | 32 | φ280 | 600*650 | 500~600 | 2900 |
WD -800 | 45 | 44 | φ350 | 800*850 | 500~800 | 4100 |
WD -1000 | 55 | 52 | φ350 | 1000*1050 | 800~1000 | 6500 |
WD -1200 | 75 | 68 | Φ350 | 1200*1250 | 1000~1200 | 7000 |
WD -1500 | 90 | 81 | Φ550 | 1500*1600 | 1000~1500 | 10500 |
WD -1600 | 110 | 85 | Φ550 | 1600*1700 | 1000~1600 | 13800 |
Two design: 1.This machine is suitable to treat the big size of plastic product, such as plastic lumps, headpiece material, thick-walled large diameter plastic pipe, film roller, paper, fibre and others
2.Low dust, low noise and easy to operate.
Feed inlet is movable.
Blade
1. The blade base and blade on the rotary roller can be disassembly. It is easy to clean and maintenance.
2. The rotary blade use V shape installation so that the blade can cut material evenly, it can decrease the noise and decrease
energy consumption.
3. Each fixed blade with 2 cutting knife dege, when the fixed blade is wear, it can be rotated to 180 degree, then the blade
cancontinue to use.4. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continue to use.
Mesh Screen
Mesh size can be designed according to customer requirement ,Mesh can control the size of the material.
PLC program control system, automatically rotating, shut down, safe and reliable running of the machine. The blade can rotate opposite direction. Electrical part brand, Siemens Delixi and so on
The main axis is drive by gearbox, its running very stably, low noise and strong power.
To see more product, please click the following weblink:
Double shaft shredder:https://camelmachinery.en.made-in-china.com/product/GdmtJOFuAMkj/China-Industrial-Double-Shaft-Shredder-for-Trash-Can-Waste-Car-Body-Crusher-Steel-Metal-Recycling-Machine.html
Crusher:
https://camelmachinery.en.made-in-china.com/product/lFDGtfOjAkhH/China-Small-Plastic-Grinding-Crusher-for-Bottles-Drums-Hollow-Sheet.html
Packaging & Shipping
Company Profile
Zhangjiagang Camel Machinery Co., Ltd is one of professional manufacturers for plastic extrusion and recycling equipment in China. CAMELMACHINERY aim is to be a top plastic equipment supplier in the world, base on the spirit of this principle, we are not only made our best to meet the market demand but also enhance innovative ability.
CAMELMACHINERY offers following major product lines :
1.PVC/PE/PPR/PP pipe extrusion line
2. PVC garden hose/spiral hose/steel wire reinforced hose extrusion line
3. WPC extrusion line
4.PET bottle recycling line
5.PE/PP film recycling line
6.UPVC PVC ceiling wall panel extrusion line,
7.WPC foam board production line,
8.Single shaft shredder,
9.Double shaft shredder,
10.Plastic crusher and so on.
Certifications
Our customers
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
·A6 380V 50hz 3 phase or any other voltage according to client's requirement.
