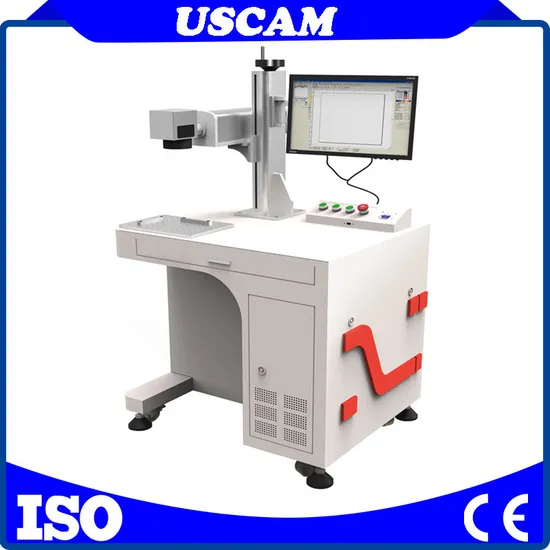

Fiber Laser Marking Machine for Metal Nometal Engraving

Fiber Laser Marking Machine for Metal Nometal Engraving

US$1,550.00-6,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
USJ-20W
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Power
10/20/30/50W
Lifetime
100000 Hours
Working Accuracy
0.001mm
Control Method
Automatic
Current and Power
AC 220V,50Hz
Engraving Speed
4000-7000mm/S
Graphic Format Supported
Ai, BMP, Dst, Dwg, Dxf etc
Laser Length
1064nm
Laser Scanner Rang
110X110/220X220/300X300mm
Min.Line Width
0.01mm
Brand
Raycus/Jpt/Ipg etc
Transport Package
Plywood Package
Specification
Depend On Laser type
Trademark
USCAM
Origin
Jinan City
HS Code
8456110090
Production Capacity
30000

Packaging & Delivery

Package Size
77.00cm * 78.00cm * 151.00cm
Package Gross Weight
120.000kg

Product Description

Fiber Laser Marking Machine adopts the imported fiber laser generator, high speed Galvo system to enable stable laser output and high qulity laser mode. This model Fiber Laser Marking boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production. FurthermoreFiber Laser Marking Machine Price also enjoys the advantages of easy operation, low running cost, long-term trouble -free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.
Technical Parameter
Item Name
Technical Parameter
Model
USJ- 20W
USJ-30W
USJ-50W/100W
Laser power
20W
30W
50W/100W
Laser wavelength
1064nm
Laser type
Fiber laser source
Max Pulse Energy
0.5m J
Repeat frequency
1KHz-1000KHz
Pulse width
6-250 ns
Marking depth
0.01-0.5mm
Marking area
110*110mm/175*175mm/200*200mm/300X300mm
Rated power consumption
500W
800W
1200W
Operating voltage
110V- 240V/50-60 Hz/15A
Cooling
Air Cooling
Packing size
770*780*1510 mm (L*W*H)
Gross weight
120kg KG
Package
Standard strong export wooden case

Application & Sample Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Parts of fiber laser marking machine
Packing and Shipping
After-sale Service
1.1.5years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
FAQ
Q1:How to choose a CNC fiber laser marking machine?
1).Comfirming the marking field lens according to your marking size.
Lens model Marking size Power Aviliable
F160 110*110mm 20w/30w/50w
F210 150x150mm 20w/30w/50w
F290 200*200mm 20w/30w/50w
F430 300*300mm 30w/50w
F580 400x400mm 50w
Note: 100w is Quartz lens (Since normal lens easy to be broken because of 100w is bigger power in marking)

2).Choose a big brand laser source (Standard is Raycus QB type)
3).Confirming if you need extra optional parts according to your marking requirements:
Q2: what's the Payment term ?
30% T/T in advance and 70% before delivery.
Q3: What's the process of the order ?
1).Proforma Invoice
If you like the machine we offered, then we will make you an Proforma Invoice. Then you could pay 30% T/T in
advance, thus we arrange the production for you immediately.
2).Production:
After the 30% T/T as deposit, we will produce the machine immediately, then after after it finished, we will take
video test and pictures for you. If you agree, you could pay the balance.
3).Shipping matter:.
You could ship with your own shipper if it's convenient. and we could help to ship for you.
Get more information, please feel free contact Grace: export01. My pleasure to help you. :):)
