Full Automatic Container Mixer for Powder Coating Equipment

Full Automatic Container Mixer for Powder Coating Equipment

US$2,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FHJ GHJ
Application Area
Chemical
Certification
CE, Atex, TUV
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
Volume
150-2000L
Output
70-1000kg/Tank
Mixing Time
0-10min
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Disc
Operating type
Continuous Operating
Transport Package
Pallet, Case
Trademark
TOPSUN
Origin
Yantai, China
HS Code
8474
Production Capacity
10 PCS/Month

Product Description

Full Automatic Container Mixer for Powder Coating equipment
Website: ytopsun.en.made-in-china.com, ytopsun.en.made-in-china.com

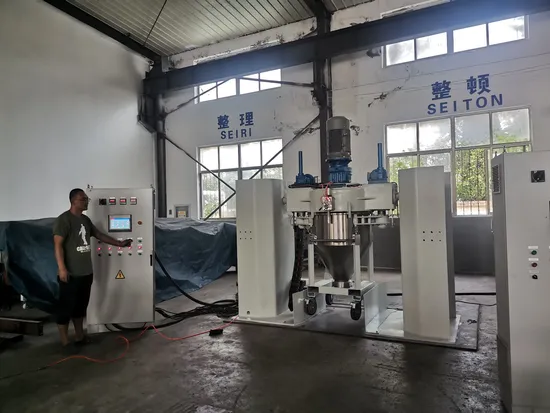

Automatic Container Mixer
Automatic container mixer is working with continuous material trolleys, the container fills the materials and lifted up and connnected tightly with mixing head automatically. The mixing head tilts together with the containers, and then obtain the homogeneous mixing result, after finishing mixing as per setting time, and return to original position, the whole process will be controlled by PLC
Main Features:
Several detachable containers for circular operation
High efficiency
Adopting PLC to realize automation
Homogenized mixture
No curing granule
Convenient for cleaning and maintenance
Safe and relaiable operation
Technical Datas:
Model Volume (L) Output (kg/tank) Mixing Motor (kw) Overturing Motor (kw) Crushing Motor (kw) Mixing Time (min) Control Mode Overall Dimensions
FHJ-150 150 70 5.5 0.37 2.2 0-10 PLC 2150*1100*2300
FHJ-300 300 150 15 3 2.2 0-10 PLC 2150*1100*2300
FHJ-600 600 300 22 4 4 0-10 PLC 2650*1250*2700
FHJ-1000 1000 500 30 4 4 0-10 PLC 2900*1550*3100
FHJ-2000 2000 1000 45 5.5 5.5 0-10 PLC 3500*2350*3650

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistant quality, effective communication, responsible service.
1. Automatic Container Mixer
Automatic container mixer is working with continuous material trolleys, the container fills the materials and lifted up and connected tightly with mixing head automatically. The mixing head tilts together with the containers, and then obtain the homogeneous mixing result, after finishing mixing as per setting time, and return to original position, the whole process will be controlled by PLC
Main Features:
Several detachable containers for circular operation
High efficiency
Adopting PLC to realize automation
Homogenized mixture
No curing granule
Convenient for cleaning and maintenance
Safe and reliable operation
Technical Data:
Model Volume (L) Output (kg/tank) Mixing Motor (kw) Overturing Motor (kw) Crushing Motor (kw) Mixing Time (min) Control Mode Overall Dimensions
FHJ-150 150 70 5.5 0.37 2.2 0-10 PLC 2150*1100*2300
FHJ-300 300 150 15 3 2.2 0-10 PLC 2150*1100*2300
FHJ-600 600 300 22 4 4 0-10 PLC 2650*1250*2700
FHJ-1000 1000 500 30 4 4 0-10 PLC 2900*1550*3100
FHJ-2000 2000 1000 45 5.5 5.5 0-10 PLC 3500*2350*3650

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards; we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistent quality, effective communication, responsible service.
2. High Speed Premixed:
Features:
High efficiency & easy operation
Easy color changing, safe cleaning
Combined mixing & crushing as one
Mixing time presetting, short & homogeneous
Excellent sealing, powder leaking free
Vertical or horizontal type as optional
Technical Parameters:
Model Volume (L) Mixing Motor (kw) Crushing Motor (kw) Mixing Time (min) Overall Dimensions (mm)
GHJ-20 20 0.55 0.37 3-5 700*500*800
GHJ-100 100 3 1.5 3-5 1000*600*900
GHJ-200 200 5.5 3 3-5 1500*900*1400
GHJ-300 300 7.5 4 3-6 1800*900*1400
GHJ-500 500 15 5.5 4-6 1800*1300*1800
GHJ-800 800 18.5 7.5 4-6 1900*1300*2000
GHJ-1000 1000 22 7.5 4-6 2300*1400*2000

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards; we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistent quality, effective communication, responsible service.
3. Double Cone Blender:
Features:
This twin-cone mixer is composed of a rotating container with two cones and two stirrers. This machine is applicable for powder coating, pharmaceutical, chemical, foodstuff, dyestuff, and other multi-compound materials. It has remarkable effect in mixing powders and particles with relatively good fluidity. Its barrel is made of stainless steel, which is polished both inside and outside, featuring beautiful appearance and easy operation.
Technical Parameters:
Model Volume (L) Output (kg/tank) Rotating Motor (kw) Mixing Motor (kw) Mixing Time (min) Overall Dimensions (mm)
SXH-100 300 150 1.5 1.5 0-30 1760*830*2030
SXH-200 400 200 1.5 1.5 0-30 1830*830*2150
SXH-300 600 300 2.2 1.5 0-30 1980*1000*2275
SXH-500 1000 500 4 4 1-30 2630*1140*2620
SXH-1000 2000 1000 5.5 5.5 0-30 3060*1440*2860
SXH-1500 3000 1500 7.5 7.5 0-30 3700*2000*2970
SXH-2000 4000 2000 8.5 8.5 0-30 3800*2500*3500

V SHAPE MIXER
This mixer is suitable for the mixing of dry granule materials for pharmacy or other relative industries.
Specialty
Unique mixing cylinder, high mixing effects , no dead angle , even mixing.
Technical Parameter
Model Total volume
Capacity Model of
auxiliary
vacuum pump
Charge-in time
min
Mixing time
min
Cylinder speed
rpm
Power
kw
Overall size
L×W×H
mm
Gross rotation
height
mm
Weight
kg
V-180 0.18 40 4-8 12 1.1 1780×680×1700 1870 290
V-300 0.3 60 6-10 12 1.1 1880×680×1700 1870 300
V-500 0.5 100 WL50 4-6 6-10 12 2.2 2500×1350×2450 2450 550
V-1000 1.0 200 WL50 6-9 6-10 12 4 3055×1650×2700 2940 850
V-1500 1.5 300 WL50 6-10 6-10 12 4 3343×1650×2980 2940 1020
V-2000 2.0 400 WL50 12-18 6-10 12 7.5 3820×1900×3480 3670 2040
V-2500 2.5 500 WL50 12-18 6-10 12 7.5 3990×1900×3540 3800 2200
V-3000 3.0 600 WL50 12-18 6-10 7.8 7.5 4690×2200×4000 4000 2500
V-4000 4.0 800 WL50 12-18 6-10 7.8 711 4950×2200×4230 4290 2800

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards; we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistent quality, effective communication, responsible service.
4. Why choosing us?
Our boss has worked in this industry for more than 13 years.
Our vice GM has worked in this industry for more than 20 years.
Our technical manager has worked in this industry for more than 7 years.
Our production manager has worked in this industry for more than 8 years.
We have an excellent team. We are experienced, excellent, friendly and responsible, with a view to long term cooperation.
