Automatic One Color Injection Molding Machine for Making Kid Boots

Product Description

>> Descriptions
Material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPU.
Products: Specially designated to manufacture short height full plastic boots or shoes. It is particularly effective to the making of Jelly Shoes and Crystal Shoes.
>> Machine Features
1. The adopted movable ejection unit controlled by oil pressure makes it easier to clear away the material.
2. Pressure switch assures the locking strength by mold lock system for far better product.
3. The emergent safety button is to safeguard the operational safety.
4. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.
5. Conformed to human engineering in design, it features operational compatibility.
6. As the feeding is controlled by back pressure, it is capable of adjusting foaming density of raw material.

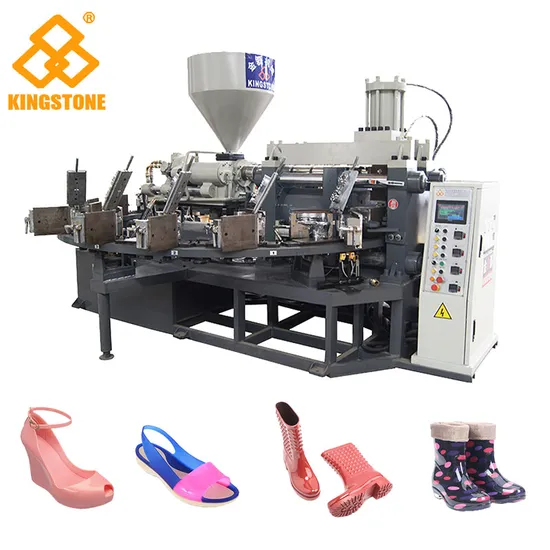

>> Machine Photos
>> Machine Specifications

Machine model			JL-128
Mould-clamping Unit
Work station			10,12,16,20
Clamping force	TON		120-150
Opening stroke	MM		210
Mould dimension	MM		600*280
Height of injection nozzle	MM		280
Injection Unit
Injector	SET		1
Screw diameter	MM		65/70/75
Screw L/D ratio	L/D		20
Max.injection volume	cm3		650-1000
Injection speed	Cm/s		10
Screw rotation speed	R.P.M		0-200
Electricity Consumption			Normal	Servo
Heating power of injector		KW	7	7
Hydraulic unit motor		KW	18.5	15.7+7.5
Total power		KW	25.5	30.2
Temperature control		Section	4	4
Power consumption per hour		Kw/h	15-20	7-10
Dimension and Weight			16 Stations
Machine dimension	(L*W*H)MM		4300*3300*2500
Machine weight	KGS		6000
*Note:Above data only for reference.
