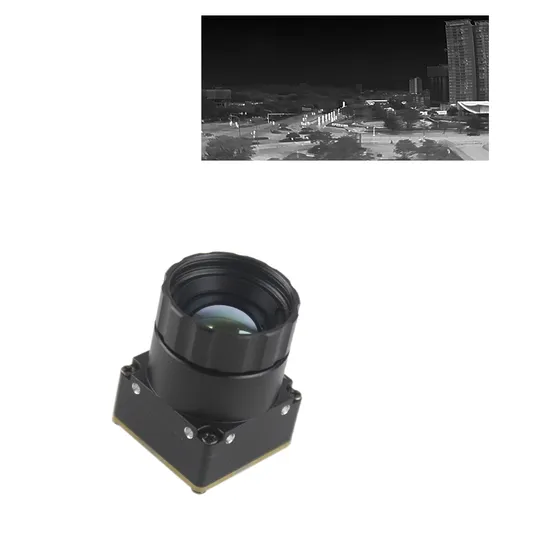

Infrared Camera Module IP Thermal Imaging Camera for Drones Uav Fpv

Product Description

Product Parameters Infrared Camera Module IP Thermal Imaging Camera For Drones UAV FPV

Model	Mini256
Resolution	256x192
Detector Type	Vox
Detector Frame	50Hz
Pixel Spacing	12μm
Response Wave Band	8~14μm
NETD	≤50mK@25ºC,F#1.0(≤40mK optional)
Lens
Focus	3.9mm	6.8mm	9.1mm	13.5mm
Field of View	43.3°×32.8°	26.1°×19.6°	19.4°×14.6°	3.0°×9.7°
F-number	1
Image Adjustment
Polarity	White heat/Black heat
Pseudo Color	Available
Power input
Supply Voltage	5V or 12V
Typical Dissipation @25ºC	<0.5W
Video output
Digital Video	YUV,USB,BT.656
Analog Video	CVBS,PAL,NTSC
Serial Communication	UART,RS232,RS422
Module Physical Properties
Weight	<8g
Size	21×21×10.3mm (without lens)
Temperature Measurement
Temp Measure Rang	From -20ºC to +550ºC
Environmental Adaptability
Work Temperature	From -40ºC to +80ºC
Storage Temperature	From -50ºC to +85ºC
Humidity	5%-95%, no condensation

Based on the leading image processing algorithm and infrared temperature measurement algorithm in the industry, the products of this series provide high - quality infrared image and high - precision temperature measurement function, and it is also characterized by high performance, small size, light weight, low weight and low cost, satisfying the application requirements of SWaP3 (size, weight and power, performance, and price). For more information and quotations, please contact us!
