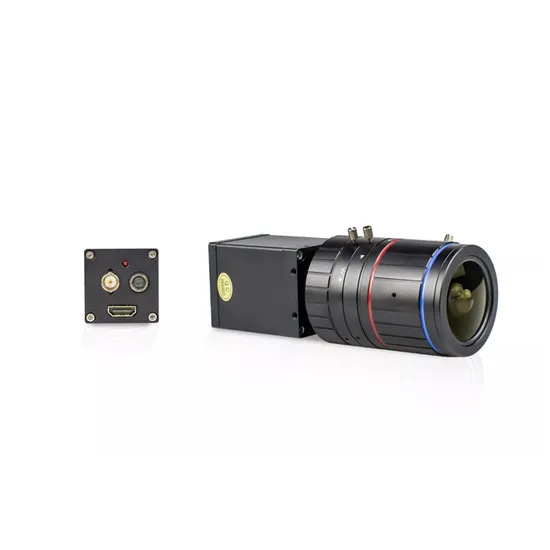

Mini Box 3G SDI and HD-Mi Signal Output 1080P 60fps Industrial Camera
| US$59.00-999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SV-LN321
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
1920*1080
Kind
Manual Focus Lens
Certification
CE, FCC, RoHS
Feature
Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance
10-30m
Sensor Size
1/1.8 Inch
Remote Control
Without Remote Control
Image Sensor
1/1.8" CMOS Sensor
Total Pixel(MP)
1945 (H)X 1097 (V) = 2.13m Pixels
SDI Output Resolution
(720p/25/30/50/60@1080I50/60@1080P25/30/50/60) Fps
HDMI Output Resolution
(720p/25/30/50/60@1080I50/60@1080P25/30/50/60) Fps
HDMI Version
1.4A
Lens
3.8-16mm / Manual Iris / Manual Lens
Menu Functions
Support Bottom Menu
Low Illumination(Lux)
Color: 0.13 Lux/ B/W: 0.013lux
Explosure
Brightnessadj/Electronic Shutter Mode/Sens-up Adj/
Day/Night Switch
Auto(Icr)/Color/B/W/External
Color
(Awb)/Color Value Adj
3D-Dnr
off/Low/Midel/High
Power(V)
DC12V
Size(mm)
72(W) X 41(H) X 41(L) mm
Installation
Formal/Flip/ (1/4" Screw Hole)
Specification
CE, FCC
Trademark
OEM
Origin
Shenzhen, China
HS Code
8525801390
Production Capacity
50, 00PCS/Year
Product Description
| Model No. | SV-LN321 |
| Image sensor | 1/1.8" CMOS Sensor/IMX385 |
| Total pixels(MP) | 1945 (H)x 1097 (V) = 2.13M Pixels |
| SDI output resolution | (720p/25/30/50/60@1080i50/60@1080p25/30/50/60) FPS |
| HDMIoutput resolution | (720p/25/30/50/60@1080i50/60@1080p25/30/50/60) FPS |
| HDMI version | 1.4a |
| Lens | 3.8-16mm / Manual Iris / Manual lens |
| Menu functions | Support bottom menu |
| Low illumination(LUX) | Color: 0.13 lux/ B/W: 0.013lux |
| explosure | BrightnessADJ/electronic shutter mode/sens-up ADJ/auto color gain |
| Day/night switch | auto(ICR)/color/B/W/External |
| color | (AWB)/color value adj |
| 3D-DNR | OFF/LOW/MIDEL/HIGH |
| image | sharpness/Garma/mirroring(left/right)/flip(up/down)/digital zoom/(ACE)/(DEFOG)/privacy zone |
| system | Protocol/output frame/video range/color mode/audio mode/Color bar/camera name/reset/language |
| Language | Chinise/English/Japanse/Korean |
| power(V) | DC12V± 10% |
| Working current(mA) | 140Ma±10% |
| Working temperature(ºC) | -40°C~ +80°C /0% ~ 90% RH |
| size(mm) | 72(W) x 41(H) x 41(L) mm |
| installation | Formal/Flip/ (1/4" screw hole) |
| weight(g) | 131g |
