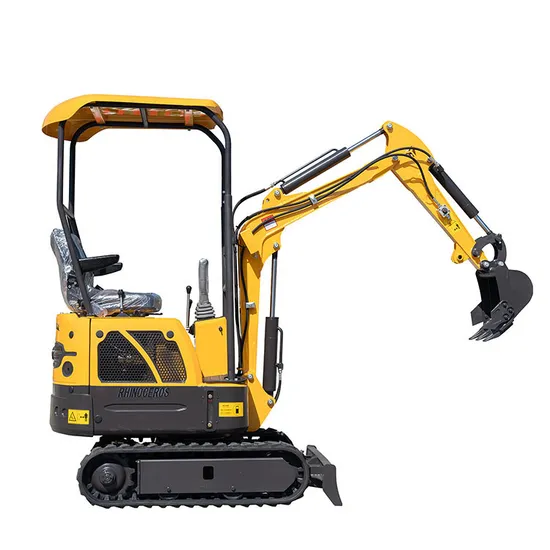

Rhinoceros 3 Ton Hydraulic Mini Crawler Digger CE EPA Euro 5 Emission

Product Description

Product Description
Description
This excavator is suitable for losing soil of vegetable greenhouse, campus greening of municipal departments,digging the hole for tree planting of Fruit-land Nurseries concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on.

Type	XN08
Total weight	880KG
Bucket capacity	0.025 M3
Overall height	1330mm
Overall length	2550mm
Maximum dig radius	2650mm
Dig radius at ground line	2400mm
Maximum dig depth	1400mm
Dump height	1750mm
Vertical straight wall dig depth	1320mm
Lift above Dozer	325mm
depth of dozer blade	175mm
Counter weight turning radius	733mm
Arm digging force	4.8kn
Bucket digging force	9.2kn
Engine model	Koop / changchai
Cooling	air-cooling
System relief pressure-Standard	16MPa

After-sale Service:
1. Our technicians will provide on-site service to customers in China. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.
2. Within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.
3. After the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.
Packaging & Shipping
FAQ
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6 units can be in a 20ft container, 12 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL,wooden box;if 4 unit or more than 4 units suggest used 20ft container.
If do not have trailer,the wooden box dimension is 2.8x1.12x1.4m ,about 4.3m3;if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.

Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
