Fabric Needle Punching Machine for Nonwoven

Product Description

Fabric Needle Punching Machine For Nonwoven
Needle punching machine
1.Usage and Features of Non woven Felt Making Machine
1. The needle punching machine unit consists of one simple tearing machine GM400,
one simple carding machine GM450 with chute feeder, 1 / 2 / 3 / 4 sets needle punching machine
with winder and cutter GMZ2600.
The necessary parts include 1set Fan motor, 3sets Main motors, 3sets Speed reducers and
1 set Electric control panel board.
2. The needle punching machine unit can make non woven fabric; It can convert fleeciness fiber or
cotton into needle punched cotton, such as sofa cushion, spring mattress, carpeting and blanket.
3. Working width adjustable; Thickness adjustable.

2. Advantages of Non woven Felt Making Machine
The machine adopts crankshaft balance oil tank, automatic circulaation and imbrications. with up
and down integrity, compact and unipue structure, convenient frequency ad well as its efficiency.
Width can be adjusted, speed adjustable, thickness can be adjusted, strong degree adjustable etc.

3. Main Technical Data of Non woven Felt Making Machine

whole production line of Non woven Felt Making Machine
Floor Space(L*W*H)	7000*4500*4000mm
Total Weight	3800kg
Matched Rated Power	4kw+7.5kw*3+1.5*3kw
Product width(Adjustable)	Max2.5m
Output	3-8m/min
Needle travel	35-45mm
Thickness	5-8 mm
GSM	300-500 g/m2
Opening Machine GM400(With motor & speed reducer)
Weight	500kg
Size(L*W*H)	2040*1500*1030mm
Roller Diameter	440mm wooden 400mm Iron
Carding Machine GM450(With motor & speed reducer)
Roller	Iron roller
Roller Diameter	450mm
Weight	1400kg(wooden roller)
Size(L*W*H)	2900*1100*1250mm
Chute feeder	2600*320*2450mm
Needle Machine with winder and cutter GMZ2600(With motor & speed reducer)
Weight	1800kg
Size(L*W*H)	3000*700*2300mm
Needle number	5000 / 6000pcs (According to user's requirement)
Needle board Chromed needle plate hole size:5mm(according to user requirement) Chromed needle plate

Note: we can design and manufacture as client's requirement.

4.Pictures

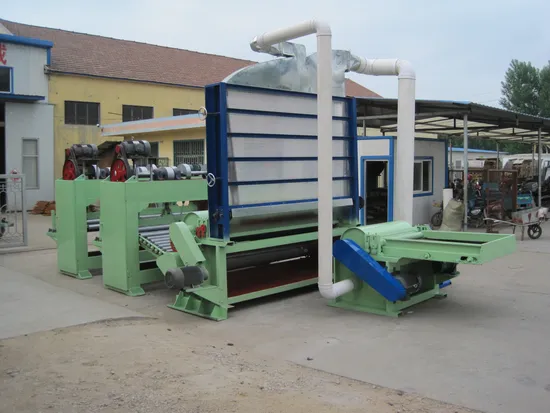

1 simple tearing machine(opening machine) + 1 simple carding machine + 2 punching machine
Products--non woven felt
