Fixed Beam and Fixed Column Gantry Machining Center Machine Tool. Titanium Aluminum Composite Structure Aero Engine Grind Machine

Fixed Beam and Fixed Column Gantry Machining Center Machine Tool. Titanium Aluminum Composite Structure Aero Engine Grind Machine

US$89,999.00-210,000.00 1 set (MOQ)

Basic Info.

Model NO.
GDGM-2015ANC
Type
Surface Grinding Machine
Processing Object
Thread
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Height
600mm
Column Width
1800mm
Max Loading Weight
6000kg
Controller System
Optional, Siemens/Fanuc/Mitsubishi
Max Length
2500
Max Width
1600
Mini Feed Size
0.005
Transport Package
Wooden or Steel Box
Specification
5.7*3.9m
Trademark
GooDa
Origin
China
HS Code
8459619000
Production Capacity
500sets/Year

Product Description

Let GOODA help you keeping quality at 100%!
Dongguan GooDa Machinery Manufacturing Co.,Ltd established in 2012, is the first national high-tech enterprise integrating R&D,manufacturing,sales and service of CNC milling machine tools in China.The company has manufacturing bases in Dongguan Changping,Huangjiang,Qishi and Jiangsu Kunshan, and offices in the United States,South Korea, Malaysia,Thailand,Vietnam and Brazil.At present, it is one of the largest manufacturer of CNC Duplex milling machines in the world.
GooDa Machinery focuses on the field of CNC duplex milling machine, and has maintained rapid development since its establishment. Its independent brands: GooDa machinery,YaGoo machinery and JJR machinery have become the most influential brands in the industry. The design and positioning of the product is guided by the customer's needs of users in different scales and fields, and realize personalized customization, so as to create the highest economic benefits for customers.
GOODA CNC Gantry Machining Center
MODLE : GDGM-2015ANC
Machine technical specific
Model:GDGM-2015ANC Unit Specification
Process Range X axis travel mm 2000
Y axis travel mm 1700
Z axis travel mm 800
Spindle nose to worktable surface mm 200~ 1000
Distance between two columns mm 1500
Worktable Table Size mm 2200×1300
MAX Loading weight kg 6500
T-Slot (Number/Width/Gap) - 7×22×170
Spindle Spindle Speed rpm 12000
Spindle Taper - BT40
Spindle Motor KW 11/15
Speed
Rapid Moving (X/Y/Z) m/min 24/24/20
Rapid Feed (X/Y/Z) m/min 10/10/10
Tool Magazine Tool Magazine Number pcs 24
Tool MAX Diameter/length/weight - Æ75mm/300mm/7kg
Tool MAX Diameter (Full/Empty) mm 75/150
Tool selection method - any/sequence
Time (tool-tool) S 1.8
Machine Accuracy Positioning (X/Y/Z) mm 0.02/0.02/0.015
Re-Positioning (X/Y/Z) mm 0.009/0.009/0.008
Others Air source L/min 280
Air pressure Bar 6~8
Total electrical capacity KVA 55
Water tank capacity L 400
Machine size mm 6000×3900×4500
Machine weight kg 21500
System FANUC SYSTEM OR Mitsubishi controller - Optional

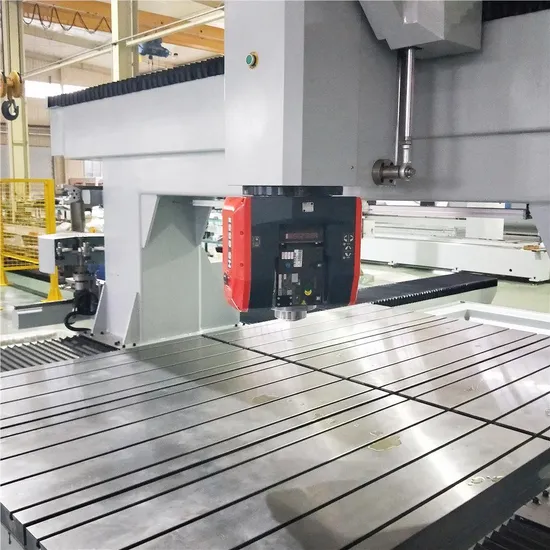

GDGM-2015ANC is a fixed beam and fixed column gantry machining center machine tool. It is developed based on the most popular, advanced and flexible machine tool design concepts in the world. It is suitable for aerospace, shipbuilding, power generation, military industry, heavy machinery, locomotives, machine tools, and textile machinery. , Printing machinery, automotive covering molds and other industries of various large-scale workpiece machining equipment
The Features The machine adopts the gantry structure of moving table. The bed is fixed, the worktable moves in the X direction on the bed; the ram moves in the Z direction on the sliding seat; the sliding seat and the ram move in the Y direction on the gantry beam; the X and Y axes adopt heavy-duty linear rails, Z The shaft is a plastic hard rail. The main shaft assembly is placed at the lower end of the ram; the whole machine has a reasonable layout, beautiful appearance and convenient operation.
Spindle box: We use high-speed BT50 spindle unit with center blowing.
Tool Magazine: We use disc magazine with high quality and stable functionality. (Optional)
Transmission: The three-axis motor and high-precision ball screw adopt a direct drive method. The ball screw is pre-tensioned and installed to improve transmission rigidity and positioning accuracy.
Specification
You can choose FANUC system or MITSUBISHI Controller as you like.
*Gooda will help you reduce setting time and reduce running cost,to increase efficiency.
{Workshop}
Main products:CNC duplex milling machine,CNC high speed sawing machine, CNC Vertical milling machine,CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine,CNC Planar Grinding machine,Plate flipping machine.The application scope of the products includes mold steel,moldbase, aluminum plate,die processing and other metal cutting.After years of research and development and innovation, the products are at the leading level in terms of processing accuracy,machine stabilitym,Ergonomic design and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold industry.
After years of unremitting efforts, the company has obtained dozens of patent technology and software coyright, and has successively passed the ISO 9001 quality management system certification of EU TUV certification body,EU CE product safety certification, intellectual property management system certification,national high-tech enterpise evaluation and other honors.In order to maintain the leading edge of product technology,the company has actively carried out school enterprise cooperation to continuously promote the development of the enterprise while recruiting excellent talents in the industry.
Benefiting from the company's innovation and R&D advantages,the company has developed rapidly in just a few years. The existing R&D and production sites have restricted the company's subsequent development, and the space for capacity improvement is limited. For the company's sustainable development in the future, in 2018, GooDa invested heavily in the construction of GooDa machinery's normal headquarters Indusrial Park to support the development of the company's high-end CNC machine tool equipment project, Greatly enhance the company's CNC inteligent equipment capacit.
{CERTIFICATE}
Manufacturer of CNC duplex milling machines and other series of professional CNC machine tools !!

{EXHIBITION }
Every feature,function and configuration of our machinery are made for our customer
