Ns-Wy02 Displacement Sensor/Lvdt/ Linear Position Sensor/ Position Measurement/Injection Machine/Digital Output/Output 4~20mA/Ce/RoHS

Ns-Wy02 Displacement Sensor/Lvdt/ Linear Position Sensor/ Position Measurement/Injection Machine/Digital Output/Output 4~20mA/Ce/RoHS

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
NS-WY02
Movement
Linear Displacement
Production Process
Integration
Material
Aluminium Alloy
Accuracy Grade
0.1G
IP Rating
IP40
Certification
CE
Customized
Customized
Specific
Build-in Spring
Transport Package
Carton Packing
Specification
CE, RoHs
Trademark
NS
Origin
China
HS Code
9026209090
Production Capacity
100000 Pieces Per Month

Product Description


Overview:

Place of Origin Shanghai, China Brand Name NS Model Number NS-WY02
Type of Sensor Displacement Sensor Stroke Length 0~150mm Build-in Spring Output Signal Resistance, 0~5V, 0~10V, 4-20mA, RS485 etc.
Accuracy ±0.05%F.S Electrical Connection Flying lead or customized Mechanical Connection Bolt and Nut
Power Supply 24 Vdc
(connect to amplifier)
Operational Mode Unidirectional, Bidirectional Measuring Medium vertical displacment from solid
Material Aluminium Alloy Certificate Obtain RoHs,CE, ISO9001 certification Lead Time 2~3 weeks

Why you choose and trust TM Sensor?
You benefits from:
♦ Our P&D Laboratories: We have two P&D laboratories in China to develop products under the severe environment, we can conduct in-depth performance and cost-effective products development by the P&D labs.
♦ Factory Experience : More than 16 years of experience in manufacturing sensor.
♦ Supply Ability : At least 112,500 pcs sensor product per Month.
♦ Supply Area : All over the world, about 70 countries.
♦ Primary Customers : TYCO, Honeywell, Carrier, LG...
♦ Certificate : CE, RoHs, ISO9001.
♦ OEM/ODM : Accept, we are able to offer a total solution for your industrial monitoring system.
Maintenace and After-Service:
♦ Prompt response upon customer's feedback within 24 hours: A/S engineer team will be one-on-one service for you to exclude obstacles during using sensors.
♦ 12 months' warranty period: free sensor maintenance, except artificial damage, we guarantee bear all the freight back and forth.
♦ Product maintenance: TM guarantee maintenance the whole life of the sensors.
How to order:
♦ In order to recommend you the most suitable sensor and make an accurate
quotation,please provide the following information and send it to our sales when you are going to make an inquiry,
for example, now you want to buy a displacement sensor, you already have specification for
(1) Stroke Length: 10mm
(2) Power supply: 24Vdc
(3) Output signal: 4~20mA
(4) Operational Mode:Unidirectional
(5) Accuracy: ±0.10% F.S.
Check with our below ordering model guide, you have the model NS-WY02-10mm10LI24.
send us this code, you will be received price and lead time instantly.

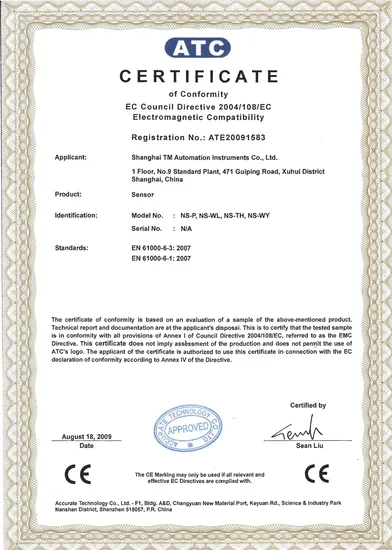

Official Certificates:
Production Facility
For more information, please refer to our website:http://tmsensor.en.made-in-china.com or contact me.
