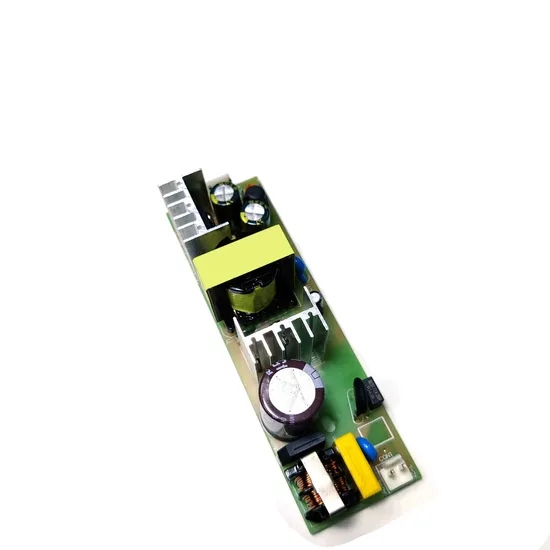

Customizable PCB Board AC 100-240V to DC 3.3V 5V 6V 9V 12V 13.8V 24V 36V 48V 1A 2A 3A 24V2.5A Switching Power Supply 60W Manufacturers Open Frame Power Supply
| US$4.00-5.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
GF60-1B-DE
Driving Method
LED Constant Current
Certification
TUV, CE, RoHS, ISO9001, CCC
Power Supply Mode
Constant Voltage Source
Modulation System
No
In-Out
Lifting Pressure Type
Power Supply Voltage
AC85-265
Pack Sealing Size
No
Brand
Gofern
Transport Package
Carton
Specification
PCB
Trademark
GOFERN
Origin
Shenzhen
HS Code
8504401400
Production Capacity
100000pieces/Month
Product Description
Customizable PCB Board AC 100-240V to DC 3.3V 5V 6V 9V 12V 13.8V 24V 36V 48V 1A 2A 3A 24V2.5A Switching Power Supply 60W Manufacturers Open Frame Power Supply| Low power consumption, high reliability |
| Protections: Short circuit/Over load/Over voltage |
| Cooling by free air convection |
| 100% full loading burn-in test |
| 1 years warranty |
| AC 90-264V INPUT |
| WITH CE APPROVAL |
| Dimension:145*46*40(L"W"H") |
| MODEL | GF60-1B-DE | |||||
| OUTPUT | DC VOLTAGE | 24V | ||||
| OUTPUT POWER | 60W | |||||
| CURRENT RANGE | 0-2.5A | |||||
| RIPPLE & NOISE(max.) | 120mVp-p | |||||
| VOLTAGE ADJ. RANGE | ±10% | |||||
| LINE REGULATION | ±1.0% | |||||
| LOAD REGULATION | ±2.0% | |||||
| VOLTAGE TOLERANCE | ±2.0% | |||||
| CONNECTION TERMINAL | DC+; DC- | |||||
| INPUT | VOLTAGE RANGE | 110 ~ 264VAC | ||||
| AC CURRENT(Typ.) | 0.35A/ 226VAC 0.18A/ 240VAC | |||||
| CONNECTION TERMINAL | AC-L, AC-N | |||||
| PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hicuup shut down,auto recovery | ||||
| OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protecion | |||||
| Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||||||
| SHORT CIRCUIT | voltage off and reset input for recovers | |||||
| ENVIRONMENT | WORKING TEMP. | -0°C ~ +45°C (Refer to output load derating curve) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP.,HUMIDITY | -20°C ~ +85°C 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.05%/°C | |||||
| COOLING METHOD | BY FREE AIR CONVECTION | |||||
| SAFTY | SAFTY STANDARDS | CE EN60950-1 Approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3.0KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |||||
| EMI CONDUCTION | Compliance to EN55022 | |||||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||||
| EMS IMMUNITY | Compliance to EN55024 | |||||
| OTHERS | DIMENSION | L145*W46*H40MM | ||||
| WEIGHT | 0.17Kg,100PCS/Carton | |||||
| HEAT SINK | Silver aluminium: 25*30*28MM | |||||
