Basic Info.
Keywords
Embroidry Machine
Embroidery Area
400*500mm (15.7"*19.7")
Key Selling Points
Automatic
Machinery Test Report
Provided
Overall Dimensions
1440*1040*1040mm
Product Name
2 Head Cap Embroidery Machine
Product Type
Two Head Mixed Embroidery Machine
Production Capacity
10 Set/Sets Per Month
Product Description
Product Description Specification
Machine Name | DSC-W902/DSC-W1202/DSC-W1502 |
Heads | 2 |
Needles per head | 9 or 12 or 15 |
Maximum speed in stitches per minute (SPM) | Max 1000SPM |
Maximum embroidery area | 400*500mm (15.7"*19.7") |
Memory capacity | 20 million stitches or 200 designs |
Control panel | 10" LCD display with 16 language |
Safety features | Emergency stop button, heat dissipation fan |
Use | Flatbed, cap, finished garments |
Number of hoops | 21 |
Attachments | 4pcs cap rings, 2pcs cap driver, 1pcs hoop station |
Weight | 335kg |
Design transfer options | Ethernet connection, USB |
Additional features | 270-degree wide angle cap system |
Packing Size | 1440*1040*1040mm |
Voltage | 100-250V |
Power | 400W |

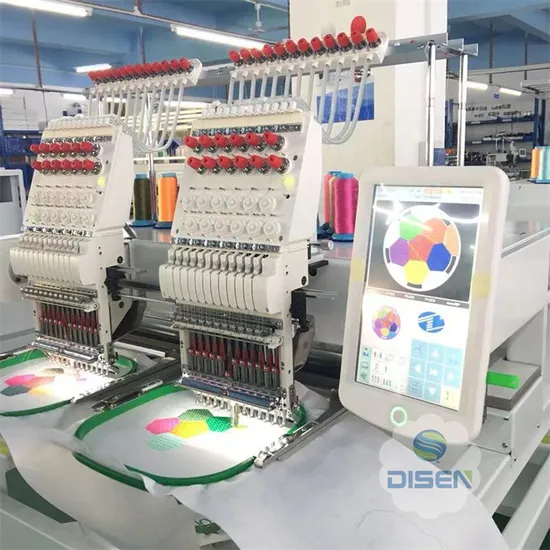

MODEL: 9/12/15 needle 2 head cap embroidery machine
Features 1,Automatic identification of embroidery designs in photo formats, such as JPG, JPEG, PNG and more. 2,10" LCD touch screen with easy operations and 16 languages: Chinese, English, French, Spanish, Portuguese, Turkish, German, Dutch, Thai, Arabic,Romania, Italian, Vietnamese, Hebreo, Polish, etc. 3,Large memory capacity: 20 million stitches or 200 designs. 4,Machine reads multiple design formats such as DST, DSB and more. 5,Thread break detection system. 6,Automatic needle threading and thread trimming. 7,270° wide angle cap frame. 8,Automatic color change with a maximum change orders of 200 times. 9,Emergency stop button for timely troubleshooting. 10,USB input or direct transmission from PC via LAN port. 11,Quick changes of embroidery hoops of multiple sizes. 12,Removeable embroidery table. 13,Optional swivel casters for easy motion. Enterprise Show
