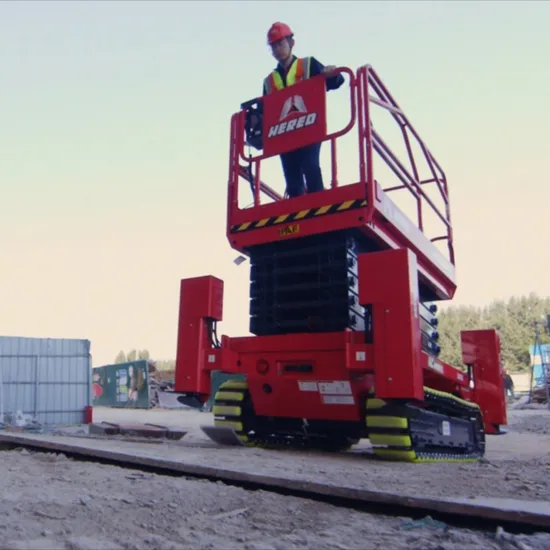

Hered Crawler Mobile Scissor Lift 14m Electric All Terrain Scissor Lift Platform
| US$15,500.00-16,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HC1216E-R
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001, ANSI
Lifting
Electric
Platform Capacity
320kg
Extension Platform
0.9m
Extension Capacity
113kg
Usage
Outdoor
Transport Package
High Quality Paper Boxes with Stretch Film
Specification
2.83m x 1.6m x 2.63m
Trademark
HERED
Origin
China
HS Code
84289090
Production Capacity
20, 000 Units / Year
Packaging & Delivery
Package Size
283.00cm * 160.00cm * 263.00cm
Package Gross Weight
3660.000kg
Product Description
Online consultation to get the lowest price1. Strong off-road performance.
2. Rough terrain tyre, large ground clearance, stronger passability.
3. Engine drive, more powerful.
| MODEL | HC1216E-R |
| A-Max. Platform Height(In/out) | 11.8m/11.8m |
| Max. Working Height(In/out) | 13.8m/13.8m |
| B-Platform Length | 2.26m |
| C-Platform Width | 1.12m |
| Extension Size | 0.9m |
| D-Heights (Rails Up) | 2.63m |
| Height (Rails Down) | 2.03m |
| E-Overall Width with Outriggers | 2.83m |
| F-Overall Width | 1.6m |
| G- Ground Clearance | 150mm |
| PERFORMANCE | |
| Platform Capacity | 320kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 2/2 |
| Max.Wind Speed | 12.5m/s |
| Drive Speed (Stowed) | 4km/h |
| Turning Radius | Rotate in Place |
| Up/Down Time | 65/60s |
| Gradeability | 0.4 |
| Max. Slope | / |
| Leveling angle of the legs | 12°/5° |
| Drive | Rear Crawler |
| Crawler (mm) | 230mmX90mmX53 |
| POWER | |
| Batteries (V/Ah) | 8X6V/200Ah |
| Charger | 100-240VAC/13.5A |
| WEIGHT | |
| Weight | 3660kg |
