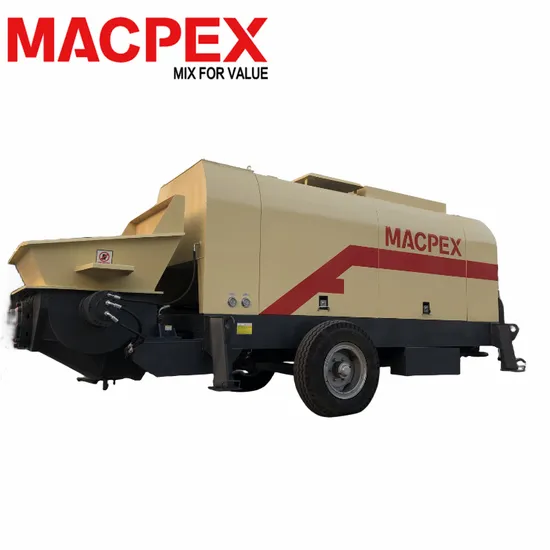

Introducing the MACPEX Putzmeister Concrete Pump for Efficient Concrete Placement
Are you ready to take your construction projects to new heights? Look no further than the MACPEX Putzmeister Concrete Pump! This high-quality and reliable concrete pumping equipment is designed to make your concrete placement tasks efficient and hassle-free.
Product Features:
Electrical System: The entire machine is PLC programmable and controlled by a computer, ensuring optimized design and simple operation. Plus, it comes with a wireless remote control for easy remote operation.
Pumping System: With dual cylinder full hydraulic pumping, this concrete pump improves work efficiency and reduces failure rate.
S-Pipe Distribution Valve: Equipped with a floating wear-resistant ring, this patented valve automatically compensates for wear, ensuring good sealing and a simple and reliable structure. It improves work efficiency and reduces maintenance costs.
Reversing System: The electric and hydraulic control for reversing provides sensitive response and good stability.
High Outlet Pressure: This concrete pump can reach horizontal conveying distances of 400-500 meters and vertical conveying distances of 150-180 meters, making it perfect for high-rise buildings and long-distance construction.
Cooling System: The hydraulic oil cooling system features high cooling power, ensuring that the working oil temperature stays below 60 ºC. No need for water sources, making construction convenient and equipment easy to move.
Hydraulic Oil Circuit: With an open hydraulic system, the reversing speed is improved, resulting in higher efficiency.
Anti Pump Function: This concrete pump has an anti-pump function with automatic pressure protection, reducing pipeline blockage and improving work efficiency. It also extends the service life of pipelines.
Hydraulic Oil Tank: The large capacity liquid accumulation hydraulic oil tank ensures smooth and uninterrupted operation.
With the MACPEX Putzmeister Concrete Pump, you can achieve precise and efficient concrete placement for your construction projects. Whether you're working on high-rise buildings or long-distance construction, this trailer-mounted concrete pump is the perfect solution. Its advanced technology and durable construction make it a reliable choice for any industrial construction site.
Don't settle for anything less than the best. Choose the MACPEX Putzmeister Concrete Pump for efficient and reliable concrete placement. Get yours today and experience the difference!
Detailed Photos
Product Parameters

Diesel Concrete pump		MD20-08-40R	MD30-10-48R	MD40-11-60R	MD50-13-66R	MD60-13-90R	MD60-16-120R	MD80-13-120R	MD80-16-129R	MD90-16-176R
Theo conveying capacity (m3/h)	high pressure	12	16	19	22	29	41	48	45	56
	low pressure	21	30	43	50	58	62	80	76	94
Theo conveying pressure (MPa)	high pressure	8	9.5	11	13	13	16	13	16	16
	low pressure	4.2	4.5	5.3	6.2	6.4	9.2	6.4	9.2	9.2
Conveying height (m)	level	350	400	450	550	550	650	550	650	650
	vertical	110	130	150	180	180	220	180	220	220
Rated power of the main power system (Kw)		39.6	56	66	82	112	120	120	129	176
Diesel engine fuel consumption (L/h)		5.8	8.3	10	12.5	15.8	19.5	19.5	21	28
Distribution valve form		S valve	S valve	S valve	S valve	S valve	S valve	S valve	S valve	S valve
Distribution valve form		20/25	25/30	25/30/40	25/30/40	40/50	40/50	40/50	40/50	40/50
Concrete slump (mm)		100-230	100-230	100-230	100-230	100-230	100-230	100-230	100-230	100-230
Power type		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Loading volume (m3)		0.4	0.4	0.5	0.5	0.6	0.6	0.6	0.6	0.6
Loading height (mm)		1200	1180	1300	1350	1400	1400	1400	1400	1400
Weight		2500	3100	3360	4000	4800	6000	6600	6600	6800
Dimensions(mm)		4300x1670x1680	4300x1670x1680	4850x1670x2070	5000x1670x2070	5465X1850X1850	6500x2160x2600	6500x2230x2600	6500x2230x2600	6500x2230x2600

Electrical Concrete pump		ME15-13-30		ME30-08-37		ME50-13-55		ME60-16-90		ME80-16-110
Theo conveying capacity (m3/h)	high pressure	7		13		22		37		47.5
	low pressure	15		26		46		63		78
Theo conveying pressure (MPa)	high pressure	13		9.5		13		16		16
	low pressure	6		4.5		6.2		9.2		9.2
Conveying height (m)	level	550		400		550		650		650
	vertical	180		130		180		220		220
Rated power of the main power system (Kw)		30		37		55		90		110
Distribution valve form		S valve		S valve		S valve		S valve		S valve
Distribution valve form		20/25		25/30		25/30/40		40/50		40/50
Concrete slump (mm)		100-230		100-230		100-230		100-230		100-230
Power type		Motor		Motor		Motor		Motor		Motor
Loading volume (m3)		0.34		0.4		0.5		0.6		0.6
Loading height (mm)		1050		1180		1350		1400		1400
Weight		1480		2200		3200		5200		5600
Dimensions(mm)		3380×1270×1450		3770×1420×1620		4300×1670×1680		6200×1882×1965		6200×1882×1965
